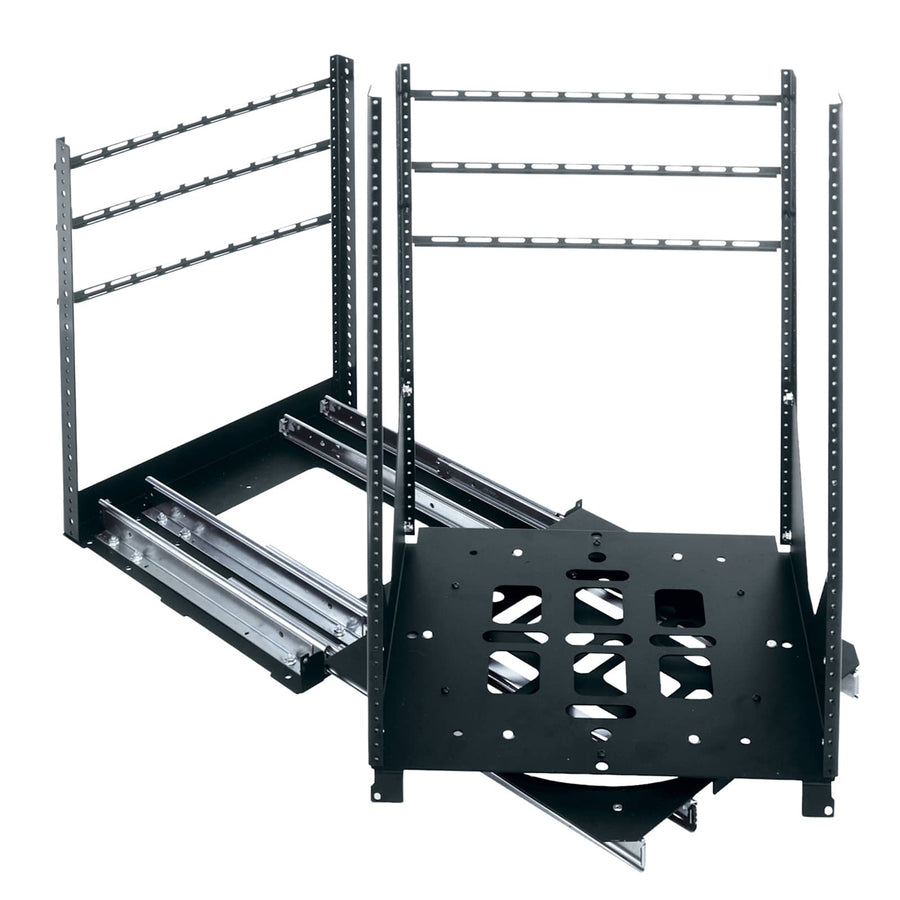

SRSR Series Slide Out Rotating Rail System Rack - SRSR-X-30
30 RU slide out rotating rack system for easy rear access in cabinets and millwork, 200 lbs capacity
The Middle Atlantic SRSR-X-30 provides essential rear access to equipment connections within millwork, cabinets, or flush in-wall installations. This 30 RU rack system is designed to extend and rotate 90º in either direction, a critical feature for managing equipment in compact or restricted spaces. The unit features a 23.14" (58.8 cm) total depth with a 21.25" (54 cm) usable depth, ensuring a high degree of integration for various hardware components. It supports a weight capacity of 200 lbs (90.7 kg) and utilizes standard 10-32 threaded rackrails with marked spaces for precision alignment. The self-centering mounting base simplifies the installation process within cabinet openings, while the removable rack frame allows for easier integration in the shop before final on-site mounting. For improved cable management, the rear rackrail works in conjunction with a rear cable support. This TAA compliant system locks in the extended position to facilitate easier equipment integration and serviceability at 0º, 60º, and 90º angles.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 23.14 in (58.8 cm) |
| Height | 55.5 in (141 cm) |
| Rack Units | 30 RU |
| Usable Depth | 21.25 in (54 cm) |
| Usable Height | 52.5 in (133.4 cm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Width | 19.13 in (48.6 cm) |
| Color | Black |
All other specifications 7
| Federal Ops Country of Origin | USA |
| Finish | Flat Powder Coat |
| Rack Rail Type | 10-32 |
| Rack Type | In-Cabinet |
| TAA Compliant | YesYes |
| UPC | 656747071942 |
| Certifications | TAA |
