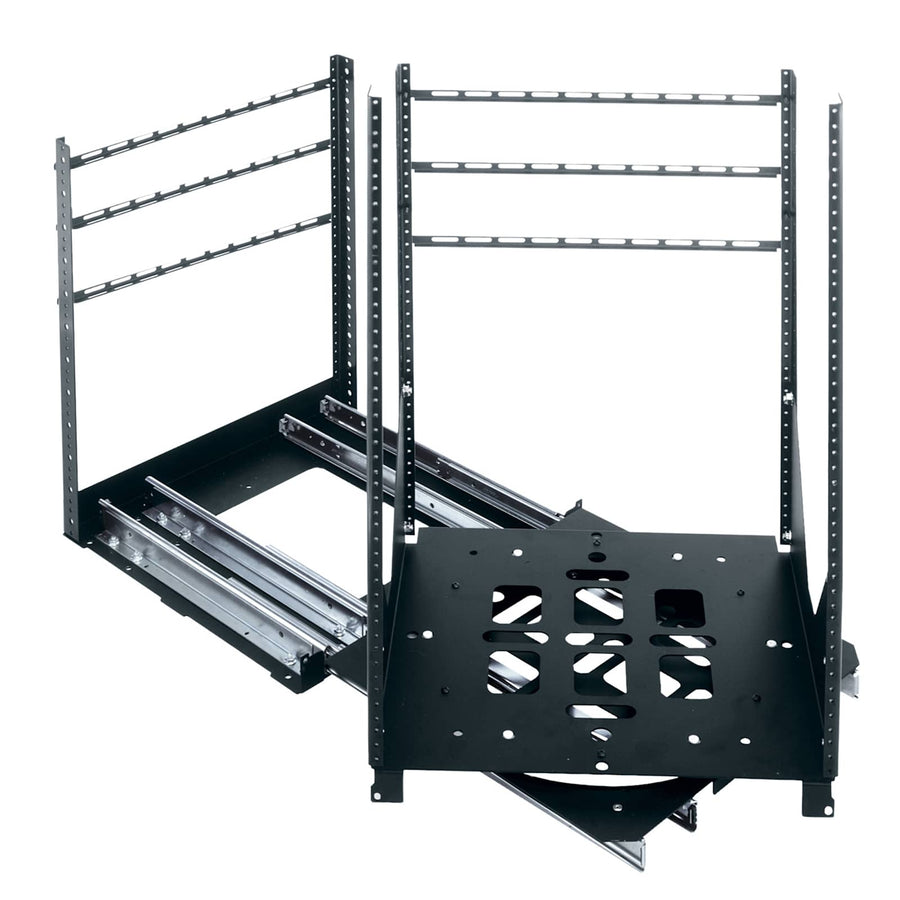

SRSR Series Slide Out Rotating Rail System Rack - SRSR-X-20
20 RU slide-out rotating rack system with 200 lbs capacity and 90-degree rotation for easy rear access
The Middle Atlantic SRSR-X-20 is a 20 RU slide-out rotating rack system designed to facilitate easy rear access to equipment connections within millwork, cabinets, and flush in-wall installations. This in-cabinet rack type provides a 21.25 in (54 cm) usable depth and a 35 in (88.9 cm) usable height, making it a specialized solution for integrated environments where space is limited. The equipment bay can extend and rotate up to 90 degrees in either direction, with secure locking at 0, 60, and 90 degrees to simplify the installation and servicing of components. The SRSR-X-20 features a self-centering mounting base to assist with alignment within cabinet openings and includes a removable rack frame for easier in-shop integration. For cable management, the system utilizes a rear rackrail alongside a dedicated rear cable support. This TAA compliant system is built with a black flat powder coat finish and uses standard 10-32 threaded rackrails with marked spaces.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 23.14 in (58.8 cm) |
| Height | 38 in (96.5 cm) |
| Rack Units | 20 RU |
| Shipping Weight | 43 lbs (19.5 kg) |
| Usable Depth | 21.25 in (54 cm) |
| Usable Height | 35 in (88.9 cm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Width | 19.13 in (48.6 cm) |
All other specifications 8
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Flat Powder Coat |
| Rack Rail Type | 10-32 |
| Rack Type | In-Cabinet |
| TAA Compliant | YesYes |
| UPC | 656747047404 |
| Certifications | TAA |
Resources
You'll need these with it
1 RU Mounting Rackshelf
UTR1$58.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
2 RU Brush Grommet Panel
BR2$106.20
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
Questions about this part
Will the SRSR-X-20 fit in my cabinet installation?
The SRSR-X-20 requires an opening that accommodates its 23.14 in (58.8 cm) depth and 38 in (96.5 cm) height. Its in-cabinet design is optimized for millwork and flush in-wall setups.
How much weight can this rotating rack support?
The SRSR-X-20 has a total weight capacity of 200 lbs (90.7 kg). This remains consistent even when the rack is extended and rotated for servicing.
What is the difference between the SRSR-X-20 and other SRSR series racks?
The SRSR-X-20 is specifically the 20 RU version of the SRSR series; other versions in this series offer different rack unit counts for various space requirements.
Does this rack include any required accessories for installation?
The SRSR-X-20 is a rack system; additional components like the WUSS20-5 Wide Unit Shelf System or RLM series power modules are sold separately as compatible accessories.
Is the SRSR-X-20 TAA compliant?
Yes, the SRSR-X-20 is TAA compliant and manufactured in the USA.
