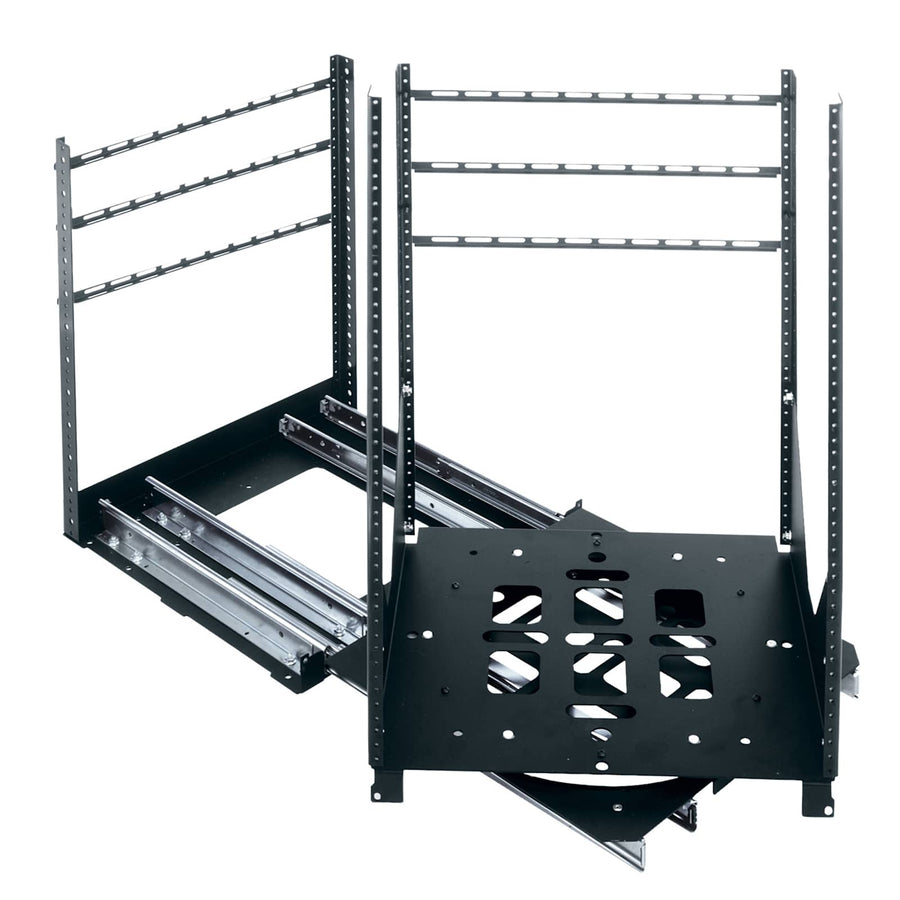

SRSR Series Slide Out Rotating Rail System Rack - SRSR-X-18
18 RU slide-out rotating rack system with 200 lbs capacity, providing 90-degree rotation for rear equipment access
The Middle Atlantic SRSR-X-18 provides essential rear access to equipment connections within millwork, cabinets, and flush in-wall installations. This 18 RU rotating rack system is designed to solve the challenge of servicing equipment tucked into tight spaces by allowing the bay to extend and rotate up to 90 degrees in either direction. The system features a self-centering mounting base that simplifies alignment within a cabinet opening during the initial installation. To assist with integration, the removable rack frame allows for in-shop assembly before the unit is moved to the job site. Once installed, the equipment bay can be locked at 0, 60, or 90 degrees to facilitate easier installation and maintenance. It includes standard front and rear 10-32 threaded rackrails with marked spaces and a rear cable support designed to work with the rear rackrail for effective cable management. This unit is TAA compliant and features a black flat powder coat finish.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 23.14 in (58.8 cm) |
| Height | 34.5 in (87.6 cm) |
| Rack Units | 18 RU |
| Shipping Weight | 42 lbs (19.1 kg) |
| Usable Depth | 21.25 in (54 cm) |
| Usable Height | 31.5 in (80 cm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Width | 19.13 in (48.6 cm) |
All other specifications 8
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Flat Powder Coat |
| Rack Rail Type | 10-32 |
| Rack Type | In-Cabinet |
| TAA Compliant | YesYes |
| UPC | 656747047381 |
| Certifications | TAA |
Resources
You'll need these with it
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection - 20 ft Cord
PD-915RC-20$264.60
1 RU BlowerPanel, 100 CFM, 32dB, Anodized & 220-240VAC
IQBP-2A$620.10
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
40 CFM Quiet-Cool Cabinet Cooler
CAB-COOL-2$328.50
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60

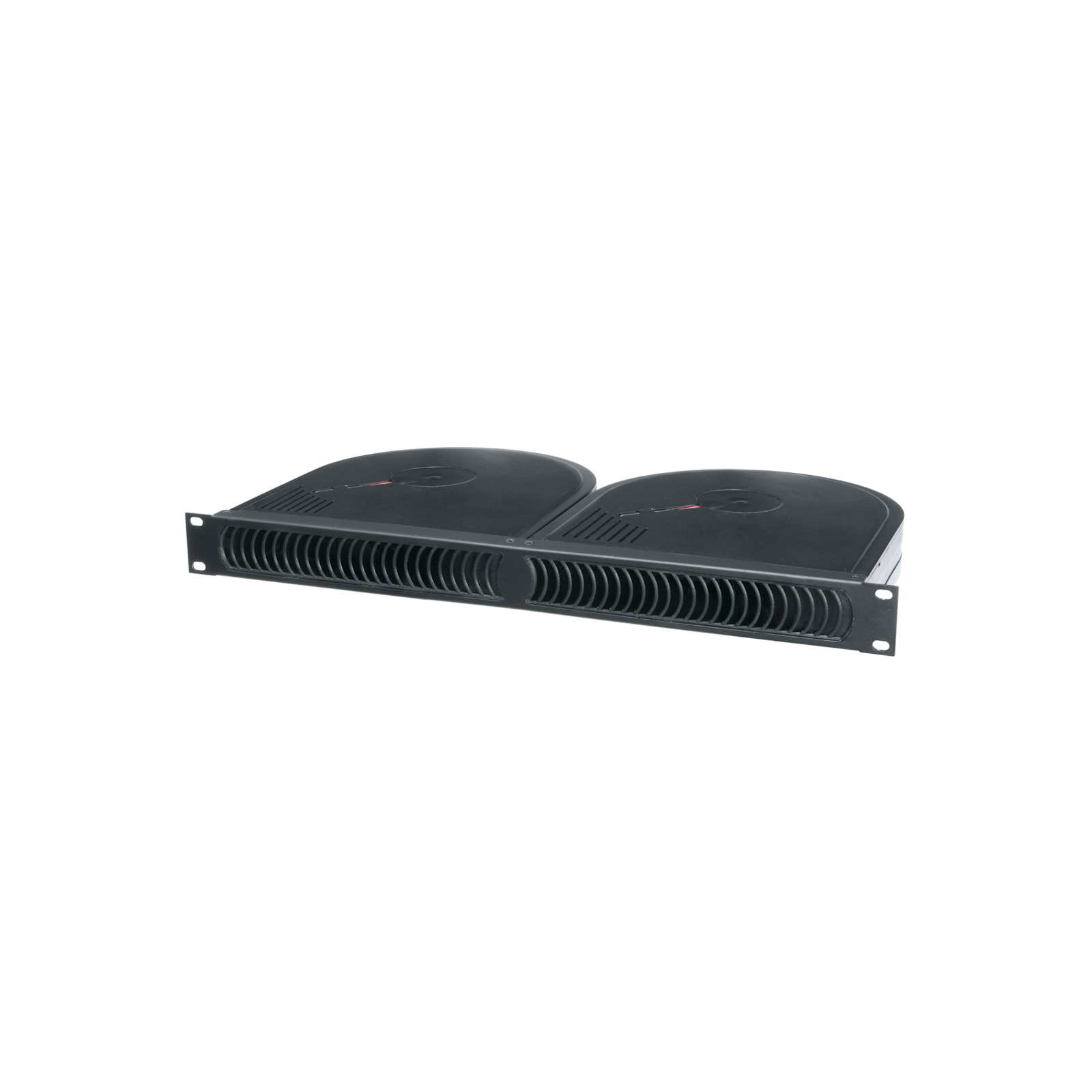

1 RU BlowerPanel, 100 CFM, 32dB &220-240VAC
IQBP-2$620.10
100 CFM Fan Panel, 27dB, 220 - 240VAC
IUQFP-4$630.90
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
Questions about this part
Will the SRSR-X-18 fit in my cabinet or millwork installation?
Yes, this in-cabinet rack type is designed for use in millwork, cabinets, and flush in-wall applications. It provides a usable height of 31.5 in (80 cm) and a usable depth of 21.25 in (54 cm).
How much weight can this 18 RU rack support?
The SRSR-X-18 has a total weight capacity of 200 lbs (90.7 kg) while providing rear access to equipment connections.
How do I access the rear of my equipment once it is installed?
The equipment bay rotates up to 90 degrees in either direction and can be locked at 0, 60, or 90 degrees to facilitate servicing and installation.
What accessories are compatible with the SRSR-X-18?
Compatible items include various power solutions like the PD-915RC-20 and UPS-SRBP-500, as well as cooling options like the CAB-COOL-2 or IQBP-2 blower panels.
Is the SRSR-X-18 TAA compliant for government contracts?
Yes, this product is TAA compliant and is manufactured in the USA.
