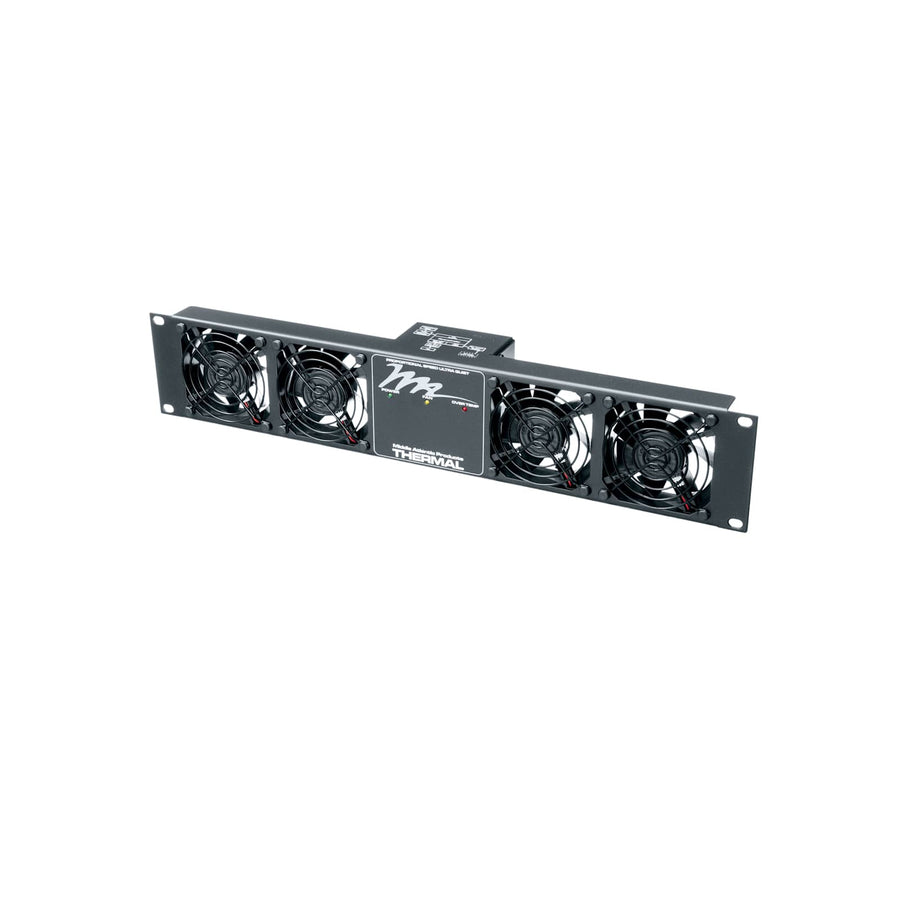

100 CFM Fan Panel, 27dB, 220 - 240VAC
2 RU active cooling panel providing 100 CFM at 27 dB with intelligent thermostatic proportional control for 220-240VAC input
The IUQFP-4 is a 2 RU active cooling solution from the Middle Atlantic UQFP Ultra Quiet Fan Panel series designed for environments where noise must be minimized, such as boardrooms, offices, or classrooms. This 19 in (48.3 cm) wide panel provides 100 CFM of cooling capacity while maintaining a noise level of 27 dB. An on-board digital processor uses an external sensor to monitor rack temperature, employing intelligent thermostatic proportional control to vary the fan speed via 5 VDC. This ensures that fan speed adjusts based on the specific thermal needs of the enclosure to maintain ultra quiet operation. The system provides both local and remote notification for overtemperature events and fan faults, which can be sent to an external control system or alarm device. This IUQFP-4 model is designed for international use with a 220-240 VAC input voltage and features a brushed and anodized finish.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 220-240 V |
| CFM | 100 |
| Depth | 3.4 in (8.6 cm) |
| Height | 3.5 in (8.9 cm) |
| Rack Units | 2 RU |
| Shipping Weight | 4.8 lbs (2.2 kg) |
| Volts DC | 5 VDC |
| Width | 19 in (48.3 cm) |
All other specifications 9
| Available Internationally | Yes |
| Component Type | Active |
| Display | No |
| Finish | Brushed and Anodized |
| Manufacturer | Middle Atlantic |
| Mounting Points | 2 |
| Power Type | DC |
| Thermistor | No |
| UPC | 656747098284 |
Resources
Questions about this part
Will this fan panel work with 120V power?
No, the IUQFP-4 requires a 220-240 VAC input voltage for operation.
How does the fan control the cooling speed?
The panel uses an on-board digital processor and an external sensor to provide intelligent thermostatic proportional control, varying the 5 VDC fan speed based on the enclosure temperature.
How can I monitor if the fan fails or the rack gets too hot?
The system provides local and remote notification for both overtemperature and fan faults, which can be integrated with an external alarm device or control system.
What is the noise level during operation?
This panel is rated for 100 CFM of cooling at 27 dB, making it suitable for noise-sensitive areas like boardrooms or houses of worship.
What documents are available for submittals?
Installers can access the UQFP Series Ultra Quiet Fan Panels A&E Specification Sheet, CAD technical drawings, and 3D CAD drawings via the Resources tab.
