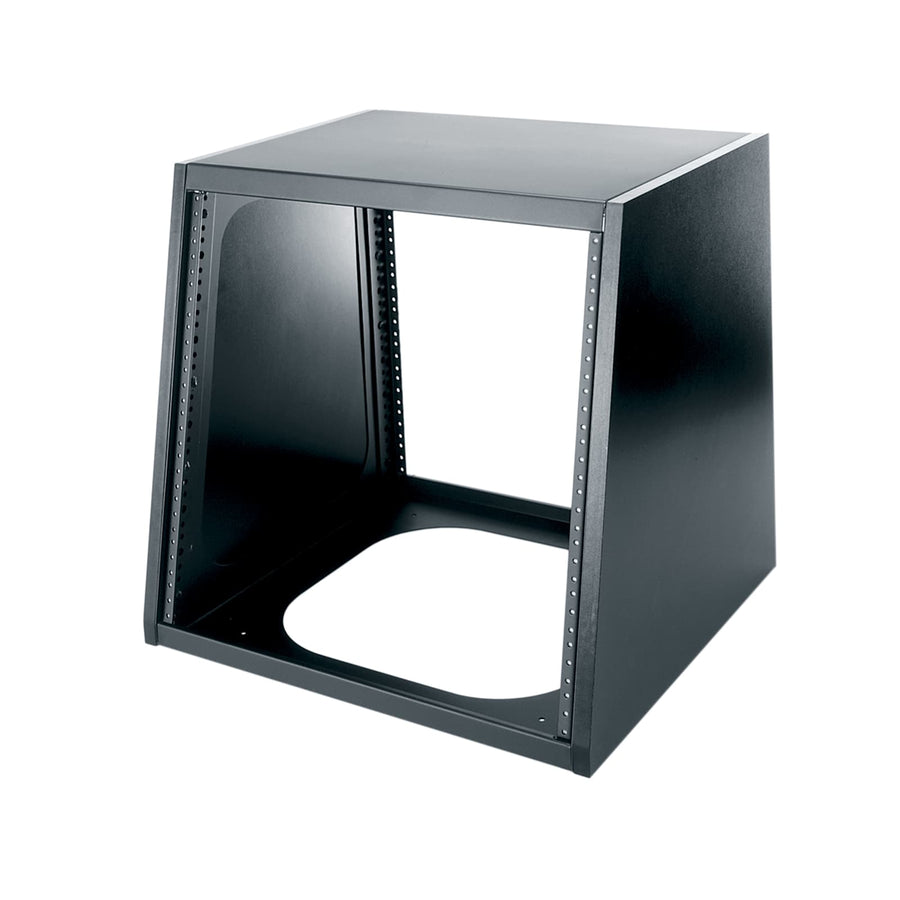

Slim 2 Series Sloped Desktop Rack - 2-10
10 RU sloped desktop rack with black laminate side panels, 18 in (45.7 cm) depth, and TAA compliance
The 10-FEB is a 10 RU sloped desktop rack from the Slim 2 Series designed for efficient equipment organization on desktops. This unit ships fully assembled with a sturdy, welded black steel open frame. To facilitate easier equipment viewing, the rack features a gently sloped rack face. The design includes removable black laminate side panels and includes rubber feet for surface protection. For wiring management, the open sides and bottom allow for quick wire passage. The front and rear heavy-gauge, 10-32 threaded rackrails are standard, providing secure mounting for rackmount hardware. This TAA compliant rack is manufactured in the USA and is part of a series that offers different rack unit and length options. The usable height within the frame is 17.5 in (44.5 cm) and the usable depth is 15.95 in (40.5 cm). The overall product dimensions are 20.5 in (52.1 cm) wide by 19.38 in (49.2 cm) high and 18 in (45.7 cm) deep.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 18 in (45.7 cm) |
| Height | 19.38 in (49.2 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 30 lbs (13.6 kg) |
| Rack Units | 10 RU |
| Shipping Weight | 40.35 lbs (18.3 kg) |
| Usable Depth | 15.95 in (40.5 cm) |
| Usable Height | 17.5 in (44.5 cm) |
All other specifications 10
| Width | 20.5 in (52.1 cm) |
| Federal Ops Country of Origin | USA |
| Finish | Black Wood Grain |
| Gangable | No |
| Material | Metal |
| Rack Rail Type | 10-32 |
| Rack Type | DesktopKnockdown |
| TAA Compliant | Yes |
| UPC | 656747000331 |
| Certifications | TAA |
Resources
You'll need these with it
1 RU Mounting Rackshelf
UTR1$58.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
2 RU Utility Rackshelf, 15.4 Inches Deep, Vented
U2V$96.30
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
4 RU Flanged Blank Rack Panel, Wrinkled
WSB4$41.40
3 RU Flanged Blank Rack Panel, Wrinkled
WSB3$40.50
Questions about this part
Will this rack fit my 10 RU equipment?
Yes, the 10-FEB provides 10 RU of space with a usable height of 17.5 in (44.5 cm) for your rackmount components.
What are the mounting requirements for equipment in this rack?
The 10-FEB features standard fixed front and rear 10-32 threaded rackrails for secure mounting of your hardware.
Can I mount shelves or power modules in this rack?
Yes, this rack is compatible with various accessories including the UTR1 1 RU Mounting Rackshelf, the U2V 2 RU Vented Rackshelf, and multiple MPR Power Modules.
How is cable management handled in the Slim 2 Series rack?
The open sides and bottom of the frame are designed to allow for quick and easy wire passage during installation.
Is this rack TAA compliant?
Yes, the 10-FEB is TAA compliant and is produced in the USA.
