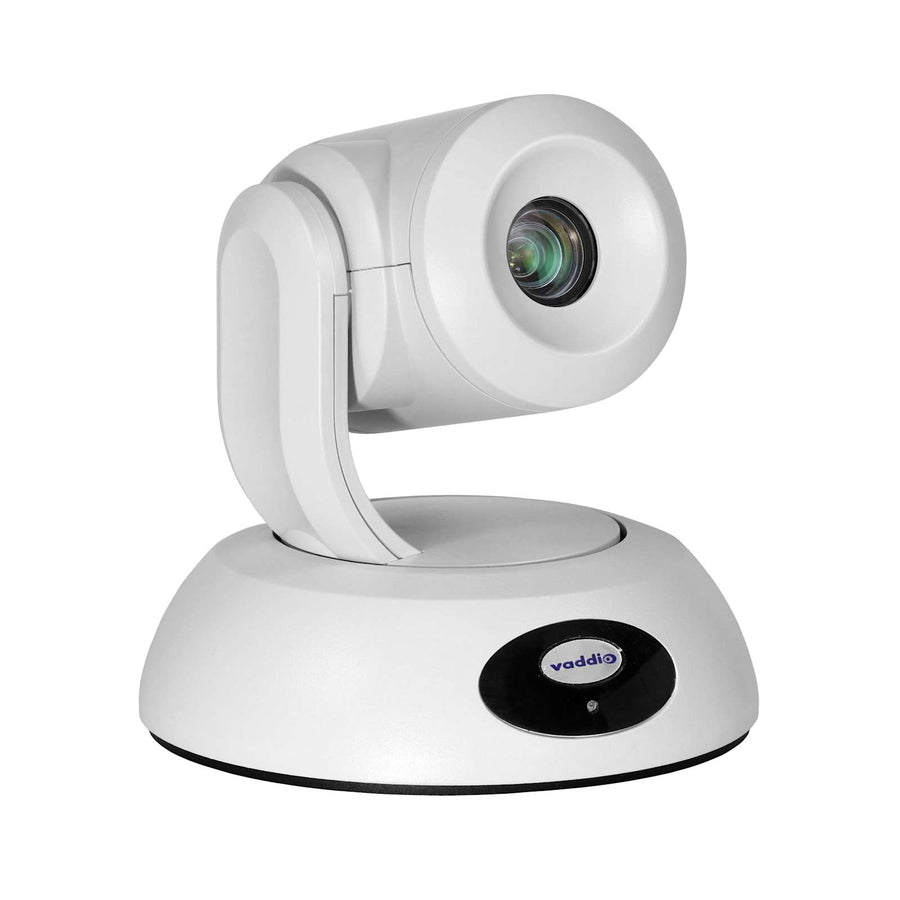

RoboSHOT 4K 12E HDBT
White PTZ camera for small to medium rooms, featuring 12x optical zoom and simultaneous HDBaseT and HDMI outputs
The Vaddio RoboSHOT 4K 12E HDBT is a professional PTZ camera designed for small to medium rooms such as conference rooms, training rooms, and classrooms. Equipped with a 1/2.5-type Exmor R CMOS sensor, this camera delivers sharp 2160p/30 video quality and improved light-gathering capabilities for challenging lighting environments. The unit features simultaneous HDBT and HDMI outputs, allowing for direct connection to HDBaseT-compatible devices or simplified cabling when paired with Vaddio OneLINK HDMI or OneLINK Bridge receivers. It includes 12x optical zoom and Tri-Sync Motion technology for smooth, natural camera movement across all three axes. This TAA-compliant white camera is ideal for remote management via a built-in web-based user interface. Control is versatile, supporting IR remote, joystick, RS232, Telnet, and Web UI methods. For installation, this camera is compatible with Vaddio OneLINK extension systems to facilitate long-distance runs.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6.75 in (17.1 cm) |
| Height | 6.94 in (17.6 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 4.85 lbs (2.2 kg) |
| Shipping Dimensions | 14" x 14" x 18" (355.6 x 355.6 x 457.2 mm) |
| Shipping Weight | 13 lbs (5.9 kg) |
| Width | 7.05 in (17.9 cm) |
| 3rd Party Control | RS232Telnet |
All other specifications 37
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | White |
| Compatible With | Vaddio |
| Control Method | IR RemoteJoystickRS232TelnetWeb UI |
| Estimated Room Size | Medium RoomSmall Room |
| Field of View | 70.2° Wide End to 6.8° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1/2.5-type Exmor R CMOS sensor |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 2160p 30 |
| Minimum Illumination | 1 Lux F1_6 |
| OneLINK Bridge adds | 328 ft (100m) Power Video Control Extension3G SDIAudio MixerHDMIUSB 3.0 |
| OneLINK Compatibility | Native |
| OneLINK HDMI adds | 328ft (100M) Power Video Control ExtensionHDMI |
| Output Ports | HDbTHDMI |
| Pan and Tilt Range | Pan: ±150°Tilt: +90° to -30° |
| Pan and Tilt Speed | 0.35°/sec - 120°/sec |
| Pixels | 8.51 Megapixel |
| Power Cord | US Cord |
| Power Supply | PoE+ Midspan Power Injector |
| Power Type | PoE+ |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Silent BLDC Direct Drive Motors |
| Quick-Connect Compatibility | No |
| Signal Type | HDbTHDMI |
| Solution Type | Camera Only |
| TAA Compliant | Yes |
| Tri-Sync Motion | Yes |
| UPC | 840077508869 |
| White Balance | AutoManualOne Push |
| Zoom | 12x |
| Certifications | CEFCCHDBaseTTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
3ft (0.9m) Core Series High Speed HDMI® Cable with Ethernet
CG56782$12.99
6ft (1.8m) Core Series High Speed HDMI® Cable with Ethernet
CG56783$15.99
RoboSHOT 30E HDBT OneLINK Bridge PTZ Camera System
999-99630-200$7,023.60
Thin Profile Wall Mount for RoboSHOT PTZ Cameras
535-2000-240$177.30
OneLINK HDMI Extension for Vaddio HDBaseT Cameras
999-1105-043$1,579.50
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
IN-Ceiling Half-Recessed Enclosure for RoboSHOT PTZ Cameras
999-2225-150$1,075.50
IN-Wall Enclosure for RoboSHOT PTZ Cameras
999-2225-118$351.90
Vaddio Device Controller
999-42300-000$855.00
Polycom Codec Kit for OneLINK HDMI to Vaddio HDBaseT Cameras
999-9545-000$1,629.00
OneLINK Bridge for Vaddio HDBaseT Cameras
999-9595-000$2,741.40
Questions about this part
Will this camera work with my HDBaseT setup?
Yes, the RoboSHOT 4K 12E HDBT features native HDBaseT support and can be used with Vaddio OneLINK HDMI or OneLINK Bridge receivers to extend installation distances.
What is the video output capability of the 999-99605-000W?
This camera provides simultaneous HDbT and HDMI outputs, allowing you to drive a local display via HDMI while sending video over HDBaseT.
How much control and management is available for remote IT teams?
The camera features a built-in web-based user interface for remote IP management, alongside RS232, Telnet, and IR remote control options.
What is the required power source for this unit?
The RoboSHOT 4K 12E HDBT is powered via PoE+ using a Midspan Power Injector.
What mounting accessories are compatible with this RoboSHOT model?
Compatible mounting options include the Thin Profile Wall Mount (SKU 535-2000-240), Suspended Ceiling Mount (SKU 535-2000-206), and In-Ceiling Half-Recessed Enclosures (SKU 999-2225-118).
