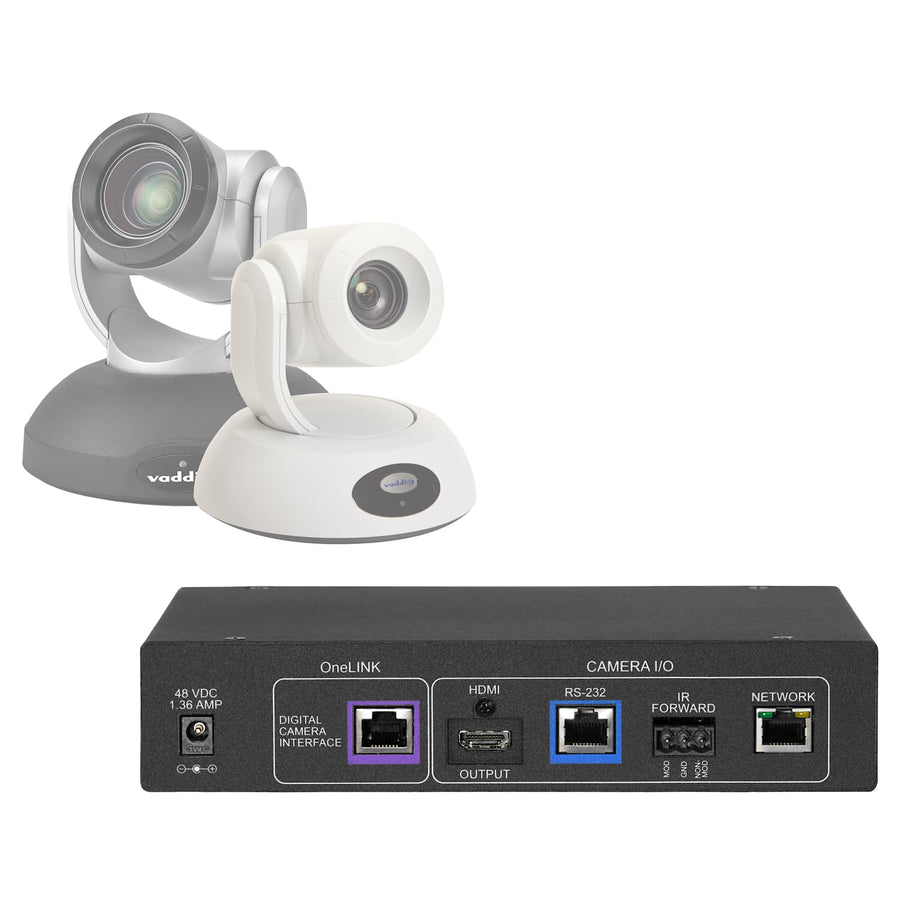

Polycom Codec Kit for OneLINK HDMI to Vaddio HDBaseT Cameras
OneLINK HDMI interface extending power, video, and control to Vaddio HDBaseT cameras over a single cable
The 999-9545-000 is a OneLINK HDMI interface designed to extend power, video, and control to a Vaddio HDBaseT camera using a single category cable. This kit is specifically packaged for use with Polycom 300, 310, 500, or 700 codecs, providing installers with significant flexibility regarding camera and codec placement in a room design. By utilizing HDBaseT technology, the system eliminates cluttered cabling by running power, video, and control signals over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m). The kit is compatible with various Vaddio models, including RoboSHOT 12E and 30E HDBT, RoboSHOT 20 UHD, RoboSHOT 40 UHD, RoboSHOT IW, and DocCAM 20 HDBT. For system administration, the interface features a built-in browser-based user interface for remote control and configuration. It supports 3rd party control via RS232 and Telnet. This TAA compliant solution is ideal for larger conference rooms where the codec cannot be located immediately adjacent to the camera.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 6 in (15.2 cm) |
| Distance | 328 in (833.1 cm) |
| Height | 1.72 in (4.4 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 1.55 lbs (0.7 kg) |
| Shipping Dimensions | 16" x 16" x 7" (406.4 x 406.4 x 177.8 mm) |
| Shipping Weight | 3 lbs (1.4 kg) |
| Width | 8.38 in (21.3 cm) |
All other specifications 15
| 3rd Party Control | RS232Telnet |
| Browser-based User Interface for Remote Control | Built-in |
| Color | Black |
| Compatible With | PolycomVaddio |
| Extension Type | CameraCameraCodec |
| Input Ports | HDbT |
| OneLINK HDMI adds | 328ft (100M) Power Video Control ExtensionHDMI |
| Output Ports | HDMI |
| Power Cord | US Cord |
| Power Supply | 1.36A48VDC |
| Power Type | OneLINK |
| TAA Compliant | Yes |
| UPC | 840077502119 |
| Certifications | CEFCCTAAUL Listed |
| Warranty | 3 years |
Resources
You'll need these with it
Undermount Brackets for Vaddio 1/2 Rack Unit Devices
998-6000-005$44.10
Single 1/2 Rack Mounting Kit
998-6000-004$80.10
48 Volt Power Supply (1.35 Amp)
440-1370-148$86.40
Dual 1/2 Rack Mounting Kit
998-6000-006$114.30
Polycom Codec Kit for OneLINK HDMI to EagleEye IV Camera
999-9520-000$2,089.80
Vaddio Device Controller
999-42300-000$855.00
Polycom Codec Kit for OneLINK Bridge to Vaddio HDBaseT Cameras
999-9645-000$2,877.30
Questions about this part
What Vaddio cameras are compatible with the 999-9545-000 kit?
This kit is compatible with RoboSHOT 12E and 30E HDBT, RoboSHOT 20 UHD, RoboSHOT 40 UHD, RoboSHOT IW, and DocCAM 20 HDBT models.
How far can I run the camera cable with this OneLINK HDMI kit?
You can extend signals up to 328 ft. (100m) using a Cat-6 cable or up to 230 ft. (70m) using a Cat-5e cable.
Which Polycom codecs does this kit support?
This package is tailored for Polycom 300, 310, 500, and 700 series codecs.
Does the 999-9545-000 include a power supply?
The kit is designed to work with Polycom codecs; for additional 48VDC power requirements, see the 440-1370-148 48 Volt Power Supply (1.35 Amp).
What installation documents are available for this interface?
Technical resources include the OneLINK HDMI Installation Guide, a Quick-Start Guide, and the Complete Manual for system configuration.
