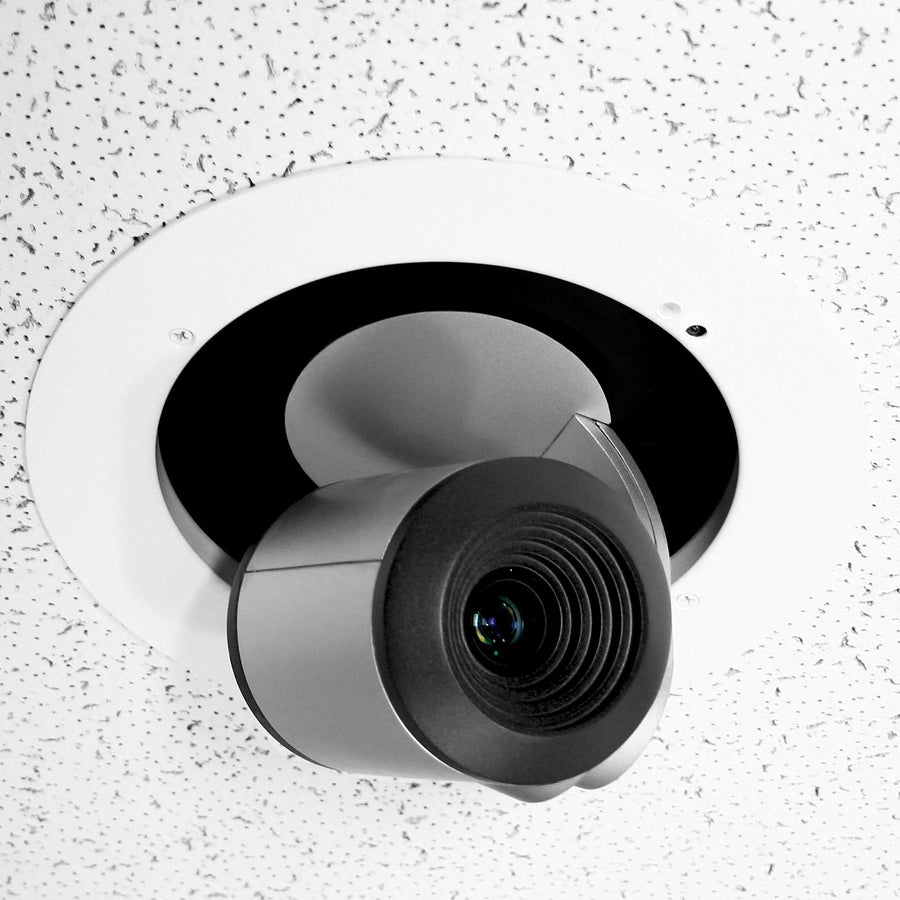

IN-Ceiling Half-Recessed Enclosure for RoboSHOT PTZ Cameras
Half-recessed ceiling enclosure for Vaddio RoboSHOT and Logitech Rally PTZ cameras with active IR capability
The 999-2225-150 is an IN-Ceiling Half-Recessed Enclosure designed to provide a clean, partially recessed installation for pan/tilt/zoom cameras. This mounting system is built for Vaddio RoboSHOT 12/12E and 30/30E cameras, the EasyIP 20, and Logitech Rally cameras. The assembly features a white metal trim ring and a metal back box, providing a professional, integrated appearance for ceiling-mounted installations. To maintain full remote functionality, the enclosure includes an active IR circuit within the trim ring. This circuit features an IR receiver and an IR emitter board that allows for seamless operation with a Vaddio IR Remote. This IR system is powered by compatible Quick-Connect Interfaces or requires the 999-1005-021 Power Extension Module (PEM) if the camera does not utilize a two-cable Quick-Connect setup. The installation is supported by a one-piece tile support brace to assist with ceiling mounting.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 24" x 17" x 13" (609.6 x 431.8 x 330.2 mm) |
| Shipping Weight | 15 lbs (6.8 kg) |
| Application | Ceiling |
| Color | White |
| Compatible With | Vaddio |
| TAA Compliant | Yes |
| UPC | 840077501037 |
| Certifications | CEFCCTAA |
| Warranty | 3 years |
Resources
You'll need these with it
Verified fitment
Questions about this part
Will this enclosure work with my Vaddio RoboSHOT remote?
Yes. The trim ring contains an active IR circuit with an emitter and receiver, ensuring full compatibility with the Vaddio IR Remote.
What do I need to purchase if my camera doesn't use Quick-Connect?
If the mounted camera does not include a two-cable Quick-Connect, you will need to purchase the 999-1005-021 Power Extension Module (PEM) to power the IR circuit.
Does this enclosure include the camera?
No, the camera is not included in this package; it is a mounting enclosure only.
What is included in the installation kit?
The package includes a metal back box with an internal IR emitter, a back box lid with a collar ring, a white trim ring with an IR receiver, a felt IR shield ring, and a 2' (0.6m) Cat-5e cable.
Is this mount suitable for a drop ceiling?
Yes, this enclosure includes a one-piece tile support brace to assist with installation in ceiling tile environments.
