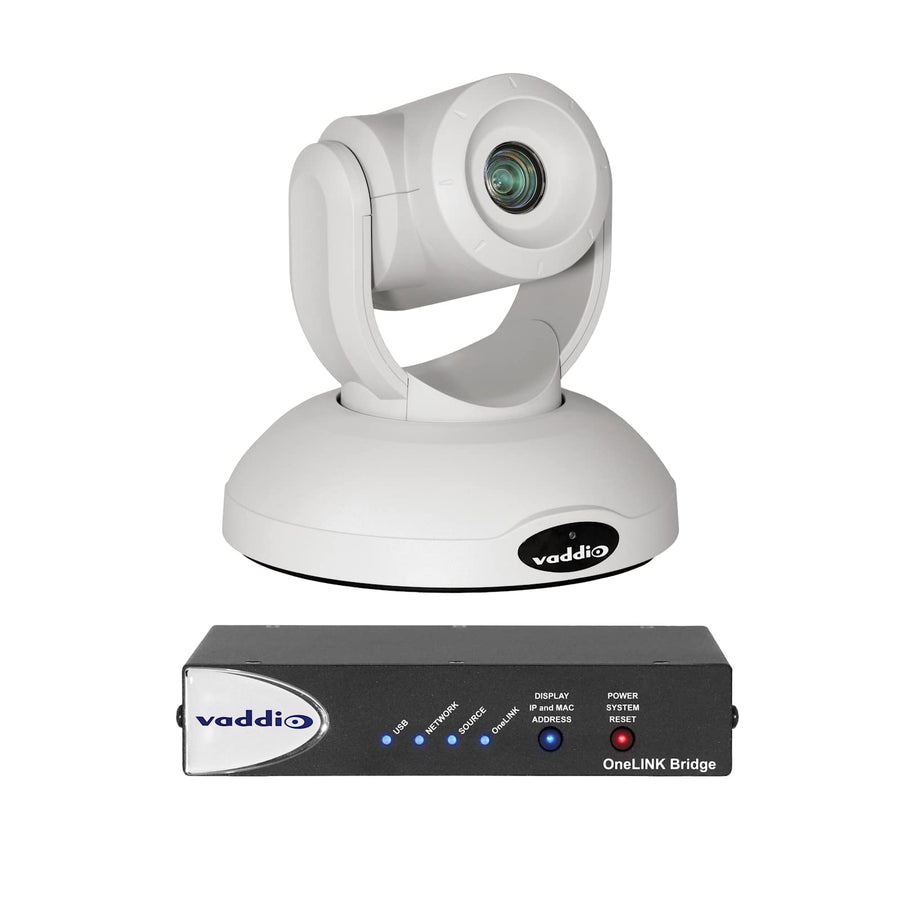

RoboSHOT 20 UHD OneLINK Bridge System
UHD 4K PTZ camera system with OneLINK Bridge for power, video, and control extension over a single cable
The Vaddio 999-9950-200W RoboSHOT 20 UHD OneLINK Bridge System integrates a high-performance Ultra HD PTZ camera with a OneLINK Bridge to simplify installation by extending power, video, and control over a single cable. This setup is designed for medium to large rooms, such as corporate boardrooms, higher education lecture halls, and houses of worship. The system uses a 1/2.3-type, back-illuminated 8.93 Megapixel Exmor R CMOS sensor to deliver native 2160p/30 (3840 x 2160) video without the need for scaling. With a 20x total zoom range—comprising a 12x optical zoom and a 1.67x digital zoom—this camera provides a field of view from 74° (wide) down to 4.8° (tele). The silent BLDC direct drive motors enable precise pan and tilt movements ranging from 0.35°/sec to 120°/sec. The system's OneLINK Bridge features HDBaseT technology, allowing for the extension of HD video, 100BaseT Ethernet, RS-232, and power over a single Cat-5e or Cat-6 cable up to 328 ft (100 m). For conferencing applications, the bridge converts signals to a USB stream for easy connection to soft clients like Zoom or Google Hangouts. The camera offers multiple output options, including 3G SDI, HDMI, USB 3.0 Type B, and IP streaming, alongside administrative control via a built-in web interface.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | Camera: 7.71" (19.6 cm) OneLINK: 6" (15.2 cm) |
| Distance | 328 in (833.1 cm) |
| Height | Camera: 7.87" (20 cm) OneLK: 1.72" (4.37 cm) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Product Weight | 6 lbs (2.7 kg) |
| Shipping Dimensions | 20" x 15" x 19" (508 x 381 x 482.6 mm) |
| Shipping Weight | 15 lbs (6.8 kg) |
| Width | Camera: 8" (20.3 cm) OneLINK: 8.38" (21.3 cm) |
All other specifications 42
| 3rd Party Control | RS232Telnet |
| Bridged Signal | Audio and Video |
| Browser-based User Interface for Remote Control | Built-in |
| Camera Type | PTZ |
| Color | White |
| Compatible With | Vaddio |
| Control Method | IR RemoteRS232TelnetWeb UI |
| Estimated Room Size | Large RoomMedium Room |
| Extension System | with OneLINK Bridge |
| Extension Type | Camera |
| Field of View | 74° Wide End to 4.8° Tele End |
| Field of View Wide | Greater than 70 |
| Focus System | AutoManual |
| Gain | AutoManual |
| Image Sensor Type | 1-2_3 Exmor R CMOS |
| Input Ports | HDbT |
| Invertible | Yes |
| Manufacturer | Vaddio |
| Max Resolution | 2160p |
| Minimum Illumination | 3 Lux (F1.8) |
| OneLINK Compatibility | Native |
| OneLINK HDMI adds | 328ft (100M) Power Video Control Extension |
| Output Ports | 3G SDIHDMIIP StreamingUSB 3.0 Type B |
| Pan and Tilt Range | Tilt: +90· to -30°Pan: ±160° |
| Pan and Tilt Speed | 0.35°/sec - 120°/sec |
| Pixels | 8.93 Megapixel |
| Power Cord | US Cord |
| Power Supply | 1.36A48VDC |
| Power Type | OneLINK |
| Preset Positions | 16 Custom Home Position |
| PTZ Motors | Silent BLDC Direct Drive Motors |
| Quick-Connect Compatibility | No |
| Signal Type | 3G SDIAudioHDMIIP StreamingRS 232USB 3.0 |
| Solution Type | Camera with Extension |
| Special Features | With OneLINK Extender |
| TAA Compliant | Yes |
| Tri-Sync Motion | Yes |
| UPC | 840077503871 |
| White Balance | AutoManualOne Push |
| Zoom | 20x |
| Certifications | CEFCCTAAUL Listed |
| Warranty | 3 years |
Resources
You'll need these with it

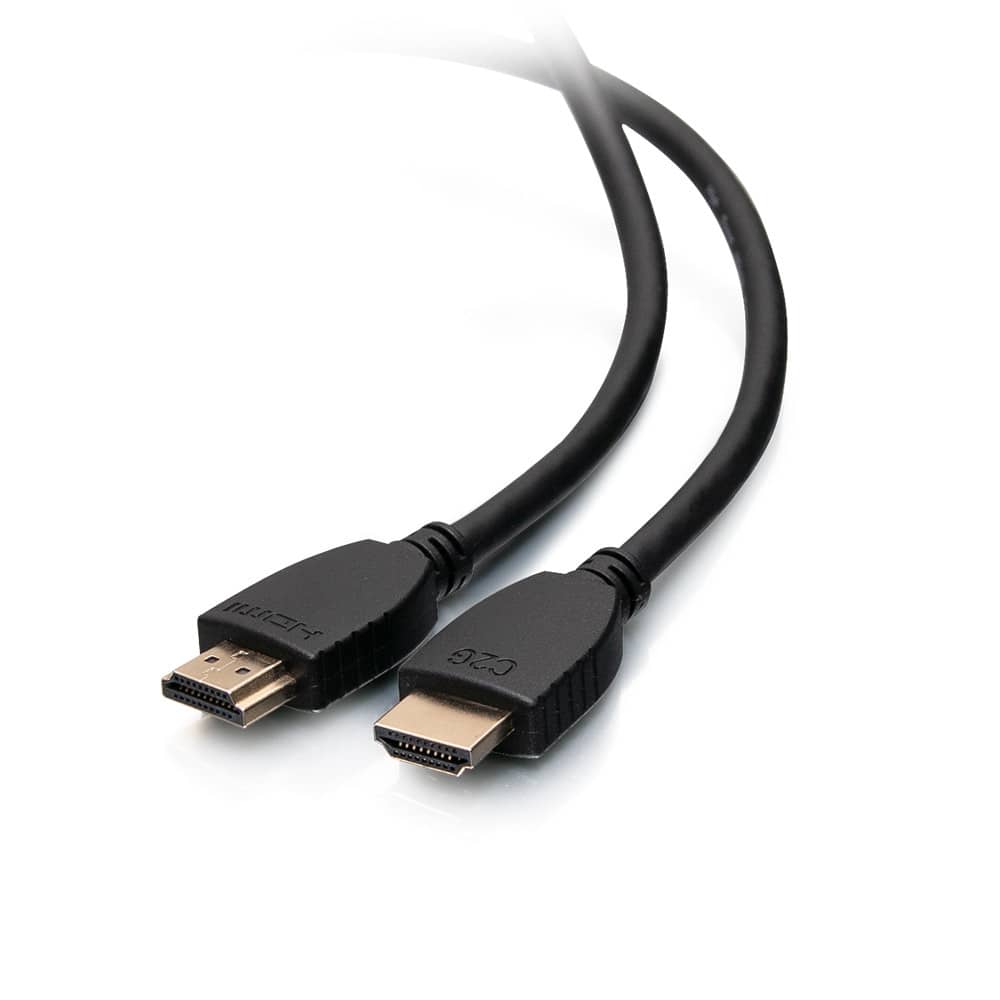

10ft (3m) Core Series High Speed HDMI® Cable with Ethernet
CG56784$18.99
15ft (4.5m) Core Series High Speed HDMI® Cable with Ethernet
CG50612$22.99
RoboSHOT 20 UHD OneLINK HDMI PTZ Camera System
999-9950-100W$7,279.20
RoboSHOT 20 UHD PTZ Camera
999-9950-000W$5,806.80
Single 1/2 Rack Mounting Kit
998-6000-004$80.10
Suspended Ceiling Mount for Vaddio Cameras
535-2000-206$141.30
IN-Ceiling Half Recessed Enclosure for RoboSHOT UHD Cameras
999-2225-200$1,075.50
Vaddio Device Controller
999-42300-000$855.00

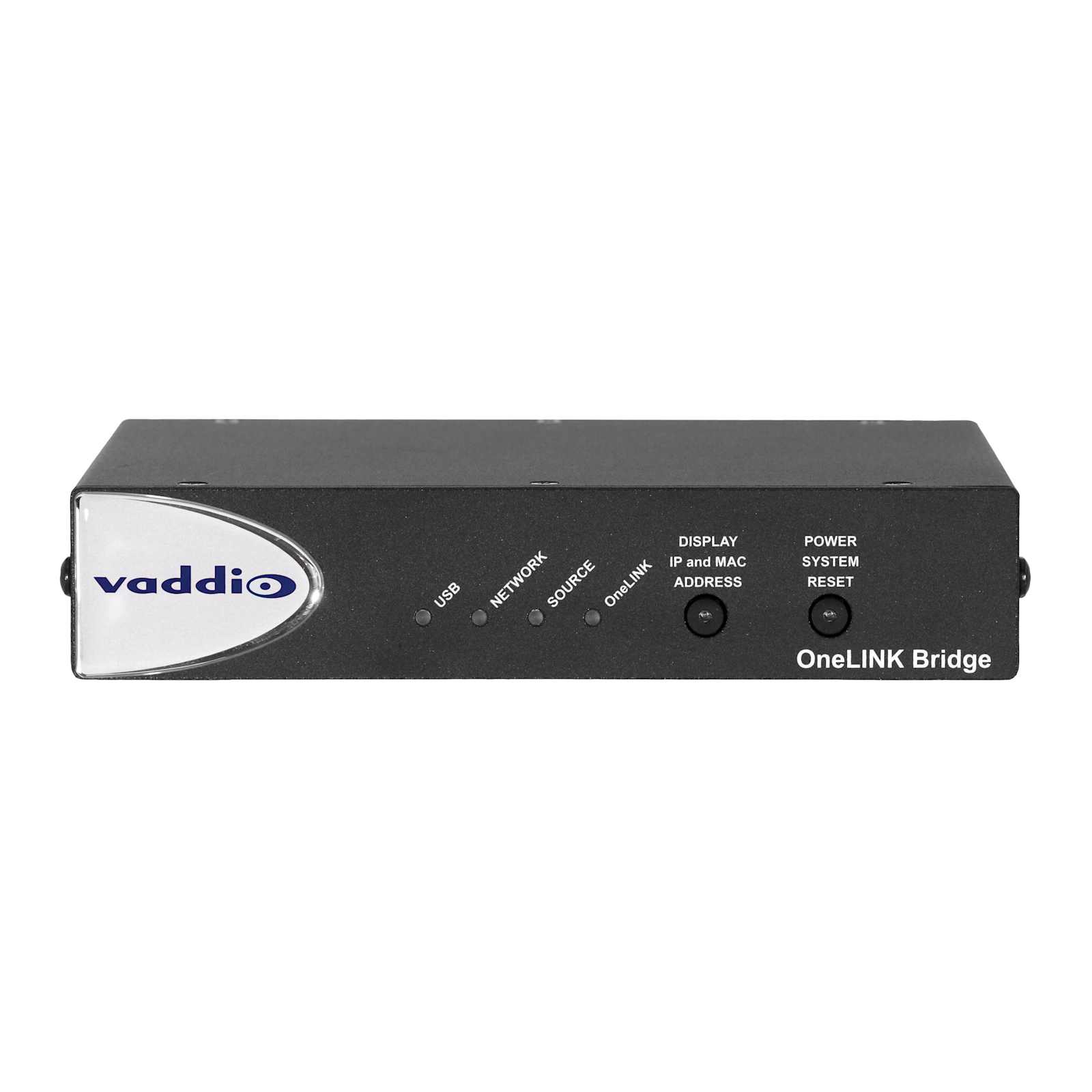

OneLINK Bridge for Vaddio HDBaseT Cameras
999-9595-000$2,741.40
LT PoE++ Power Injector
802-3303$183.60

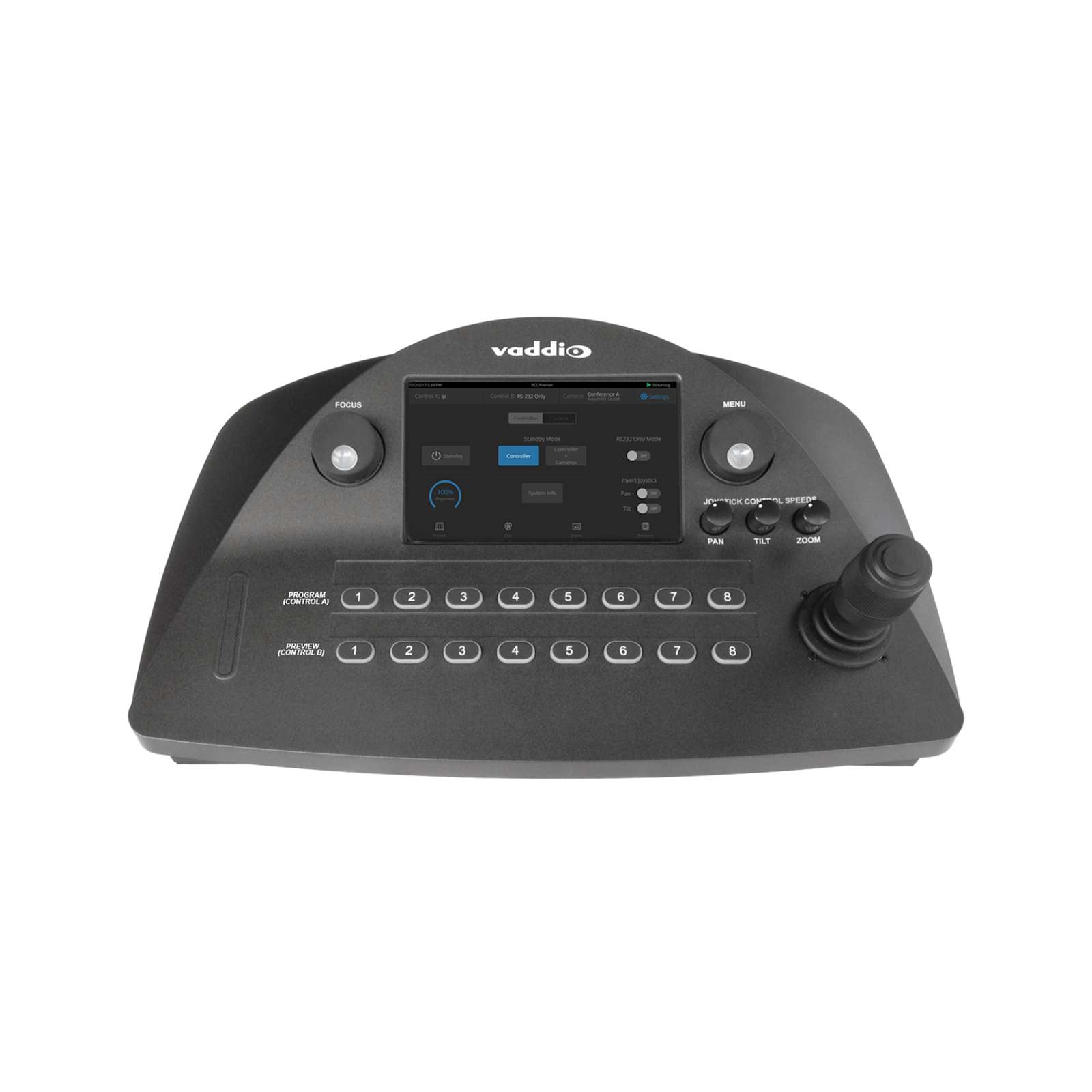

PCC Premier
999-5750-000$3,763.80

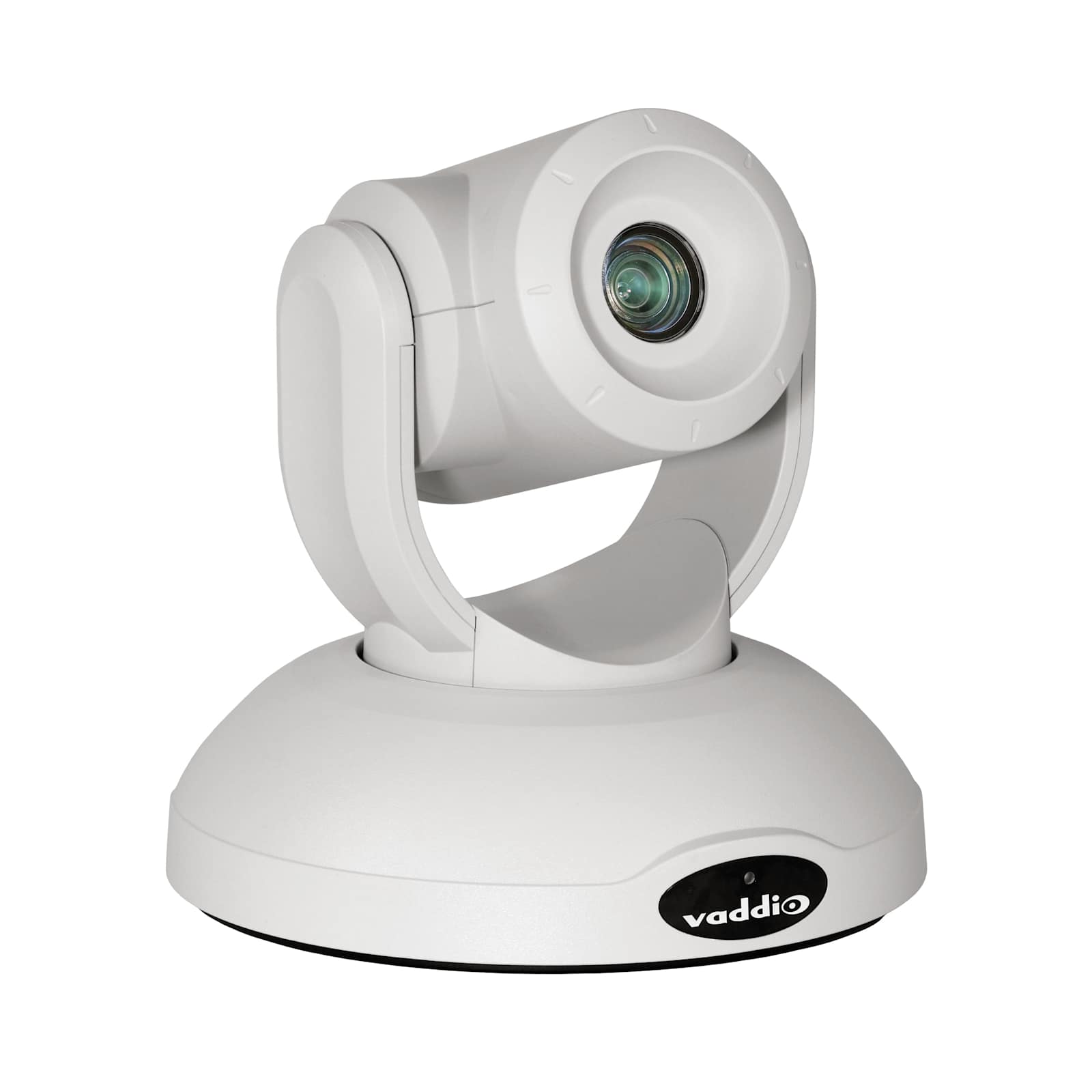

RoboSHOT 40 UHD 4K PTZ Camera System
999-9952-000$6,857.10
Questions about this part
How far can I extend the camera using the OneLINK Bridge?
The OneLINK Bridge extends power, video, RS-232, and 100BaseT Ethernet up to 328 ft (100 m) using a Cat-6 cable, or up to 230 ft (70 m) with Cat-5e.
Can I use this camera for Zoom or Google Hangouts conferencing?
Yes. The OneLINK Bridge connects the non-USB camera and audio source to a USB stream, enabling easy connection to conferencing software like Zoom or Google Hangouts.
What are the pan and tilt capabilities of the RoboSHOT 20 UHD?
The camera features a pan range of ±160° and a tilt range from +90° to -30°, with motion speeds ranging from 0.35°/sec to 120°/sec.
Which control methods are supported by this system?
The system supports remote operation via IR Remote, RS232, Telnet, and a built-in Web UI for administrative control.
Does this system require additional equipment for installation?
The system requires a Cat-5e or Cat-6 cable for the OneLINK extension. For specialized mounting, Vaddio offers suspended ceiling mounts and in-ceiling enclosures.
