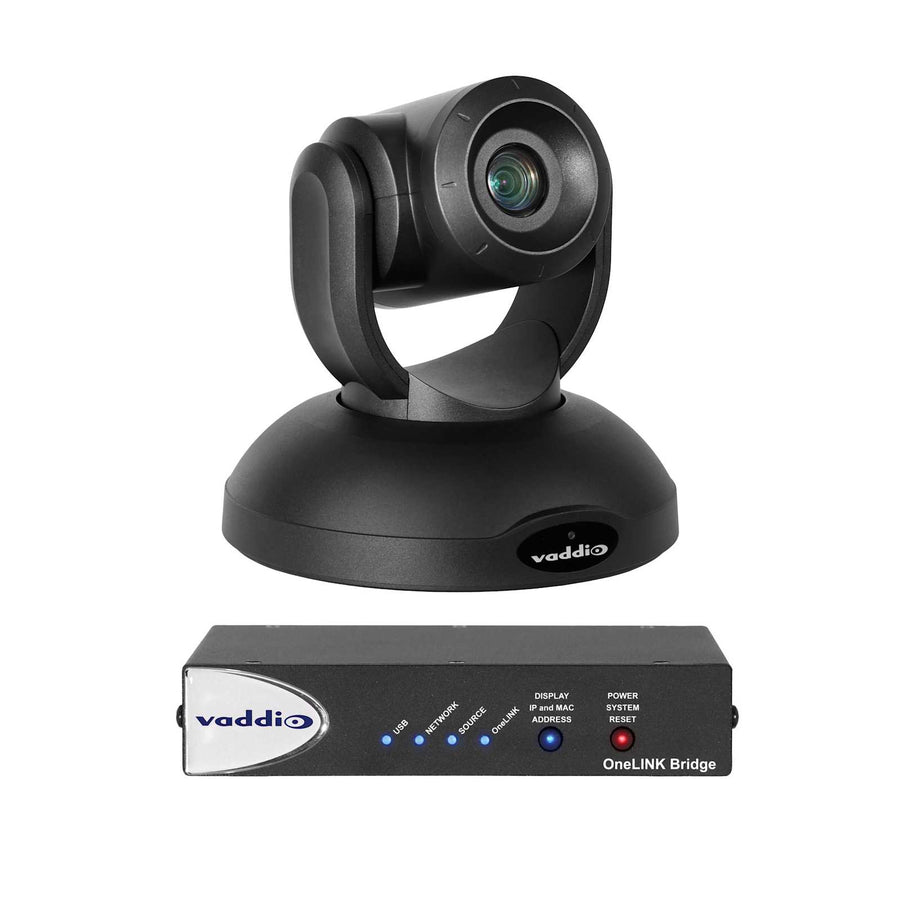

RoboSHOT 20 UHD OneLINK Bridge System

UHD PTZ camera with OneLINK Bridge for power, video, and control extension up to 328 ft over Cat-6

The Vaddio 999-9950-200B RoboSHOT 20 UHD OneLINK Bridge System combines a high-performance 2160p PTZ camera with the OneLINK Bridge to streamline professional AV installations. This system is designed for medium to large rooms, such as corporate boardrooms, lecture halls, and houses of worship, where tidy cable management is critical. By utilizing the OneLINK extension technology, the system delivers HD video, power, RS-232, and control over a single Cat-5e or Cat-6 cable for distances up to 230 ft (70 m) with Cat-5e and 328 ft (100 m) with Cat-6. The RoboSHOT 20 UHD camera features a 1/2.3-type, back-illuminated 8.93 Megapixel Exmor R CMOS sensor, providing native UHD 2160p/30 video without scaling. The 20x zoom lens offers a 74° wide field of view to 4.8° tele, supported by silent BLDC direct drive motors for precise pan and tilt movements ranging from +90° to -30° tilt and ±160° pan. The OneLINK Bridge simplifies conferencing by bridging audio and video to a USB 3.0 Type B connection, allowing the camera to be recognized as a standard UVC device for applications like Zoom or Google Hangouts. This TAA-compliant solution also supports simultaneous 3G SDI, HDMI, and IP streaming outputs for flexible deployment in multi-platform environments.
