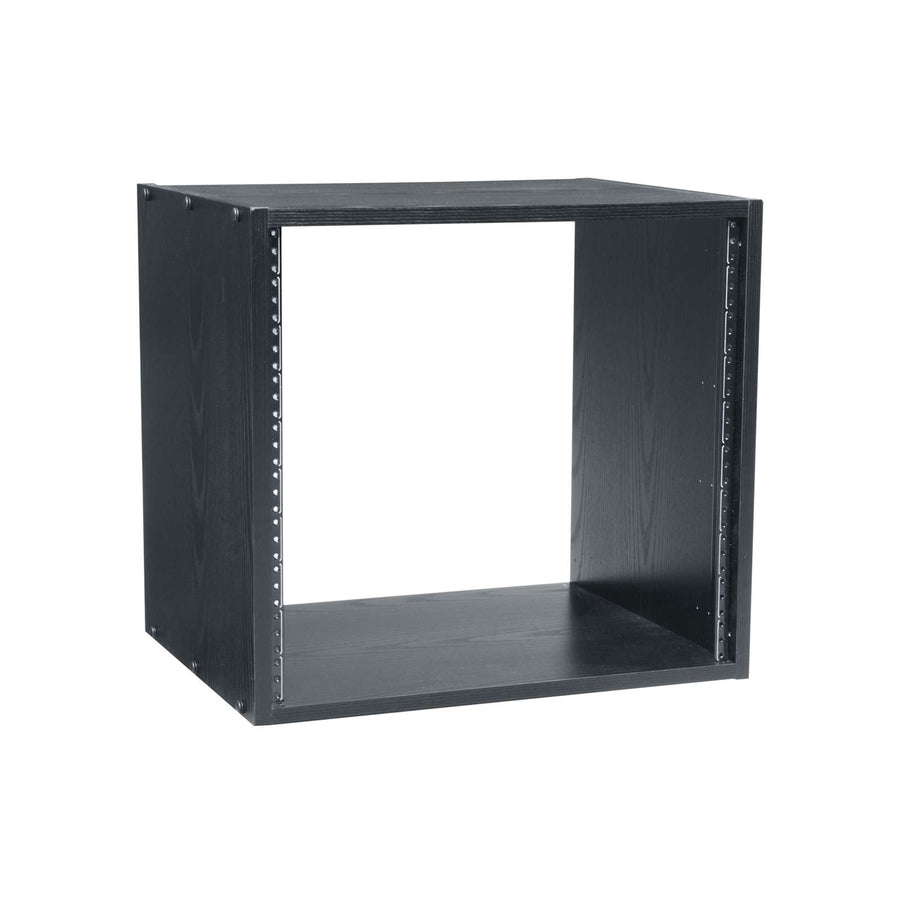

RK Series Black Laminate Rack - RK8
8 RU wood rack with Black Wood Grain laminate finish and 200 lbs weight capacity
The RK8 is an 8 RU equipment rack featuring a Black Wood Grain laminate finish, designed for environments requiring professional aesthetics and mobility. This knockdown rack provides a versatile mounting solution for various hardware configurations. It features 10-32 rack rails and supports a total weight capacity of 200 lbs (90.7 kg). The enclosure has a total height of 15.48 in (39.3 cm) and a width of 20.4 in (51.8 cm), providing a usable height of 14 in (35.6 cm) and a usable depth of 15.41 in (39.1 cm). This series is TAA compliant and PEP certified. For specialized enclosures, the RK-GD8 glass door is compatible with this series.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 15.91 in (40.4 cm) |
| Height | 15.48 in (39.3 cm) |
| Rack Units | 8 RU |
| Shipping Weight | 25 lbs (11.3 kg) |
| Usable Depth | 15.41 in (39.1 cm) |
| Usable Height | 14 in (35.6 cm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Width | 20.4 in (51.8 cm) |
All other specifications 5
| Finish | Black Wood Grain |
| Material | Wood |
| Rack Rail Type | 10-32 |
| Rack Type | Knockdown |
| UPC | 656747014215 |
Resources
You'll need these with it
Shelf Mount Power, 8 Outlet, 15A, Basic Surge Protection
PD-815SC-PBSH$333.00
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30

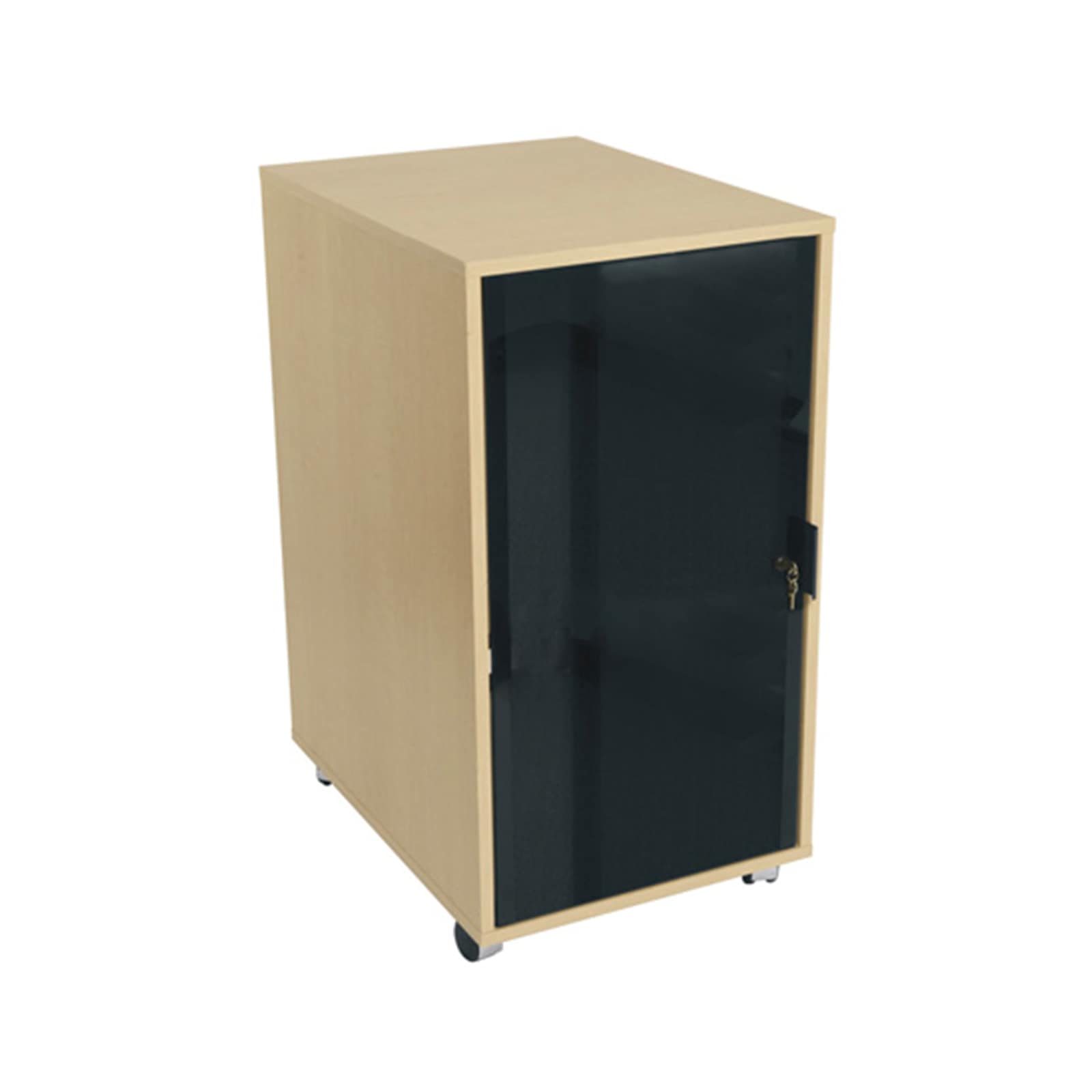

8 RU Glass Door for RK, BRK, OBRK and MBRK Racks
RK-GD8$207.90
50 CFM Fan Panel, Anodized & 220 - 240VAC
QFP-1-119$214.20
UCP Series Hinged Frame Kit
UCP-SF$79.20
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
Questions about this part
Will the RK8 fit my equipment height requirements?
The RK8 provides a usable height of 14 in (35.6 cm) within its 8 RU frame.
Can I add a door to the RK8 rack?
Yes, the RK8 is compatible with the RK-GD8 8 RU Glass Door.
What is the weight limit for the RK8?
The RK8 has a total weight capacity of 200 lbs (90.7 kg).
Does this rack include power options?
You can add various accessories such as the PD-815SC-PBSH 8-outlet surge protection shelf or Select Series PDUs like the RLNK-215.
What is the usable depth of the RK8?
The RK8 offers a usable depth of 15.41 in (39.1 cm) for equipment installation.
