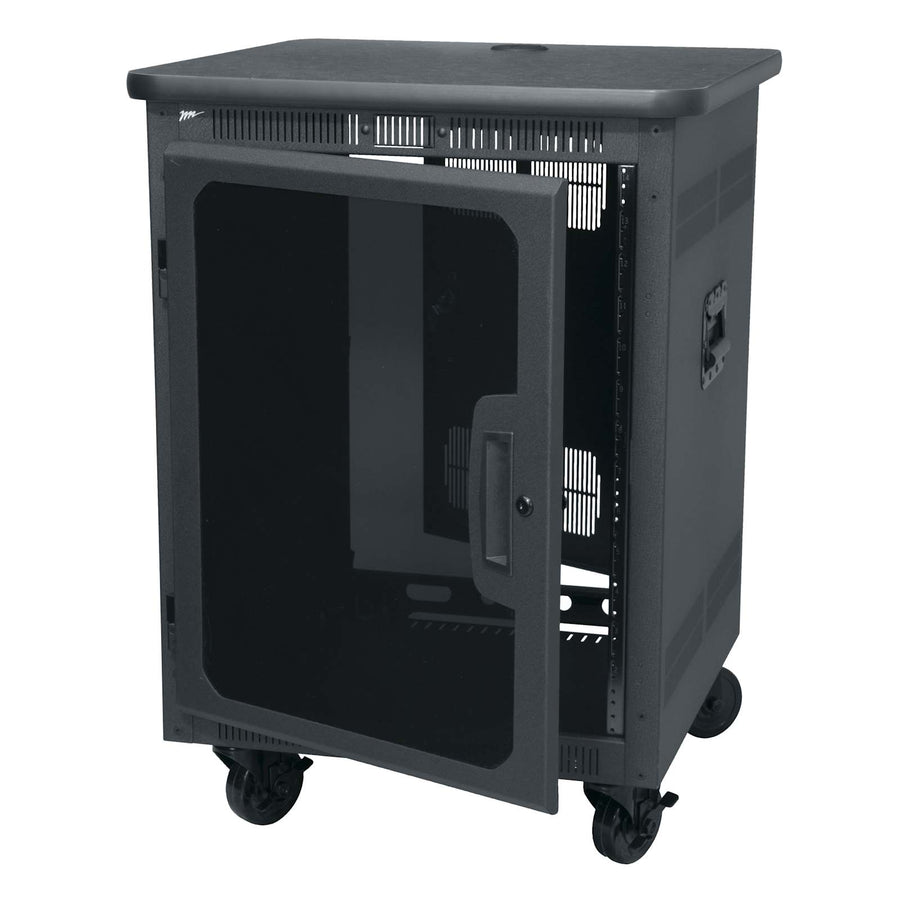

PTRK Series Portable Rolling Rack - PTRK-1426MDK
14 RU portable rolling rack with 500 lbs capacity, keylocked doors, and TAA compliance
The Middle Atlantic PTRK-1426MDK is a 14 RU mobile rack designed for applications where rugged portability and security are essential. Constructed with fully welded steel, this rack supports a weight capacity of 500 lbs (226.8 kg). It features a graphite-marbled laminate top and a plexi front door to protect equipment. For secure deployment, the unit includes keylocked front and rear doors as standard. The chassis is equipped with spring-loaded recessed side handles to facilitate safe transport, while commercial-grade locking casters allow for smooth movement. Thermal management is addressed through vented side panels and a rear door that accepts fans. The interior includes standard front adjustable 10-32 threaded rackrails and slots in the bottom for cable strain relief and equipment securing. This TAA compliant rack is manufactured in the USA.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 26.93 in (68.4 cm) |
| Height | 34.71 in (88.2 cm) |
| Rack Units | 14 RU |
| Shipping Weight | 124 lbs (56.3 kg) |
| Usable Depth | 24.5 in (62.2 cm) |
| Usable Height | 24.5 in (62.2 cm) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Width | 24.91 in (63.3 cm) |
All other specifications 7
| Federal Ops Country of Origin | USA |
| Monitor Mounting | Yes |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747071430 |
| Wood Laminate Top | Yes |
| Certifications | TAA |
Resources
You'll need these with it
1 RU Mounting Rackshelf
UTR1$58.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A
PD-815SC-NS$188.10
1 RU BlowerPanel, 100 CFM, 32dB
QBP-2$581.40
115V Fan 4 1/2 Inch, 50 CFM at 30dBA
QFAN$136.80
115V Fan 4 1/2 Inch, 95 CFM
MAFAN$99.90
50 CFM Fan Panel, 24dB
UQFP-2$558.90
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
Questions about this part
Will the PTRK-1426MDK work with my mounted equipment?
This rack features standard front adjustable 10-32 threaded rackrails to accommodate various rackmount components. It also supports monitor mounting for integrated display setups.
What accessories are compatible with this rack?
You can enhance this rack with several Middle Atlantic accessories, including UTR1 1 RU mounting rackshelves, Select Series PDUs like the RLNK-215, or various fan panels like the QBP-2 or UQFP-2.
What is the usable space inside the PTRK-1426MDK?
The rack provides a usable height of 24.5 in (62.2 cm) and a usable depth of 24.5 in (62.2 cm) within the 14 RU frame.
Is this rack TAA compliant for government contracts?
Yes, the PTRK-1426MDK is TAA compliant and is manufactured in the USA.
How is equipment secured and cooled within the rack?
Equipment is secured via 10-32 threaded rackrails and bottom cable strain relief slots. For cooling, use the vented side panels or install fans in the rear door.
