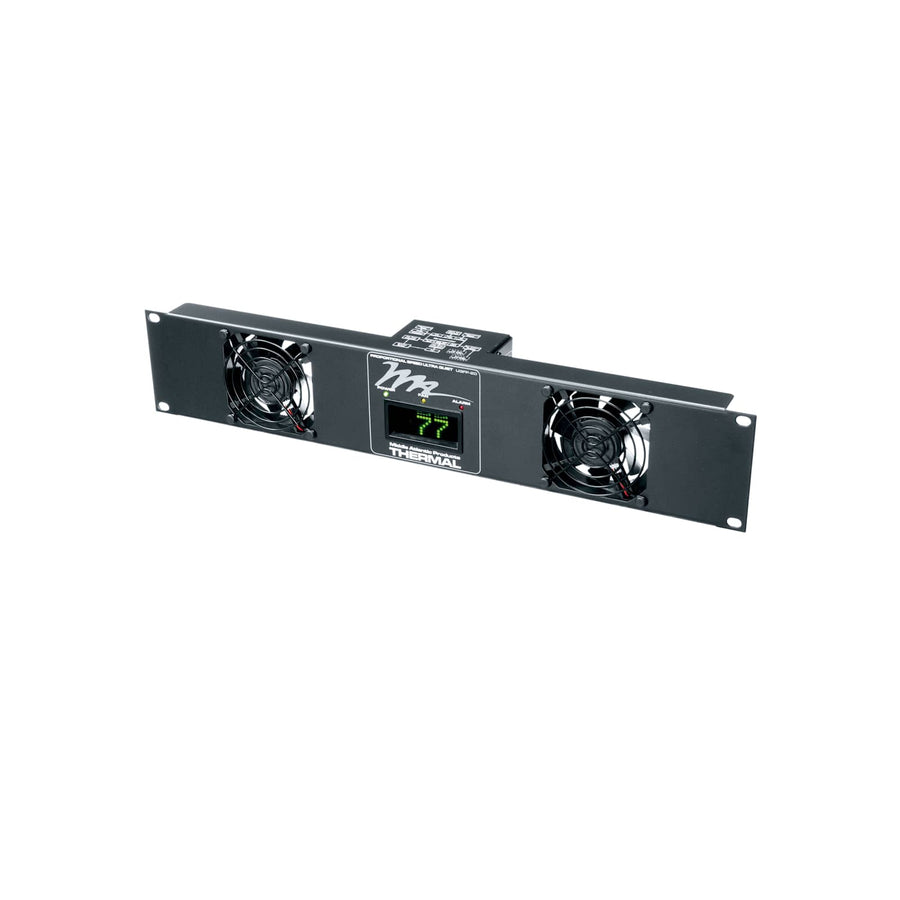

50 CFM Fan Panel, 24dB
2 RU ultra quiet fan panel providing 50 CFM of cooling with thermostatic proportional control for noise-sensitive environments
The Middle Atlantic UQFP-2 is a 2 RU thermal management solution designed for high-performance cooling in noise-sensitive environments like boardrooms, classrooms, and houses of worship. This active component utilizes an on-board digital processor to monitor rack temperature via an external sensor, allowing for intelligent, thermostatic proportional control. This system varies the fan speed dynamically based on enclosure temperature, ensuring ultra quiet operation rated at 24 dB with a 50 CFM capacity. To ensure system reliability, the UQFP-2 provides both local and remote notification for overtemperature conditions and fan faults. The fan fault notification can be sent to a control system or displayed locally, allowing integrators to monitor the health of the rack remotely. This specific model is part of the UQFP series and will be discontinued on October 1, 2026; for future-proofed designs, the UQFP-4 is the suggested alternative.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| AC Voltage Input | 120 |
| CFM | 50 |
| Depth | 3.4 in (8.6 cm) |
| Height | 3.5 in (8.9 cm) |
| Rack Units | 2 RU |
| Shipping Weight | 4 lbs (1.8 kg) |
| Volts DC | 5 VDC |
| Width | 19 in (48.3 cm) |
All other specifications 10
| Available Internationally | No |
| Component Type | Active |
| Display | No |
| Finish | Brushed and Anodized |
| Manufacturer | Middle Atlantic |
| Mounting Points | 2 |
| Power Type | DC |
| TAA Compliant | No |
| Thermistor | No |
| UPC | 656747070457 |
Resources
Questions about this part
Will the UQFP-2 work in a noise-sensitive boardroom?
Yes, the UQFP-2 is designed for ultra quiet operation, utilizing proportional fan speed control and a 24 dB rating to minimize acoustic impact.
How does the UQFP-2 notify me of a system failure?
The unit provides local and remote notification for both overtemperature conditions and fan faults, which can be sent to a control system.
What is the difference between the UQFP-2 and the UQFP-4?
The UQFP-2 is a 2 RU panel, while the UQFP-4 is the suggested alternative for systems requiring a different rack space footprint.
What kind of power does this fan panel require?
The system operates on 120V AC input voltage and utilizes 5 VDC for power.
Which document should I use for a submittal?
For technical details and dimensions, refer to the UQFP Series Ultra Quiet Fan Panels A&E Specification Sheet (PDF).
