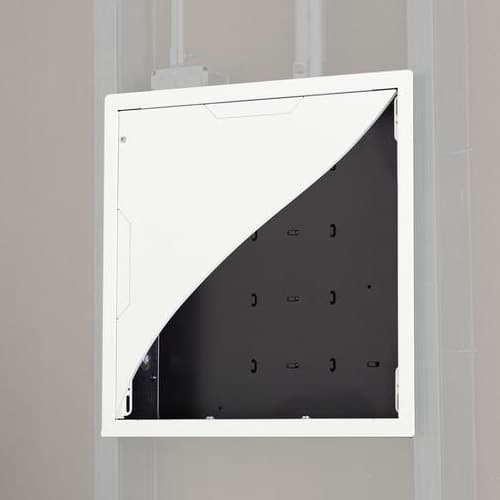

Proximity® Large In-Wall Storage Box, 14.25 Inch x 14.25 Inch x 3.9 Inch
Large in-wall storage box for recessed cable management and power, 14.25 x 14.25 x 3.9 inches
The PAC526F-G provides an organized, recessed area for routing excess cables and housing surge protectors or power conditioners behind a display. This large in-wall storage box is intended for use in on-wall kiosks and digital signage solutions where a clean, professional aesthetic is required. It features a black finish on both the body and the flanges. The unit has a 10 lbs (4.5 kg) weight capacity and measures 14.25 in (36.2 cm) x 14.25 in (36.2 cm) x 3.9 in (9.9 cm). This solution is TAA compliant and UL listed. For complete installation and submittals, refer to the PAC525 526 Installation Manual or the PAC526F Technical Drawing.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3.9 in (9.9 cm) |
| Height | 14.25 in (36.2 cm) |
| Overall Dimensions | 14.25" x 14.25" x 3.9" (362mm x 362mm x 99mm) |
| Shipping Weight | 14 lbs (6.4 kg) |
| Weight Capacity | 10 lbs (4.5 kg) |
| Width | 14.25 in (36.2 cm) |
| Accessory Type | In-Wall |
| Application | In-Wall |
All other specifications 6
| Color | Black |
| Flange Color | Black |
| Special Features | Flanges |
| TAA Compliant | Yes |
| UPC | 841872164359 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
PNRUB, Large Flat Panel Swing Arm Wall Display Mount - 25 Inch Extension
PNRUB$886.40
Medium Flat Panel Swing Arm Wall Display Mount - 25 Inch Extension, TAA Compliant
MWRUB-G$662.40
Large Flat Panel Swing Arm Wall Mount - 37 Inch (without interface)
PDR2000B$886.40
Proximity® Two Outlet PAC526 Power Kit
PAC526P2-KIT$232.80
Proximity® Six Outlet PAC526 Power Kit
PAC526P6-KIT$702.40
Proximity® Four Outlet PAC526 Power Kit
PAC526P4-KIT$466.40
Large Thinstall™ Dual Swing Arm Wall Display Mount - 25 Inch Extension
TS525TU$649.60
Large Fusion® Micro-Adjustable Fixed Wall Display Mount
LSM1U$247.20
Large Fusion® Fixed Wall Display Mount
LSA1U$186.40
Medium Thinstall™ Single Swing Arm Wall Display Mount - 18 Inch Extension
TS318SU$388.80
Medium Thinstall™ Dual Swing Arm Wall Display Mount - 18 Inch Extension
TS318TU$456.00
Medium Thinstall™ Dual Swing Arm Wall Display Mount - 25 Inch Extension
TS325TU$519.20
Questions about this part
Which Chief wall mounts are compatible with the PAC526F-G?
This box is compatible with PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, PDR, Thinstall, and Fusion wall mounts.
What power kits can I use with this storage box?
You can integrate the PAC526P2-KIT (2-outlet), PAC526P4-KIT (4-outlet), or PAC526P6-KIT (6-outlet) power kits into the unit.
What is the weight capacity of the PAC526F-G?
The PAC526F-G has a rated weight capacity of 10 lbs (4.5 kg).
Does the PAC526F-G require additional hardware for a clean install?
To secure the box, you may need the Proximity Lever Lock Plate, part number PACL2.
Is this storage box TAA compliant for government projects?
Yes, the PAC526F-G is TAA compliant and UL listed.
