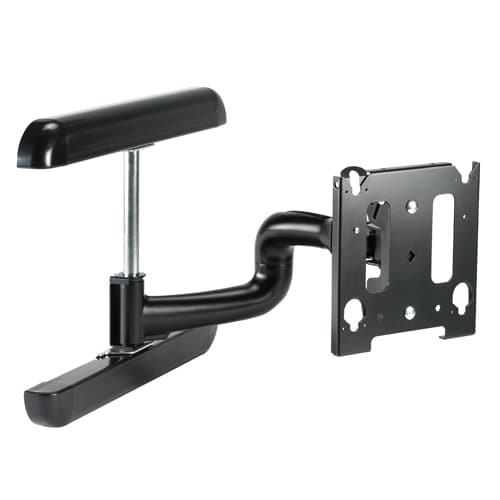

Medium Flat Panel Swing Arm Wall Display Mount - 25 Inch Extension, TAA Compliant
Medium swing arm wall mount for 30"–55" displays, 125 lbs capacity, with 25" extension and lateral shift
The Chief MWRUB-G is a medium flat panel swing arm wall display mount designed for professional installations requiring significant reach and flexibility. This TAA compliant mount provides full extension while maintaining a low profile in its home position. It is engineered for 30" to 55" (762mm–1397mm) displays and supports a weight capacity of 125 lbs (56.7 kg). Installation is streamlined using provided mounting guides and the Q-Latch Mounting System, which secures the flat panel to the mount with a latching flag. For cable management, the integrated CableTrac System allows for fast and effective routing. The mount features Centris Technology for fingertip tilt adjustments of +5° to -15° and offers a 6" lateral shift (shipping with a 2.5" shift to the left). It supports both landscape and portrait orientations; for rotation without removing the display, use the MAC400 accessory. The mount is compatible with 16" (406mm) wall stud spacing and features post-installation leveling rolls for fine-tuning the display position.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3.4 in (8.6 cm) |
| Height | 18 in (45.7 cm) |
| Shipping Dimensions | 35" x 23.75" x 7.25" (889 x 603.3 x 184.2 mm) |
| Shipping Weight | 45 lbs (20.4 kg) |
| Typical Screen Size | 30" - 55" (762mm - 1397mm) |
| Wall Stud Compatibility | 16" (406mm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Width | 23.6 in (59.9 cm) |
All other specifications 12
| Adjustability | ExtensionLateral ShiftSwivelTilt |
| Application | Wall |
| Color | Black |
| Interface Included | Yes |
| Orientation | LandscapePortrait |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal and Custom |
| TAA Compliant | Yes |
| Tilt | +5° / -15° |
| UPC | 841872164304 |
| VESA Mounting Pattern | 100 x 100mm - 709 x 431mm |
| Certifications | TAA |
Resources
You'll need these with it
PAC526, Large In-Wall Storage Box
PAC526$116.80
M-Series CPU/DVD/Media Player Adapter-MAC251
MAC251$187.20
M-Series CPU/DVD/Media Player Adapter-MAC252
MAC252$172.80
M-Series Universal Interface Bracket-MSBUB
MSBUB$153.60
M-Series VESA Interface Bracket-MSBVB
MSBVB$125.60
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
PAC525, In-Wall Storage Box
PAC525$79.20
CMK10 CordMate Cord Organizer Kit
CMK10$25.59
Center Channel Speaker Adapter-PACCC2
PACCC2$262.40
Video Conferencing Camera Shelf - 14 Inch
PAC716$179.20
Large Accessory Shelf
PACCS1$147.20
M-Series Interface Brackets - MSB6364
MSB6364$125.60
Questions about this part
Will the MWRUB-G fit my display?
This mount is designed for 30" to 55" (762mm–1397mm) displays with VESA patterns ranging from 100 x 100mm to 709 x 431mm.
Can I rotate the screen between portrait and landscape?
The MWRUB-G supports both landscape and portrait orientations. To rotate the display without removing it from the mount, you will need the MAC400 accessory.
What is the total extension and depth of this mount?
The mount has a 25 inch extension. Note that the 3.4 in (8.6 cm) depth and extension measurements do not include the interface bracket, which adds 0.5" to 1.5" to the profile.
What tools and accessories are needed for installation?
This mount includes an interface. For specialized needs, you can add the PAC526 or PAC525 In-Wall Storage Boxes, or the CMK10 CordMate Cord Organizer Kit.
How do I adjust the display once it is mounted?
The MWRUB-G features Centris Technology for fingertip tilt adjustments (+5° / -15°), post-installation leveling rolls, and a 6" lateral shift for precise positioning.
