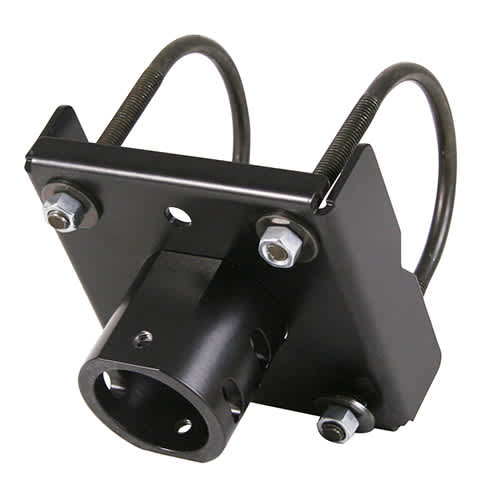

Pin Connection Pole and Truss Adapter
Truss adapter for pin connection poles, supporting 0.75"-3" OD clamps with a 500 lbs capacity
The Chief CPA365 Pin Connection Pole and Truss Adapter provides a secure method for attaching pin connection columns to structural trusses. Designed for professional installation, this adapter features a clamp range of 0.75" to 3" (19-76 mm) outer diameter, making it suitable for various truss sizes found in large-scale AV deployments. It is compatible with a wide range of Chief ceiling solutions, including LCM Single Display, MCM Single Display, and LCM Multi-Display Ceiling Mounts. This adapter is engineered to work with Chief CPA extension columns to extend the reach of your installation. The unit is TAA compliant and UL Listed, ensuring it meets necessary regulatory standards for professional projects. With a weight capacity of 500 lbs (226.8 kg), it provides a heavy-duty connection point for complex ceiling-mounted projection or display systems.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 7.25" x 7.25" x 5.25" (184.2 x 184.2 x 133.4 mm) |
| Shipping Weight | 4.5 lbs (2 kg) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Accessory Type | Ceiling Plates and Adapters |
| Color | Black |
| TAA Compliant | Yes |
| UPC | 841872156439 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Pin Connection Column 60 Inch (152.4 cm)-CPA060
CPA060$105.60
Pin Connection Column 48 Inch (121.9 cm)-CPA048
CPA048$84.80
Pre-Drilled Pin Connection Column 48 Inch (121.9 cm)
CPA048P$122.40
Pin Connection Column 36 Inch (91.2 cm)-CPA036
CPA036$60.00
Pin Connection Column 24 Inch (61 cm)-CPA024
CPA024$50.40
Pin Connection Column 18 Inch (45.7 cm)-CPA018
CPA018$48.80
Pin Connection Column 84 Inch (213.4 cm)
CPA084$162.40
Pre-Drilled Pin Connection Column 72 Inch (182.9 cm)
CPA072P$164.00
Pin Connection Column 96 Inch (243.8 cm)-CPA096
CPA096$164.80
Pin Connection Column 72 Inch (182.9 cm)-CPA072
CPA072$124.80
Pin Connection Column 120 Inch (304.8 cm)-CPA120
CPA120$208.00
Pin Connection Column 108 Inch (274.3 cm)
CPA108$188.80
Questions about this part
What truss sizes can the CPA365 clamp onto?
The CPA365 features a clamp range of 0.75" to 3" (19-76 mm) outer diameter.
Will this adapter work with my Chief LCM ceiling mount?
Yes, the CPA365 is compatible with LCM Single Display, LCM Multi-Display, and MCM Single Display Ceiling Mounts.
Can I use this with CPA extension columns?
Yes, this adapter is designed to work with Chief CPA extension columns to facilitate your installation.
What is the weight capacity of the CPA365?
The CPA365 has a rated weight capacity of 500 lbs (226.8 kg).
Where can I find the installation manual for the CPA365?
The CPA365 Installation Manual is available in PDF format in the Resources tab of the product page.
