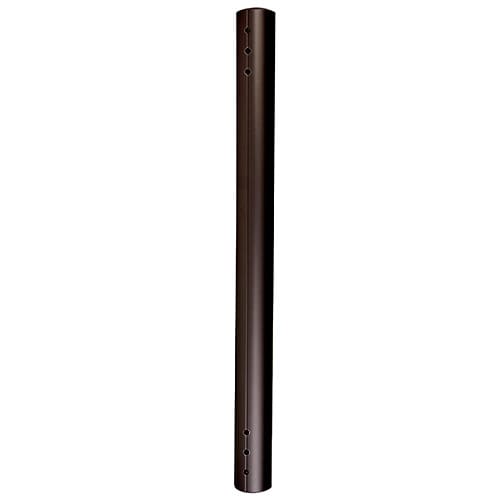

Pin Connection Column 24 Inch (61 cm)-CPA024
24 inch (61 cm) pin connection extension column for ceiling mounts with a 500 lbs capacity
The Chief CPA024 is a 24 in (61 cm) pin connection extension column designed to provide a professional-grade vertical extension for ceiling-mounted systems. This column is part of the CPA Extension Column series and features a dual pin connection system. By using two thread-forming screws at each column end into factory-pre-drilled holes, installers can achieve a secure connection that facilitates cable pass-through, as the fasteners do not pass completely through the center. This 24-inch component can be customized for specific installation heights because it can be cut to length or re-drilled. Additionally, the column can be threaded to 1.5" NPT. The outer surface includes integrated grooves that serve as drill guides and provide an aesthetic, professional appearance. This TAA compliant and UL listed component supports a weight capacity of 500 lbs (226.8 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Column Length | 24 in (61 cm) |
| Extension | 1 ft (0.3 m) |
| Shipping Dimensions | 26.5" x 2.25" x 2.25" (673.1 x 57.2 x 57.2 mm) |
| Shipping Weight | 2.7 lbs (1.2 kg) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Accessory Type | Extension |
| Color | Black |
| Column Install | Standard |
| TAA Compliant | Yes |
| UPC | 841872156682 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
6 Inch (152 mm) Speed-Connect Ceiling Plate
CMS115$63.20
8 Inch (203 mm) Offset Ceiling Plate
CMA330$66.40
6 Inch (152 mm) Ceiling Plate in White
CMA115W$63.20
8 Inch (203 mm) Ceiling Plate with Adjustable 1.5 Inch NPT Column in White
CMA100W$208.00
Angled Ceiling Plate
CMA395$66.40
8 Inch (203 mm) Ceiling Plate
CMA110$75.20
4 Inch (102 mm) Ceiling Plate
CMA105$49.60
6 Inch (152 mm) Ceiling Plate
CMA115$63.20
Angled Ceiling Plate in White
CMA395W$66.40
6 Inch (152 mm) Speed-Connect Ceiling Plate in White
CMS115W$63.20
8 Inch (203 mm) Ceiling Plate with Adjustable 1.5 Inch NPT Column in Black
CMA100$208.00
Pin Connection Offset Ceiling Plate
CPA330$82.40
Questions about this part
Will this column work with my existing Chief ceiling plates?
Yes, the CPA024 is compatible with all Chief Ceiling Plates, including models like the CMA110, CMA115, and CMA105, as well as dedicated pin connection ceiling plates.
How do I connect the CPA024 to the ceiling plate?
Connection is achieved by fastening two thread-forming screws at each column end into the factory-pre-drilled holes of the pin connection system.
Can I customize the length of the CPA024 column?
Yes, the column is designed for flexible installation and can be cut to length or re-drilled to meet your specific requirements.
Does the CPA024 allow for cable management?
Yes, the dual pin connection fasteners do not pass completely through the center of the column, which enables necessary cable pass-through.
Is this column TAA compliant for government contracts?
Yes, the CPA024 is TAA compliant and carries a UL listing.
