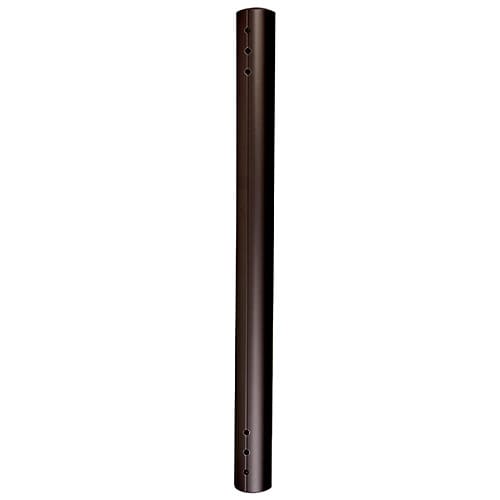

Pin Connection Column 48 Inch (121.9 cm)-CPA048
48 inch (121.9 cm) black extension column for Chief ceiling plates, 500 lbs capacity, TAA compliant
The CPA048 is a 48 inch (121.9 cm) extension column designed for use within the Chief Pin Connection column system. This black accessory provides a 3 ft (0.9 m) extension to customize the height of ceiling-mounted installations. It features a dual pin connection where fasteners are secured into factory pre-drilled holes at each column end using two thread-forming screws. Unlike standard fasteners, these do not pass completely through the center of the column, which maintains a clear path for cable pass-through. The column's outer surface includes integrated grooves that serve as drill guides and provide a professional aesthetic. For custom requirements, this column can be re-drilled, cut to a specific length, or threaded to 1.5" NPT. It is UL Listed and TAA compliant.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Column Length | 48 in (121.9 cm) |
| Extension | 3 ft (0.9 m) |
| Shipping Dimensions | 51" x 2.25" x 2.25" (129.5 x 5.7 x 5.7 cm) |
| Shipping Weight | 4.93 lbs (2.2 kg) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Accessory Type | Extension |
| Color | Black |
| Column Install | Standard |
| TAA Compliant | Yes |
| UPC | 841872156729 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
8 Inch (203 mm) Ceiling Plate with Adjustable 1.5 Inch NPT Column in Black
CMA100$208.00
6 Inch (152 mm) Speed-Connect Ceiling Plate
CMS115$63.20
8 Inch (203 mm) Offset Ceiling Plate
CMA330$66.40
6 Inch (152 mm) Ceiling Plate in White
CMA115W$63.20
8 Inch (203 mm) Ceiling Plate with Adjustable 1.5 Inch NPT Column in White
CMA100W$208.00
Angled Ceiling Plate
CMA395$66.40
8 Inch (203 mm) Ceiling Plate
CMA110$75.20
4 Inch (102 mm) Ceiling Plate
CMA105$49.60
6 Inch (152 mm) Ceiling Plate
CMA115$63.20
Angled Ceiling Plate in White
CMA395W$66.40
6 Inch (152 mm) Speed-Connect Ceiling Plate in White
CMS115W$63.20
Pin Connection Offset Ceiling Plate
CPA330$82.40
Questions about this part
What ceiling plates are compatible with the CPA048?
This column is compatible with all Chief Ceiling Plates, including the CPA261 and CPA262 series. It is also designed for use with dedicated pin connection ceiling plates.
Can the CPA048 column be customized for specific heights?
Yes, the column can be cut to a custom length for your installation and can also be re-drilled or threaded to 1.5" NPT if required.
Will this column allow for cable pass-through?
Yes. Because the dual pin connection fasteners do not pass completely through the center of the column, it enables cable pass-through for a cleaner installation.
Is the CPA048 TAA compliant for government projects?
Yes, this specific 48 inch extension column is TAA compliant and UL Listed.
What is the weight capacity of this extension column?
The CPA048 has a rated weight capacity of 500 lbs (226.8 kg).
