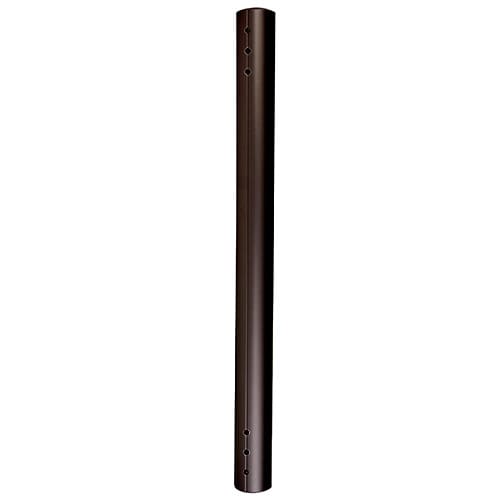

Pin Connection Column 96 Inch (243.8 cm)-CPA096
96 inch (243.8 cm) extension column with dual pin connection, 500 lbs weight capacity, and TAA compliance
The Chief CPA096 is a 96 inch (243.8 cm) extension column within the CPA series designed for professional floor-to-ceiling or ceiling-to-floor installations. This 7 ft (2.1 m) column utilizes a dual pin connection system where fasteners secure into factory pre-drilled holes to ensure a stable assembly. Unlike standard columns, the fasteners do not pass completely through the center, which allows for unobstructed cable pass-through. Installers can customize the column for specific site requirements by cutting it to length, re-drilling the surface, or threading it to 1.5" NPT. The outer surface features integrated grooves that serve as drill guides and provide a professional aesthetic. This TAA compliant component is rated for a weight capacity of 500 lbs (226.8 kg). It is compatible with all Chief Ceiling Plates, including the CPA261 and CPA262, as well as dedicated pin connection ceiling plates.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Column Length | 96 in (243.8 cm) |
| Extension | 7 ft (2.1 m) |
| Shipping Dimensions | 101" x 2" x 2" (256.5 x 5.1 x 5.1 cm) |
| Shipping Weight | 11 lbs (5 kg) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Accessory Type | Extension |
| Color | Black |
| Column Install | Standard |
| TAA Compliant | Yes |
| UPC | 841872158884 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Truss Clamp - CPA Compatible
CPA380$138.40

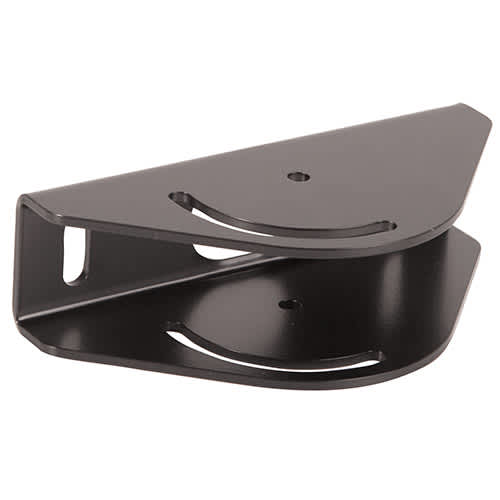

Pin Connection Angled Ceiling Plate
CPA395$82.40
Pin Connection Pole and Truss Adapter
CPA365$103.20
Floor-to-Ceiling Clamp-Style Plate
CPA353$223.20
Floor-to-Ceiling Low-Profile Collar Plate
CPA351$314.40
Pin Connection Offset Ceiling Plate
CPA330$82.40
24 Inch (609 mm) Dual Joist Ceiling Mount
CMS394$147.20
16 Inch (406 mm) Dual Joist Ceiling Mount
CMS393$107.20
6 Inch (152 mm) Speed-Connect Ceiling Plate in White
CMS115W$63.20
6 Inch (152 mm) Speed-Connect Ceiling Plate
CMS115$63.20
6 Inch (152 mm) Ceiling Plate with Adjustable Column in White
CMA700W$150.40
Angled Ceiling Plate
CMA395$66.40
Questions about this part
Will the CPA096 work with my existing Chief ceiling plates?
Yes, this column is compatible with all Chief Ceiling Plates, such as the CPA261 and CPA262, as well as dedicated pin connection ceiling plates.
How do I install the cable through the CPA096 column?
The dual pin connection uses fasteners that do not pass completely through the center of the column, enabling an open path for cable pass-through.
Can this column be modified to fit a specific height?
Yes, the CPA096 can be customized to your installation by being cut to length, re-drilled, or threaded to 1.5" NPT.
What is the maximum load capacity for this extension column?
The CPA096 is rated for a weight capacity of 500 lbs (226.8 kg).
Is this product TAA compliant for government contracts?
Yes, the CPA096 is TAA compliant and UL listed.
