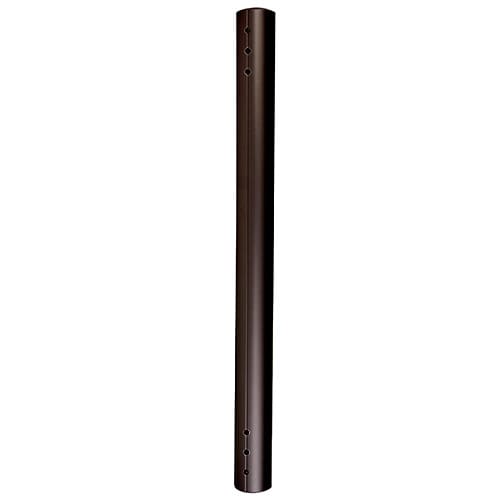

Pin Connection Column 18 Inch (45.7 cm)-CPA018
18 in (45.7 cm) extension column for pin connection ceiling plates with a 500 lbs capacity
The CPA018 is an 18 in (45.7 cm) extension column within the Chief CPA Column system. This pin connection accessory provides a professional appearance for ceiling-mounted installations while maintaining a high weight capacity of 500 lbs (226.8 kg). Connection is achieved by fastening two thread-forming screws at each column end into factory-pre-drilled holes. To facilitate easier installation and cabling, the fasteners do not pass completely through the center of the column, allowing for necessary cable pass-through. The outer surface features integrated grooves that serve as both an aesthetic detail and drill guides. For custom installation requirements, this column can be re-drilled or cut to length. It can also be threaded to 1.5" NPT to accommodate specific mounting configurations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Column Length | 18 in (45.7 cm) |
| Extension | 18 in (45.7 cm) |
| Shipping Dimensions | 21" x 2.25" x 2.25" (533.4 x 57.2 x 57.2 mm) |
| Shipping Weight | 1.94 lbs (0.9 kg) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Accessory Type | Extension |
| Color | Black |
| Column Install | Standard |
| TAA Compliant | Yes |
| UPC | 841872156668 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
6 Inch (152 mm) Speed-Connect Ceiling Plate
CMS115$63.20
8 Inch (203 mm) Offset Ceiling Plate
CMA330$66.40
6 Inch (152 mm) Ceiling Plate in White
CMA115W$63.20
8 Inch (203 mm) Ceiling Plate with Adjustable 1.5 Inch NPT Column in White
CMA100W$208.00
Angled Ceiling Plate
CMA395$66.40
8 Inch (203 mm) Ceiling Plate
CMA110$75.20
4 Inch (102 mm) Ceiling Plate
CMA105$49.60
6 Inch (152 mm) Ceiling Plate
CMA115$63.20
Angled Ceiling Plate in White
CMA395W$66.40
6 Inch (152 mm) Speed-Connect Ceiling Plate in White
CMS115W$63.20
8 Inch (203 mm) Ceiling Plate with Adjustable 1.5 Inch NPT Column in Black
CMA100$208.00
Pin Connection Offset Ceiling Plate
CPA330$82.40
Questions about this part
Will the CPA018 work with my existing Chief ceiling plate?
The CPA018 is compatible with all Chief Ceiling Plates, including the CPA261 and CPA262 series, as well as dedicated pin connection ceiling plates like the CPA330.
Can the CPA018 be customized for a specific height?
Yes, the column can be cut to your required length or re-drilled to accommodate your specific installation needs.
How is the CPA018 connected to the ceiling plate?
Connection is made by securing two thread-forming screws into the factory pre-drilled holes located at each end of the column.
Is the CPA018 TAA compliant?
Yes, this column is TAA compliant and is UL listed for professional installations.
Can I run cables through the middle of this column?
Yes, the fasteners do not pass completely through the center of the column, which enables cable pass-through for a cleaner installation.
