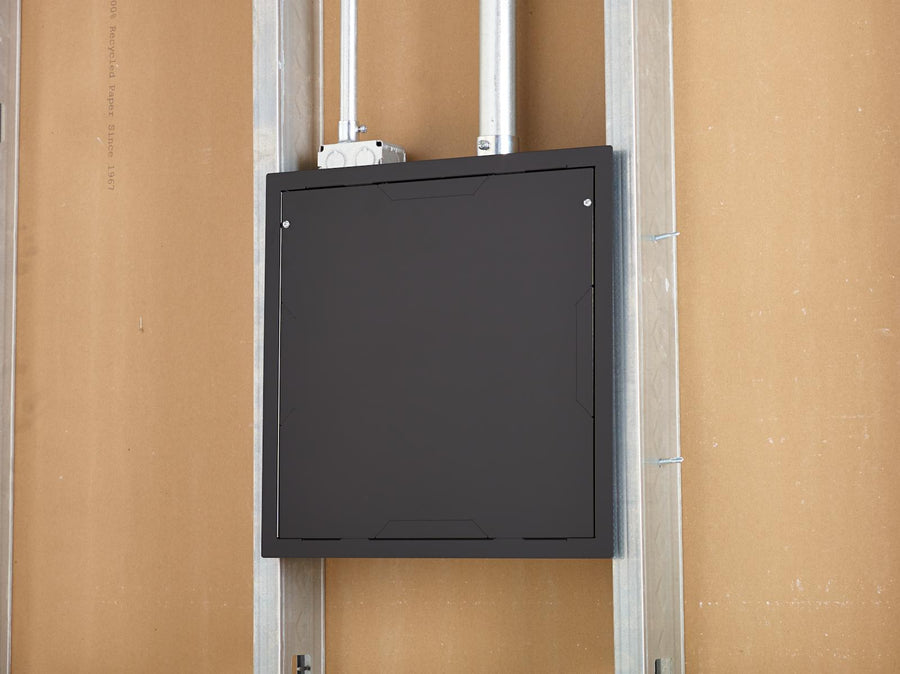

PAC526FC, Large In-Wall Storage Box with Flange and Cover
In-wall storage box with flange and cover for organized cable routing and power management in large displays
The PAC526FC simplifies flat panel installations by providing a recessed, organized space for routing excess cabling and housing surge protectors or power conditioners. This large in-wall storage box features a black flange and cover, which facilitates professional drywall mounting and provides a clean, finished aesthetic for digital signage or on-wall kiosk solutions. The unit has a depth of 3.9 in (9.9 cm), a height of 14.25 in (36.2 cm), and a width of 14.25 in (36.2 cm). It is UL Listed and carries a weight capacity of 10 lbs (4.5 kg). To achieve a complete power solution, this box is compatible with several Proximity® power kits, including the PAC526P2-KIT (two outlet), PAC526P4-KIT (four outlet), and PAC526P6-KIT (six outlet). It is designed for use with Chief's professional mounting lines, including PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, PDR, Thinstall™, and Fusion® wall mounts.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3.9 in (9.9 cm) |
| Height | 14.25 in (36.2 cm) |
| Shipping Dimensions | 21" x 20" x 4.88"(533.4 x 508 x 124 mm) |
| Shipping Weight | 13.3 lbs (6 kg) |
| Weight Capacity | 10 lbs (4.5 kg) |
| Width | 14.25 in (36.2 cm) |
| Accessory Type | In-Wall |
| Application | In-Wall |
All other specifications 7
| Color | Black |
| Cover Color | Black |
| Flange Color | Black |
| Special Features | Flanges, Covers |
| TAA Compliant | No |
| UPC | 841872161464 |
| Certifications | UL Listed |
Resources
You'll need these with it
Large Thinstall™ Dual Swing Arm Wall Display Mount - 25 Inch Extension
TS525TU$649.60
Proximity® Two Outlet PAC526 Power Kit
PAC526P2-KIT$232.80
Proximity® Six Outlet PAC526 Power Kit
PAC526P6-KIT$702.40
Proximity® Four Outlet PAC526 Power Kit
PAC526P4-KIT$466.40
Large Fusion® Micro-Adjustable Fixed Wall Display Mount
LSM1U$247.20
Large Fusion® Fixed Wall Display Mount
LSA1U$186.40
Medium Thinstall™ Single Swing Arm Wall Display Mount - 18 Inch Extension
TS318SU$388.80
Medium Thinstall™ Dual Swing Arm Wall Display Mount - 18 Inch Extension
TS318TU$456.00
Medium Thinstall™ Dual Swing Arm Wall Display Mount - 25 Inch Extension
TS325TU$519.20
Medium Fusion® Micro-Adjustable Fixed Wall Mount
MSM1U$186.40
PNR2000B, Large Flat Panel Swing Arm Wall Mount - 25 Inch (without interface)
PNR2000B$756.80
Proximity® Lever Lock™ Plate for PAC526/PAC527L In-Wall Storage Box
PACL2$72.80
Questions about this part
Which Chief mounts are compatible with the PAC526FC?
This storage box is compatible with a wide range of mounts, including Thinstall™, Fusion®, PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, PDR, and various Proximity® series mounts.
What power kits can I use with the PAC526FC?
You can install several Proximity® power kits into this box, specifically the PAC526P2-KIT, PAC526P4-KIT, or PAC526P6-KIT.
How much weight can the PAC526FC hold?
The storage box has a weight capacity of 10 lbs (4.5 kg) for internal components like power conditioners or surge protectors.
What are the dimensions for the installation cutout?
The unit measures 14.25 in (36.2 cm) in height and width, with a recessed depth of 3.9 in (9.9 cm).
What document should I use for installation instructions?
The PAC525 526 Installation Manual (PDF) provides the necessary guidance for installing this storage box.
