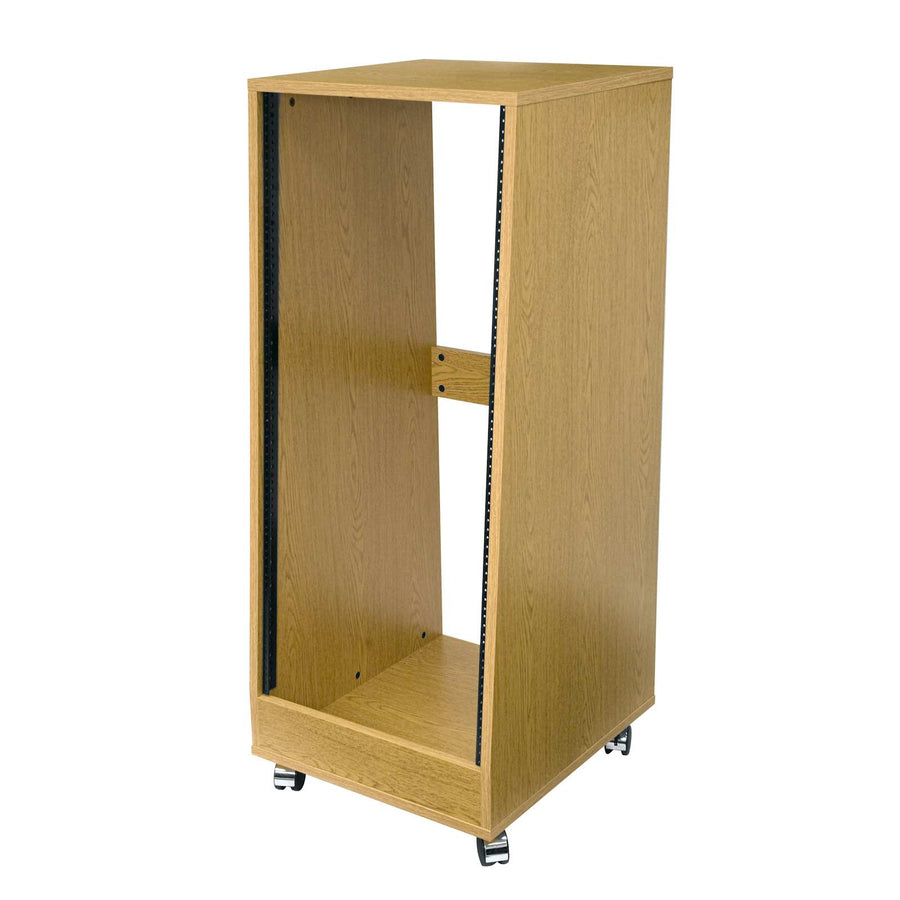

OSR Series Sloped Oak Rolling Rack - OSR24
24 RU sloped oak laminate rolling rack with a 5° angled face for improved equipment visibility and a 200 lbs capacity
The Middle Atlantic OSR24 is a 24 RU sloped oak laminate rolling rack designed to improve equipment visibility in professional environments. It features a 5° sloped rack face, allowing users to more easily view and interact with mounted hardware. Built from sturdy 3/4" oak laminate, this rack is TAA compliant and PEP certified. This knockdown rack arrives ready-to-assemble, allowing for flat shipment via UPS. It includes pre-installed, heavy-gauge 10-32 threaded front rackrails and integrated casters for mobility. The unit has a total height of 50.37 in (127.9 cm) and a width of 20.7 in (52.6 cm). With a total depth of 23 in (58.4 cm), the usable depth is 19.24 in (48.9 cm) and the usable height is 42 in (106.7 cm). This rack supports a weight capacity of 200 lbs (90.7 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 23 in (58.4 cm) |
| Height | 50.37 in (127.9 cm) |
| Rack Units | 24 RU |
| Usable Depth | 19.24 in (48.9 cm) |
| Usable Height | 42 in (106.7 cm) |
| Weight Capacity | 200 lbs (90.7 kg) |
| Width | 20.7 in (52.6 cm) |
| Finish | Oak Laminate |
| Material | Wood |
| Rack Rail Type | 10-32 |
| Rack Type | Knockdown |
| UPC | 656747012242 |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
23 RU Lace Strip 4.75 Inches Wide with Tie Posts - 6 Piece
LACE-23-OWP$282.60
23 RU Lace Strip 3.25 Inches Wide with Tie Posts - 6 Piece
LACE-23-OP$250.20
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
Questions about this part
Will the OSR24 fit my equipment height requirements?
The OSR24 provides a usable height of 42 in (106.7 cm) across 24 rack units, making it suitable for standard rack-mounted hardware.
What is the weight capacity of the OSR24 rack?
The OSR24 is rated for a weight capacity of 200 lbs (90.7 kg) to support your mounted components.
How does the OSR24 differ from other OSR series racks?
The OSR24 is a 24 RU version; the OSR series also includes a 16 RU model as noted in the series variations.
What do I need to install the OSR24?
The OSR24 is a knockdown rack that ships ready-to-assemble; refer to the OSR Instruction Sheet (PDF) for assembly guidance.
What accessories are compatible with this rack?
You can use various accessories including Wide Unit Shelf Systems like the WUSS20-5 or Select Series PDUs such as the RLNK-215.
