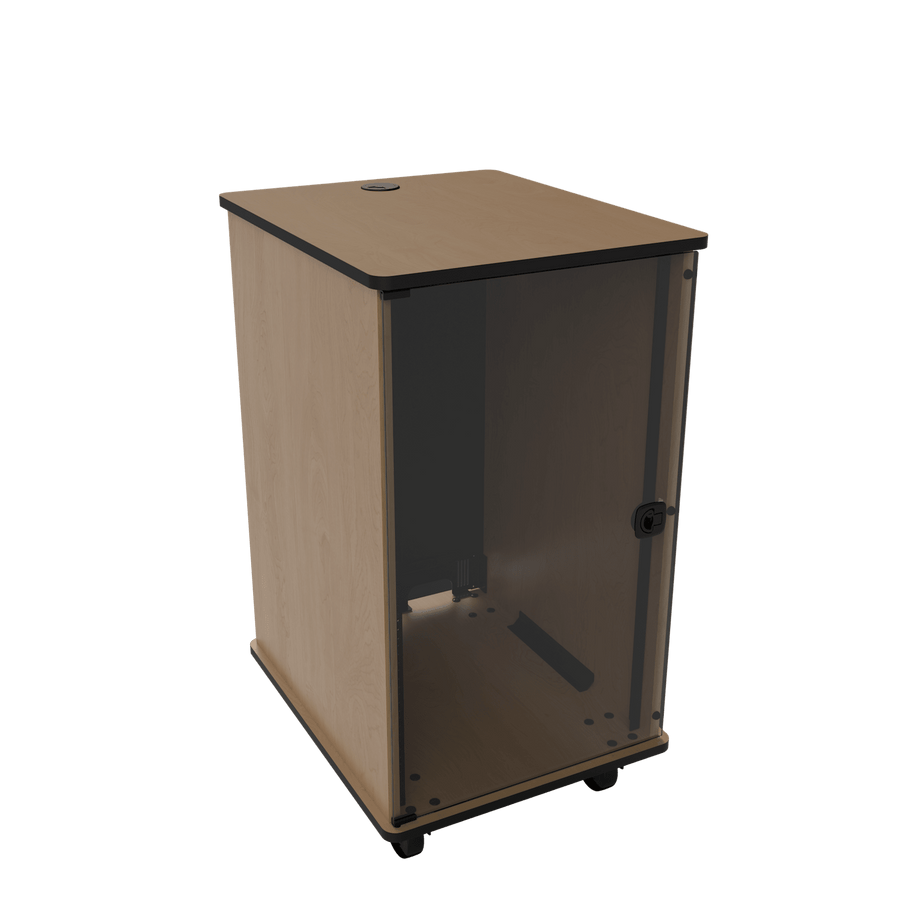

MFR Series Mobile Furniture Rack - MFR-2027E1
20 RU mobile furniture rack in Kensington Maple, featuring a 250 lbs UL load capacity and monitor mounting capability
The Middle Atlantic MFR-2027E1 is a 20 RU mobile furniture rack finished in Kensington Maple, designed for professional AV environments that require both mobility and aesthetic integration. This wood construction rack is engineered for reliability, utilizing rigid construction and premium bolt-through casters to ensure stable, trouble-free service during transport. The unit features a 19 in (48.3 cm) panel width and is equipped with 10-32 rack rails for standard equipment mounting. It offers a usable height of 35.16 in (89.3 cm) and a usable depth of 23.19 in (58.9 cm). This specific model is UL Listed and carries a UL load capacity of 250 lbs (113.4 kg). For thermal management or power organization, this rack is compatible with several accessories, including the MFR-FANKIT-2 50 CFM Fan Kit and various Select Series PDUs like the RLNK-215. The unit arrives fully assembled, ready for immediate deployment in controlled environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 27.37 in (69.5 cm) |
| Height | 42.03 in (106.8 cm) |
| Panel Width | 19 in (48.3 cm) |
| Rack Units | 20 RU |
| Shipping Weight | 121 lbs (54.9 kg) |
| UL Load Capacity | 250 lbs (113.4 kg) |
| Usable Depth | 23.19 in (58.9 cm) |
| Usable Height | 35.16 in (89.3 cm) |
All other specifications 7
| Width | 22.63 in (57.5 cm) |
| Color | Kensington Maple |
| Material | Wood |
| Monitor Mounting | Yes |
| Rack Rail Type | 10-32 |
| UPC | 656747408052 |
| Certifications | UL Listed |
Resources
You'll need these with it

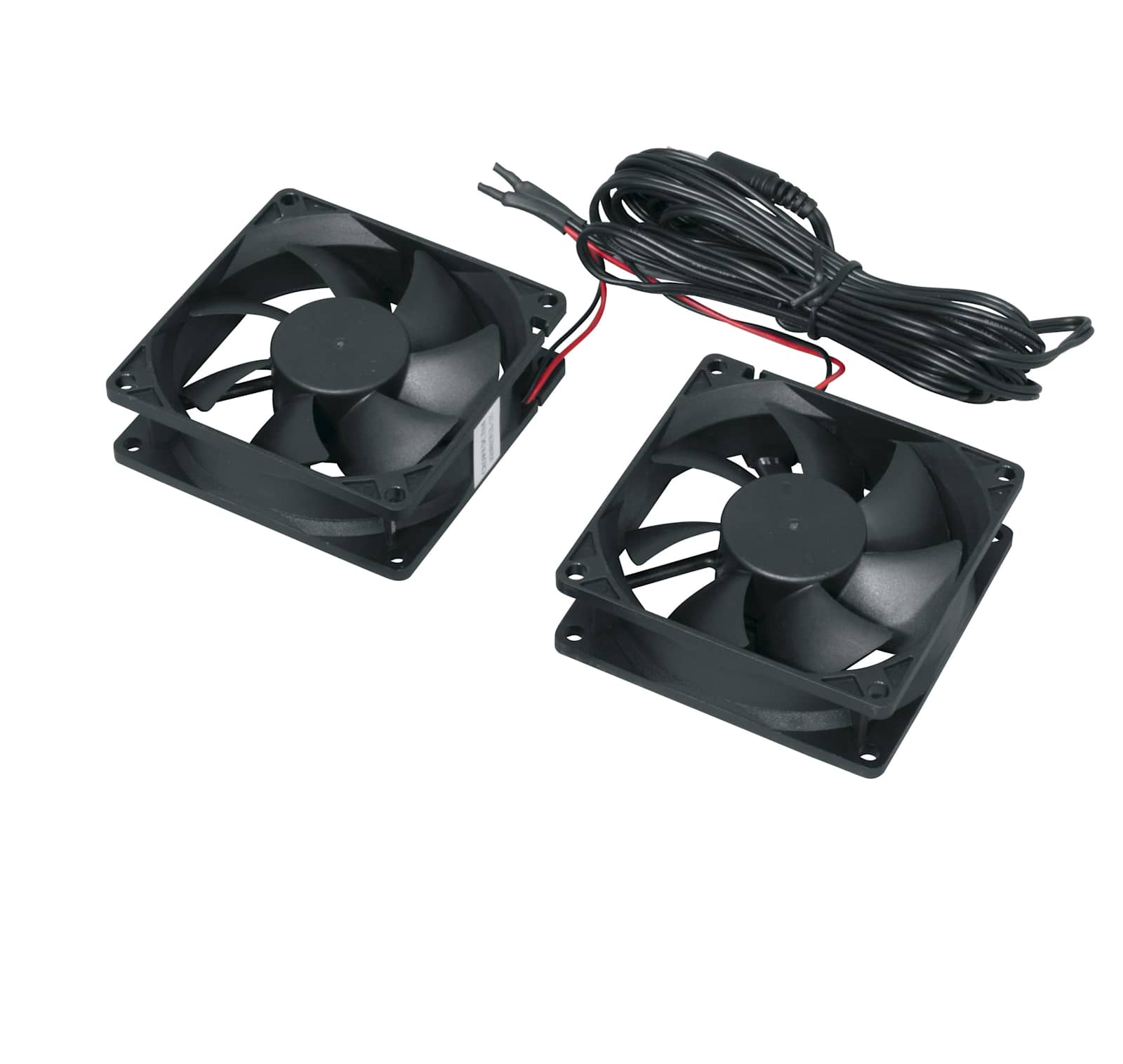

50 CFM Fan Kit for MFR Series Rack
MFR-FANKIT-2$162.90
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
50 CFM Fan Kit for MFR Series Rack, 220 - 240VAC
IMFR-FANKIT-2$162.90
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
Questions about this part
Will this rack fit my standard 19-inch equipment?
Yes, the MFR-2027E1 features a standard 19 in (48.3 cm) panel width and uses 10-32 rack rails for mounting.
What is the maximum weight this mobile rack can support?
This unit is UL Listed with a specific UL load capacity of 250 lbs (113.4 kg).
What accessories are compatible with the MFR-2027E1?
You can add cooling or power via the MFR-FANKIT-2 50 CFM Fan Kit or a Select Series PDU such as the RLNK-215.
Does this rack require assembly upon arrival?
No, this MFR Series mobile furniture rack ships fully assembled to save time during installation.
How much usable depth is available for my components?
The rack has a total depth of 27.37 in (69.5 cm), providing a usable depth of 23.19 in (58.9 cm).
