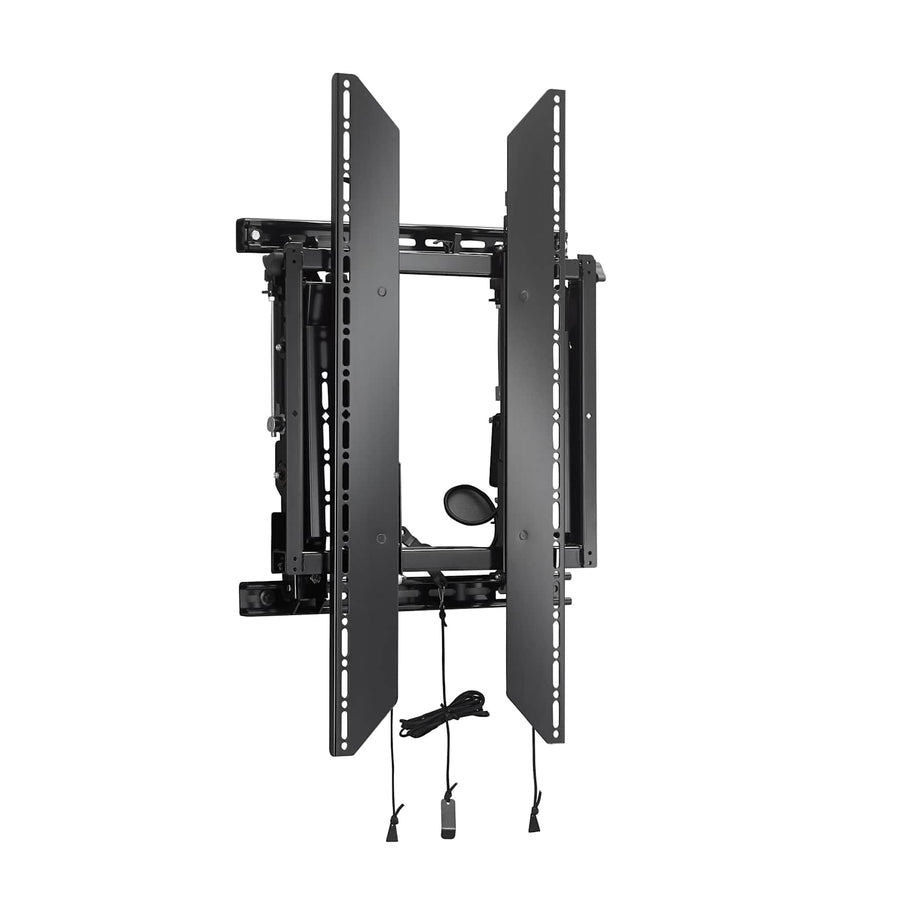

LVSXUP, ConnexSys™ Video Wall Portrait Mounting System without Rails
Portrait orientation video wall mount for 40"–80" displays with tilt and lateral shift adjustment
The Chief LVSXUP is a portrait-oriented component of the ConnexSys™ Video Wall Mounting System, engineered to solve alignment, serviceability, and rigidity challenges in professional video wall installations. This universal solution supports a typical screen size range of 40" to 80" (1016–2032 mm) and accommodates VESA mounting patterns from 200 x 100mm up to 800 x 400mm. Each mount has a weight capacity of 150 lbs (68 kg) and provides critical post-installation adjustments, including lateral shift, height adjustment, extension, and micro-adjustability to ensure perfectly leveled rows. This specific SKU is designed for portrait orientation and does not include rails; it is intended to be used with ConnexSys™ strut channels, such as the CSAS060, CSAS072, or CSAS090, to connect multiple mounts into a single, rigid structure. For installers requiring specialized hardware for specific brands, the system is compatible with various accessories including the FHB5147 Universal Flat Panel Mount Hardware kit and the FHB5104 Fusion® and Thinstall™ Hardware Kits.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 4.1 in (10.4 cm) |
| Height | 32.5 in (82.6 cm) |
| Minimum Depth | 4 in (101.6 mm) |
| Shipping Weight | 38 lbs (17.2 kg) |
| Typical Screen Size | 40" - 80" (1016mm - 2032mm) |
| Weight Capacity | 150150 lbs (68 kg) |
| Width | 19.5 in (49.5 cm) |
| Adjustability | Extension, Micro-Adjustable, Height Adjustable, Lateral Shift |
All other specifications 12
| Application | Wall |
| Color | Black |
| Number of Displays | 1 |
| Orientation | Portrait |
| Solution Type | Universal |
| Special Features | Multi-Display |
| TAA Compliant | No |
| Tilt | +4°-2.5° |
| UPC | 841872161181 |
| VESA Mounting Pattern | 200 x 100mm - 800 x 400mm |
| With Rails | No |
| Certifications | TUVUL ListedUL Listed |
Resources
You'll need these with it
Bracket for Outdoor Samsung 46 Inch Display
FHBO5169$956.00
Brackets for Outdoor 55 Inch Displays
FHBO5168$956.00
Fusion® and Thinstall™ Hardware Kits
FHB5104$273.60
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Universal Flat Panel Mount Hardware kit
FHB5147$16.00
ConnexSys™ Video Wall Strut Channel 60 Inch
CSAS060$120.80

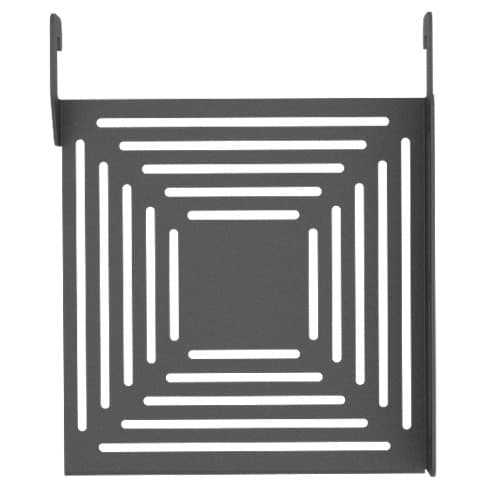

ConnexSys™ Device Holder
CSA100$93.60
Side Cover Kit with ConnexSys™ Brackets, 6 Inch Depth
CSACK06B$441.60
ConnexSys™ Video Wall Strut Channel 72 Inch
CSAS072$144.80

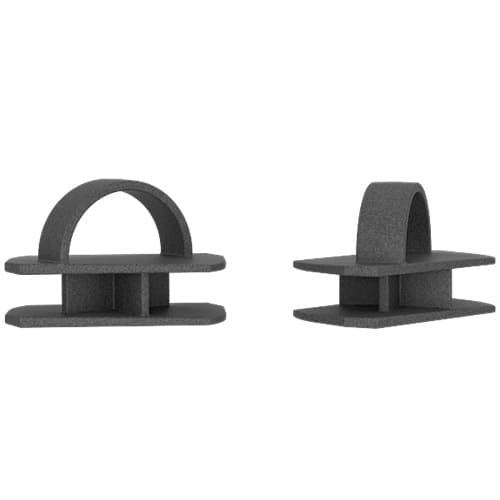

ConnexSys™ Cable Quick Ties (25 PK)
CSACLIPS$42.40
Freestyle Flat Panel Rotation Adapter
FRA$341.60
ConnexSys™ Video Wall Strut Channel 90 Inch
CSAS090$156.00
Verified fitment
Questions about this part
Will the LVSXUP fit my specific display?
It is verified against 10,674 display models from 347 manufacturers, including Samsung 400CX, Sony 50BZ30P, LG 100QNED8, and Panasonic LH86QM1KD.
Does this mount include the rails required for a video wall?
No, this SKU is the mounting component only and does not include rails. You will need to purchase ConnexSys™ Strut Channels, such as the CSAS060, CSAS072, or CSAS090, to create the mounting structure.

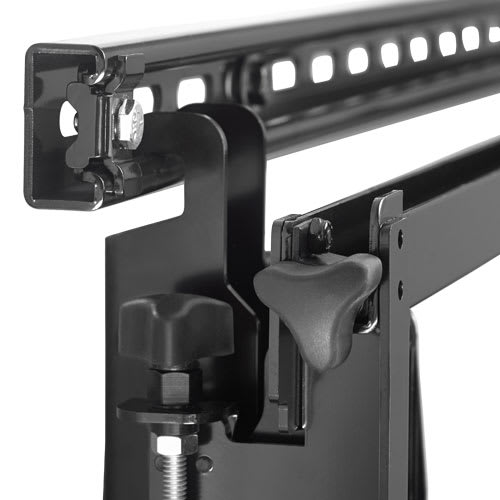

What kind of adjustments can I make after the display is mounted?
The LVSXUP features height adjustment, lateral shift, extension, and micro-adjustment capabilities, along with a tilt range of +4° to -2.5° to facilitate precise alignment.
What is required for a professional submittal for this mount?
The LVSXUP Technical Drawing (PDF) and CAD Drawing (dwg) are available for planning, and a Revit Model (rfa) is provided for BIM integration.
What is the weight capacity of this individual mount?
Each LVSXUP mount supports a weight capacity of 150 lbs (68 kg) for displays within the 40" to 80" size range.
