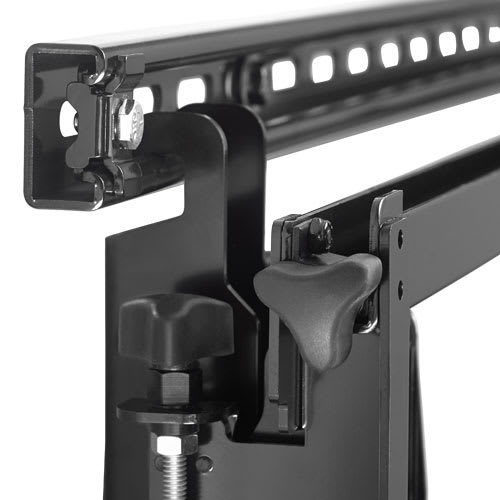

ConnexSys™ Video Wall Strut Channel 72 Inch
72 inch pre-painted black strut channel for the ConnexSys™ Video Wall Mounting System to facilitate rapid row leveling
The Chief CSAS072 is a 72 in (182.9 cm) pre-painted black strut channel designed specifically for use with the ConnexSys™ Video Wall Mounting System. This component is essential for installers managing multi-display configurations, such as large-scale menu boards or complex video walls, as it allows for easy leveling of multiple mounting rows without the need for horizontal spacers. This 72 inch channel is equivalent in size to most standard 1-5/8" x 13/16" channel strut. It is an ideal solution for reducing installation time, particularly when working with extra-large or recessed display configurations. This TAA compliant channel provides the necessary structural support for wall applications while ensuring precise lateral shift adjustability across the mounting plane.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 0.84 in (2.1 cm) |
| Height | 72 in (182.9 cm) |
| Length | 72 in (182.9 cm) |
| Overall Dimensions | 72" x 1.65" x 0.84" (1829 x 42 x 21 mm) |
| Shipping Weight | 13.1 lbs (5.9 kg) |
| Width | 1.65 in (4.2 cm) |
| Accessory Type | InstallationLateral ShiftMulti-Display |
| Adjustability | Lateral Shift |
All other specifications 6
| Application | Wall |
| Color | Black |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| UPC | 841872171395 |
| Certifications | TAA |
Questions about this part
Will this work with my ConnexSys™ Video Wall system?
Yes, the CSAS072 is designed specifically for use within the ConnexSys™ Video Wall Mounting System to support multi-display and lateral shift adjustments.
How does this strut channel help with video wall leveling?
This 72 inch channel allows you to hang units on a single strut, which facilitates quick row leveling without the need for additional horizontal spacers.
What is the difference between this and other ConnexSys™ strut channels?
The CSAS072 is a 72 in (182.9 cm) variant; the ConnexSys™ series is also available in 60 in and 90 in lengths.
Is this product TAA compliant?
Yes, this strut channel is TAA compliant for projects requiring adherence to these standards.
What type of installation does this support?
This channel is designed for wall applications and supports multi-display configurations and lateral shift adjustments.
