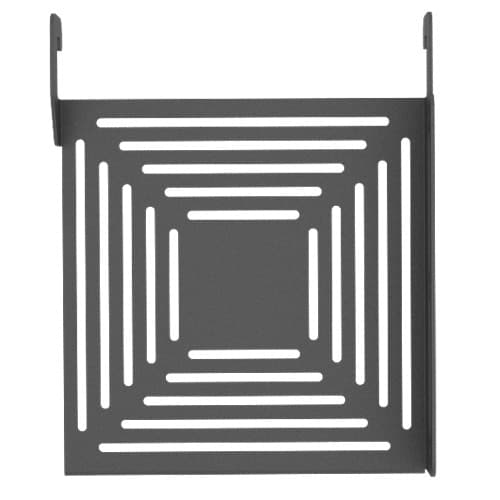

ConnexSys™ Device Holder
Component storage for ConnexSys™ Video Wall Mounting Systems, supporting up to 10 lbs of equipment
The CSA100 is a component storage solution designed for secure attachment of AV equipment behind any ConnexSys™ Video Wall Mounting System. This device holder features a slot design that allows installers to easily attach various devices to the mounting structure. It is engineered to hang directly from the strut channel for efficient on-display application. For integrators managing power distribution, a power strip can be attached to the side of the holder when used in conjunction with the LVS1U or LVSXU. This TAA compliant accessory is built for multi-display environments where organized, secure component mounting is required. The unit measures 9.85" x 7.97" x 1.49" (250 x 202 x 38 mm) and has a weight capacity of 10 lbs (4.5 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 1.49 in (3.8 cm) |
| Height | 9.85 in (25 cm) |
| Overall Dimensions | 9.85" x 7.97" x 1.49" (250 x 202 x 38 mm) |
| Shipping Weight | 2 lbs (0.9 kg) |
| Weight Capacity | 10 lbs (4.5 kg) |
| Width | 7.97 in (20.2 cm) |
| Accessory Type | Component Storage |
| Application | On-Display |
All other specifications 5
| Color | Black |
| Special Features | Multi-Display |
| TAA Compliant | Yes |
| UPC | 841872164557 |
| Certifications | TAA |
Resources
Questions about this part
Will the CSA100 work with my ConnexSys™ system?
Yes, the CSA100 is intended specifically for use with the ConnexSys™ Video Wall Mounting System to secure components behind displays.
Can I mount a power strip to this holder?
A power strip can be attached to the side of the CSA100 if it is used alongside an LVS1U or LVSXU.
What is the maximum weight this holder can support?
The CSA100 has a weight capacity of 10 lbs (4.5 kg).
How is the CSA100 attached to the mounting system?
The holder is designed to hang easily from the strut channel using its integrated slot design.
Which technical documents are available for submittals?
You can access the CSA100 Instruction Manual, Technical Drawing, and CAD Drawing in the Resources tab.
