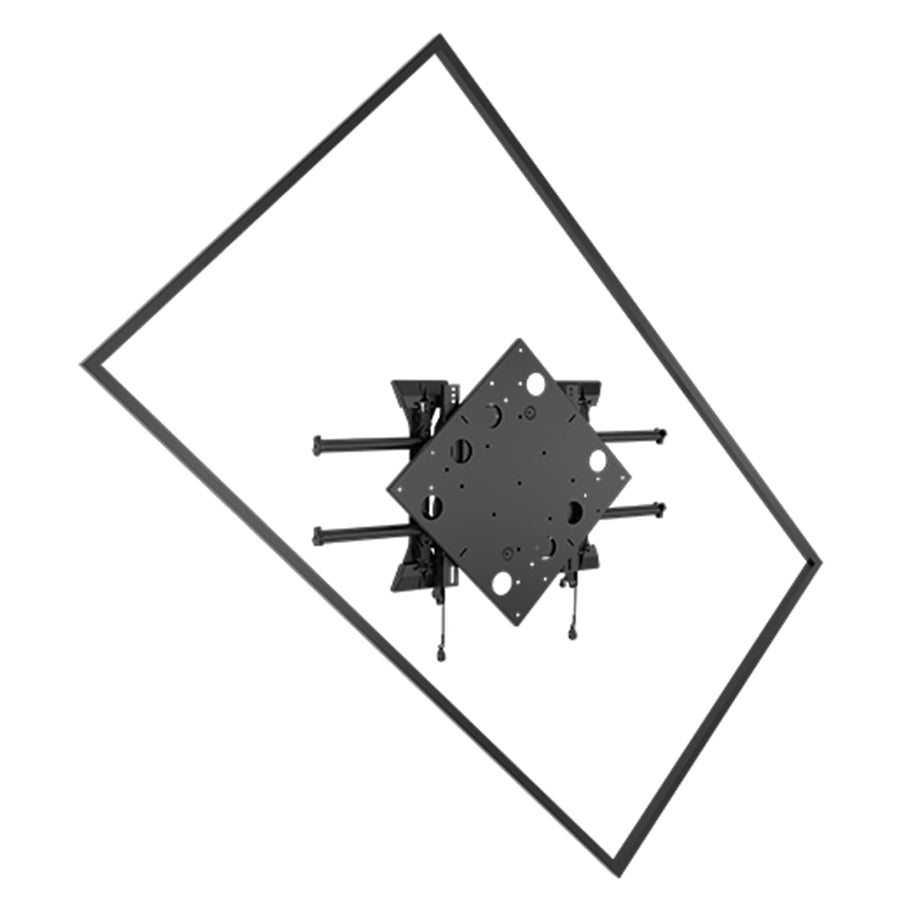

Freestyle Flat Panel Rotation Adapter
Rotation adapter for Fusion® and ConnexSys™ mounts providing 360° range and 15-degree positive lockouts
The Chief FRA Freestyle Rotation Adapter is designed to provide installers and designers with the flexibility to create diverse video display wall configurations. This adapter works with both Fusion® and ConnexSys™ mounting systems, allowing for displays to be oriented in either landscape or portrait modes. By providing 90 degrees of rotation, the adapter achieves a full 360-degree range of motion. For security and stability during adjustment, the unit features positive lockouts at 15-degree increments. When used in conjunction with Fusion® FCADA, users can create overlapping display patterns for customized creative layouts. Installation options include ceiling, wall, and floor-cart applications. The weight capacity varies by the mounting system used: it supports up to 125 lbs (56.7 kg) with ConnexSys™ or 55 lbs (24.95 kg) when used with MTMS1U or STMS1U. This TAA compliant adapter is essential for dynamic environments requiring frequent screen orientation shifts.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 0.84 in (2.1 cm) |
| Height | 17.25 in (43.8 cm) |
| Minimum Depth | 0.84 in (2.1 cm) |
| Overall Dimensions | 17.25 x 17.25 x 0.84" (438 x 438 x 21 mm) |
| Shipping Weight | 17 lbs (7.7 kg) |
| Weight Capacity | With MTMS1U, STMS1U 55 lbs (24.95 kg): With ConnexSys 125 lbs (56.7 kg) |
| Width | 17.25 in (43.8 cm) |
| Application | CeilingFloor-CartWall |
All other specifications 6
| Color | Black |
| Orientation | LandscapePortrait |
| Solution Type | Universal |
| TAA Compliant | Yes |
| UPC | 841872169910 |
| Certifications | TAA |
Resources
You'll need these with it

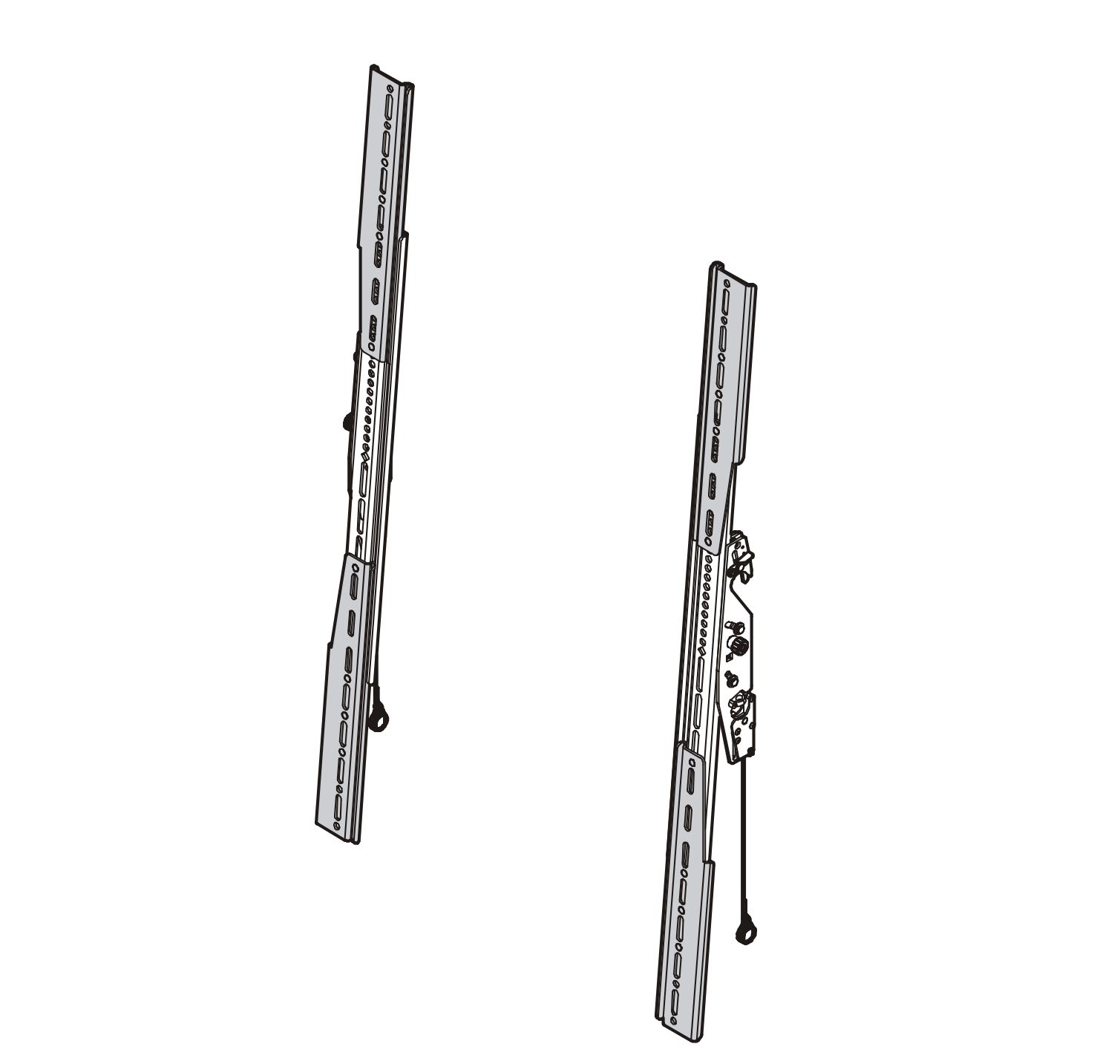

FHB5038 Fusion® Vesa Adaptor
FHB5038$118.40
Fusion® and Thinstall™ Hardware Kits-FHB5037
FHB5037$48.80
Bracket for Outdoor Samsung 46 Inch Display
FHBO5169$956.00

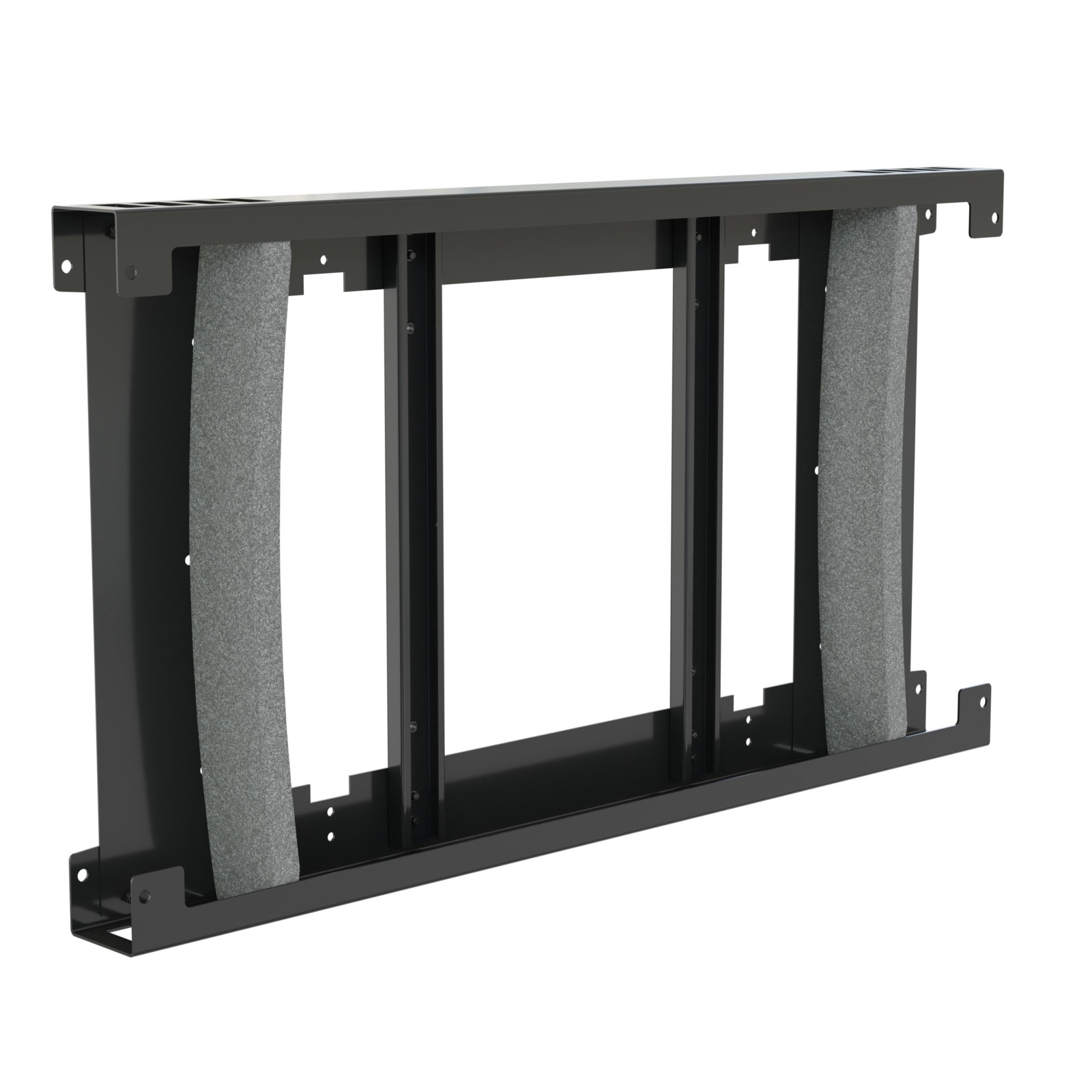

Brackets for Outdoor 55 Inch Displays
FHBO5168$956.00

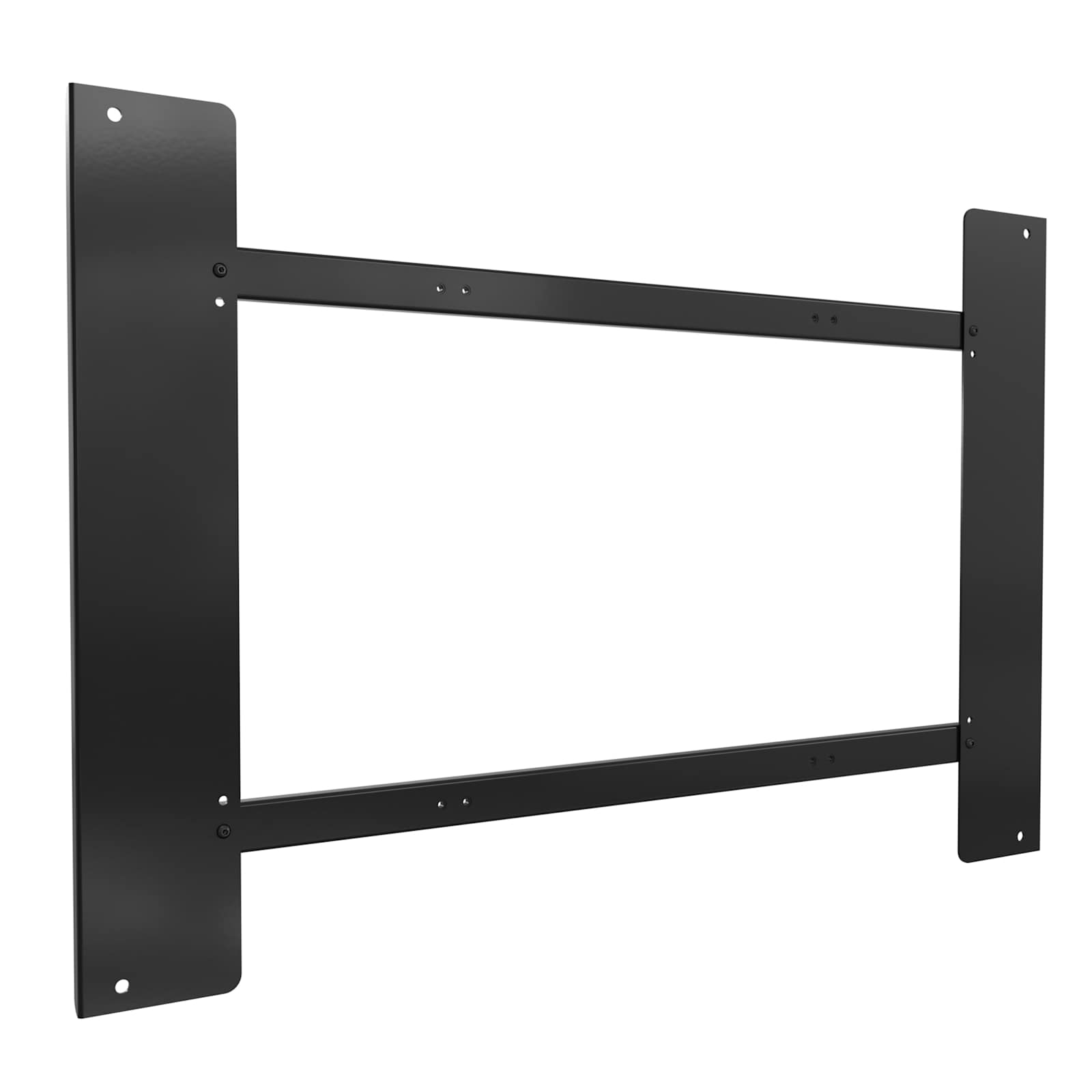

Fusion® and Thinstall™ Hardware Kits
FHB5104$273.60

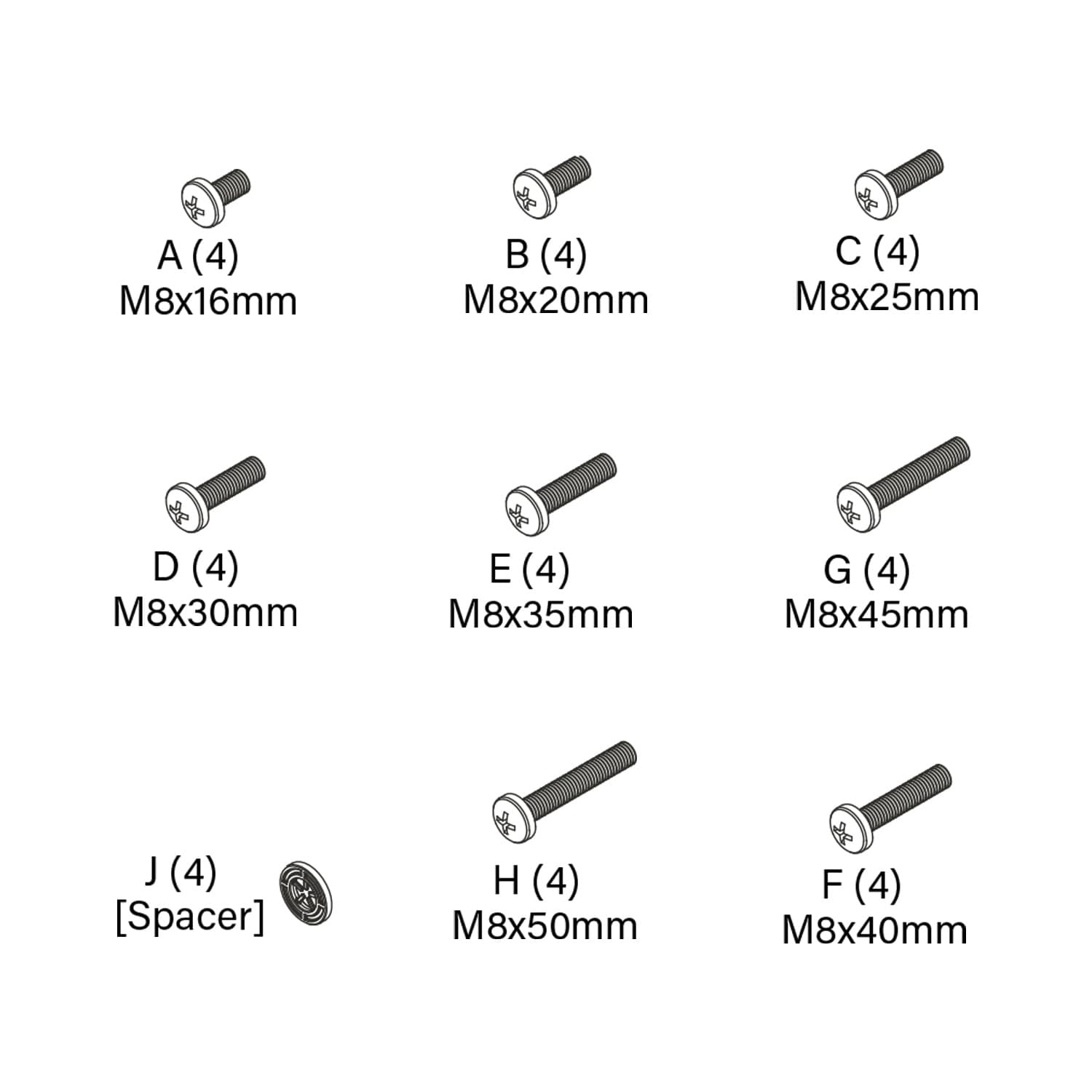

Universal Flat Panel Mount Hardware kit
FHB5147$16.00
Fusion® Display Mount Adapter for 70 in. Cisco Webex Board
FHB5087$522.40

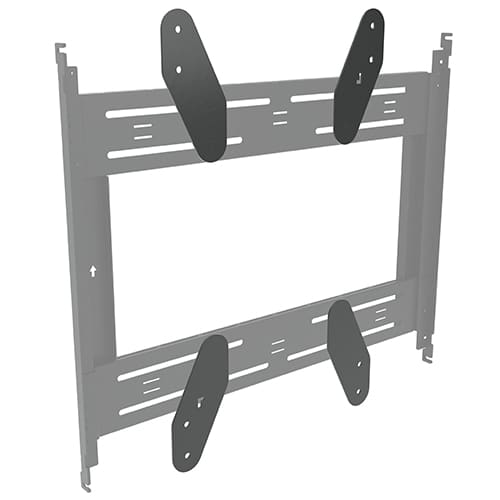

Impact™ Series Universal VESA Adapter Bracket
FHBUL$146.40
Interface Adaptor, 500mm
FHB5106$228.00
Fusion® and Thinstall™ Hardware Kits-FHB5078
FHB5078$116.80
Fusion® and Thinstall™ Hardware Kits-FHB5062
FHB5062$11.20

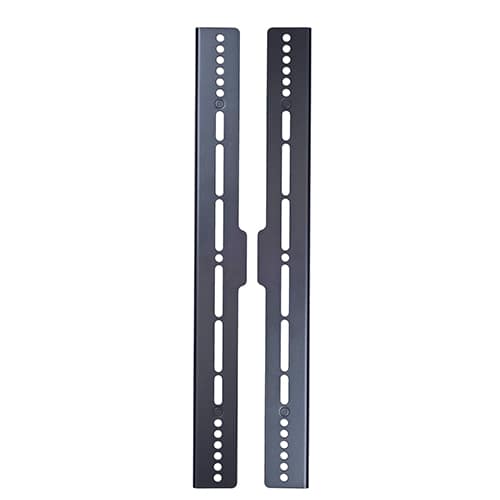

Fusion® Wall Large Mount 500 mm Vesa adaptor
FHB5077$56.80
Questions about this part
Will the Chief FRA work with my existing ConnexSys™ mount?
Yes, when used with a ConnexSys™ system, this adapter supports a weight capacity of 125 lbs (56.7 kg). It also offers micro-adjustment capabilities when paired with ConnexSys™ hardware.
What is the weight capacity of the FRA adapter with Fusion® mounts?
When used with MTMS1U or STMS1U mounts, the weight capacity is 55 lbs (24.95 kg).
How do I secure the display at a specific angle using the FRA?
The adapter includes integrated positive lockouts that trigger at every 15-degree increment to hold the display in place.
Can I use the FRA for both landscape and portrait orientations?
Yes, the adapter is designed to allow the display to be used in both landscape and portrait orientations to accommodate your specific wall or ceiling configuration.
Which documents should I use for the submittal and installation?
You can access the FRA Installation Manual for setup instructions or the Freestyle Selection Guide to ensure visual coverage at all required angles.
