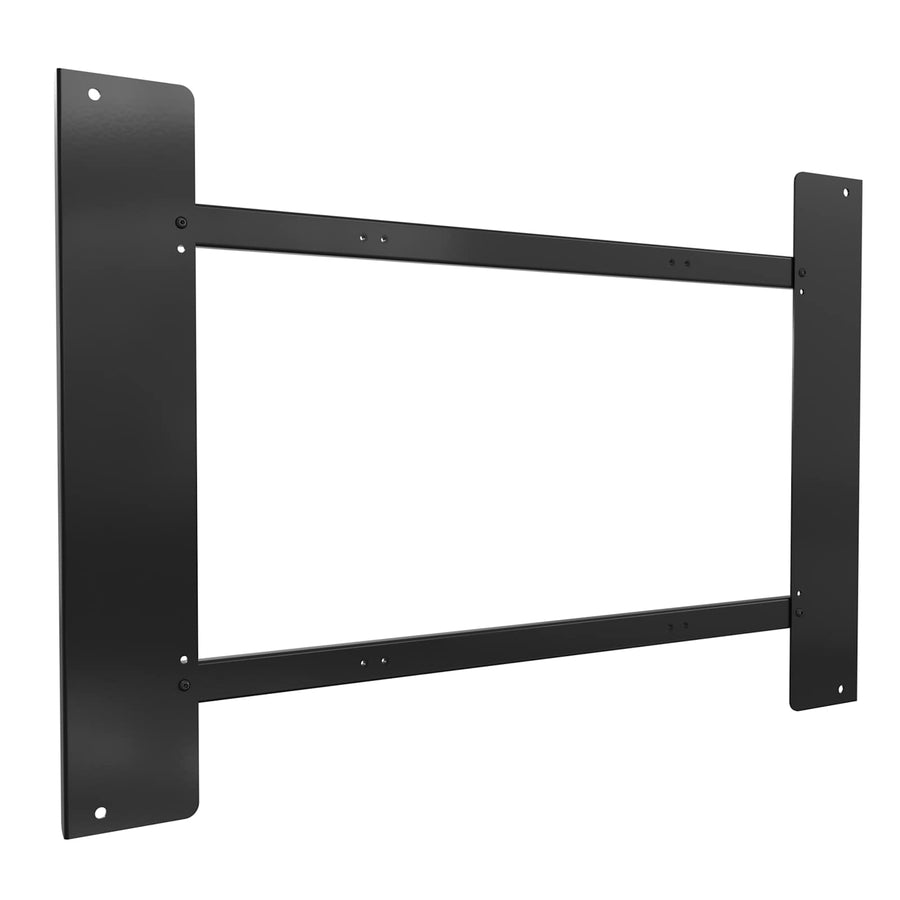

Fusion® and Thinstall™ Hardware Kits
VESA adapter kit that converts 900 x 600mm patterns to 400 x 400mm for large format displays
The Chief FHB5104 is an interface hardware kit designed to facilitate the mounting of large format displays using non-standard VESA patterns. Specifically, this kit converts a 900 x 600mm VESA mounting pattern to a 400 x 400mm pattern. This allows installers to fasten and align large-format screens to Chief mounts equipped with universal interface brackets. Note that this kit is intended for use with universal interface brackets and is not compatible with Q-latch mounts. Once installed, the hardware supports both landscape and portrait orientations. This solution is rated for outdoor use and maintains a TAA compliance status. The kit provides the necessary alignment to ensure heavy displays are securely fastened to the mounting structure, supporting a weight capacity of 250 lbs (113.4 kg). It is a critical component for system integrators managing high-resolution, large-scale digital signage or professional displays.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 0.92 in (2.3 cm) |
| Height | 25 in (63.5 cm) |
| Shipping Dimensions | 32" x 14.5" x 5" (812.8 x 368.3 x 127 mm) |
| Shipping Weight | 17.7 lbs (8 kg) |
| Weight Capacity | 250 lbs (113.4 kg) |
| Width | 37.79 in (96 cm) |
| Accessory Type | Interface BracketsMounting Hardware |
| Color | Black |
All other specifications 7
| Orientation | LandscapePortrait |
| Solution Type | Universal |
| Special Features | Outdoor Use |
| TAA Compliant | Yes |
| UPC | 841872177304 |
| VESA Mounting Pattern | 900 x 600mm |
| Certifications | TAA |
Resources
Verified fitment
Questions about this part
Will the FHB5104 fit my display?
This kit is verified for 11 display models across 5 manufacturers, including the Samsung OM75DK, Samsung QB98R, Christie UHD982P, Dynascan DS751LT4, GPO UCN8641MSi, and Vestel PDU98S31B.
Can I use this with Chief Q-latch mounts?
No, the FHB5104 is specifically designed for Chief mounts that utilize universal interface brackets; it is not compatible with Q-latch mounting systems.
What is the maximum weight capacity for this kit?
The kit is rated to support a weight capacity of 250 lbs (113.4 kg).
Is this hardware kit suitable for outdoor installations?
Yes, this kit features specifications that allow for outdoor use.
Which document should I use for a submittal?
For technical submittals, you can use the FHB5104 Technical Drawing (PDF) or the FHB5104 CAD Drawing (dwg) available in the resources section.
