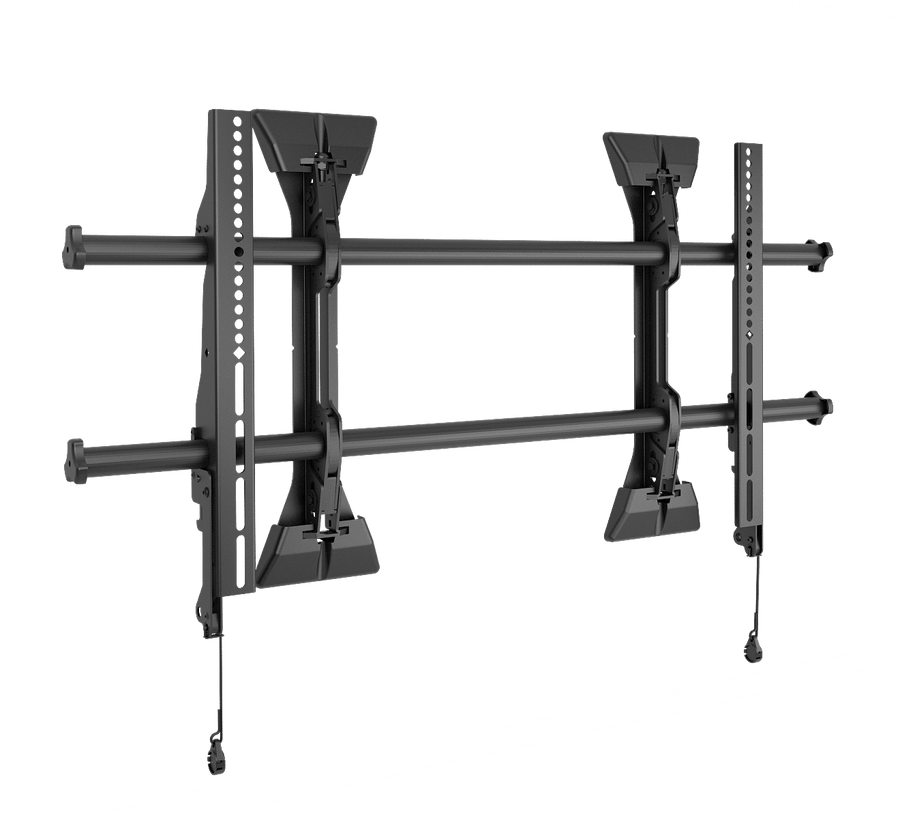

Large Fusion® Micro-Adjustable Fixed Wall Display Mount, TAA Compliant
Fixed wall mount for 42"-86" displays, 200 lbs capacity, with manual height adjustment and lateral shift
The Chief LSM1U-G is a large-format, fixed wall mount from the Fusion® Wall-Fixed series designed to provide a low-profile installation for displays between 42" and 86". This TAA-compliant mount supports a weight capacity of 200 lbs (90.7 kg) and is verified against 4,568 display models from 114 manufacturers, including Samsung, Sony, LG, and Panasonic. It features Centerless Shift for post-installation lateral centering and ControlZone leveling for precise adjustments. The integrated teardrop design allows for faster installation by letting installers pre-install bolts to the wall. For securing the installation, set screws maintain rigidity, while ClickConnect provides an audible engagement confirmation when the screen is attached. The design includes a built-in cable stand to facilitate access to connections beneath the screen, and it is compatible with a wide range of accessories, such as the FCA801 Fusion® 14 Inch Above/Below Shelf or the RCA112 Fusion® Secure CPU/Media Player Adapter.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2 in (5.1 cm) |
| Height | 18.25 in (46.4 cm) |
| Manual Height Adjustment | 1 in (25.4 mm) |
| Minimum Depth | 2 in (5.1 cm) |
| Overall Dimensions | 18.25" x 34.75" x 2" (464 x 883 x 51 mm) |
| Shipping Weight | 22 lbs (10 kg) |
| Typical Screen Size | 42"- 86" (1067mm - 2184mm) |
| Weight Capacity | 200 lbs (90.7 kg) |
All other specifications 10
| Width | 34.75 in (88.3 cm) |
| Adjustability | FixedHeight AdjustableLateral ShiftMicro-Adjustable |
| Application | Wall |
| Color | Black |
| Orientation | Landscape |
| Solution Type | Universal |
| TAA Compliant | Yes |
| UPC | 841872165516 |
| VESA Mounting Pattern | 100 x 100mm - 871 x 500mm |
| Certifications | OSHPDTAAUL Listed |
Resources
You'll need these with it
Proximity™ Component Storage Panel, Interface
CSMP9X12$52.00
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Fusion® Pull Out Accessory
FCAV1U$412.00
Fusion® 14 Inch Above/Below Shelf for Large Displays
FCA801$152.80
Proximity® In-wall Storage Box with 2 Receptacle Filter & Surge-PAC526FWP2
PAC526FWP2$397.60
FCA113 Fusion® CPU Extender Accessory
FCA113$239.20
PAC525FC, In-Wall Storage Box with Flange and Cover
PAC525FC$140.00
FCK008, Fusion® Connector Kit - 8 Inch
FCK008$50.40
FCK000, Fusion® Connector Union
FCK000$30.40
FCK016, Fusion® Connector Kit - 16 Inch
FCK016$63.20
PAC526FC, Large In-Wall Storage Box with Flange and Cover
PAC526FC$200.80
Proximity® Component Storage Slide-Lock Panel
CSSLP15X10$195.20
Verified fitment
Questions about this part
Will the Chief LSM1U-G fit my specific display?
This mount is verified against 4,568 display models from 114 manufacturers, including Samsung (43QN9*C, 65QN9**C), Sony (43BZ35P, 50BZ30P), and LG (100QNED8, 39LY330C).
What tools are needed for the installation of the LSM1U-G?
The integrated teardrop design allows you to pre-install mounting bolts directly to the wall, streamlining the setup process.
How much weight can this mount support?
The LSM1U-G is rated for a weight capacity of 200 lbs (90.7 kg) for displays in the 42" to 86" range.
Can I adjust the screen position after it is mounted?
Yes, it features Centerless Shift for limitless lateral centering and provides 1 in (25.4 mm) of manual height adjustment.
Which documents are available for submittals?
Technical drawings, CAD files (dwg), and OSHPD Pre-Approval documentation are all available in the Resources tab for your submittal packages.
