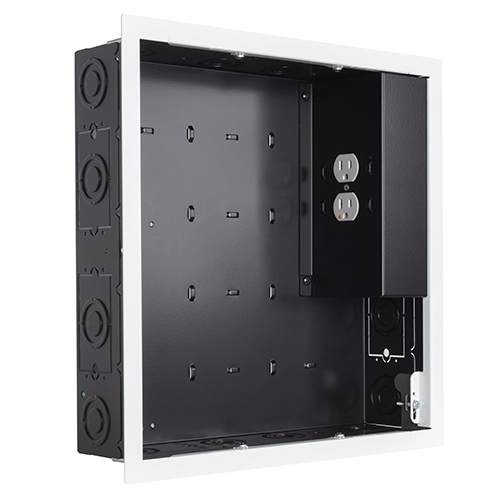

Proximity® In-wall Storage Box with 2 Receptacle Filter & Surge-PAC526FWP2
Large in-wall storage box featuring two surge and filter receptacles and a white flange for drywall mounting
The PAC526FWP2 provides a recessed, organized space for routing excess cables during flat panel installations. This large in-wall storage box features a high-performance, dual gang housing designed to manage cabling behind a display. It includes a dual receptacle outlet with non-sacrificial multi-stage filtration and surge protection, offering a Voltage Protection Rating (VPR) of 600V L-N. This electrical configuration protects sensitive equipment from power disturbances and disruptive high-frequency noise. The included flange allows for a clean, trimmed appearance during drywall mounting. This unit is TAA compliant and UL listed. It is specifically designed for use with a wide range of Chief mounting systems, including the PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, PDR, Thinstall™, and Fusion® wall mounts. The box has a 3.88 in (9.9 cm) depth and a weight capacity of 10 lbs (4.5 kg). For applications requiring a different aesthetic, the PAC526CVRW-KIT provides a white cover kit.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 3.88 in (9.9 cm) |
| Height | 15.51 in (39.4 cm) |
| Overall Dimensions | 15.51" x 15.4" x 3.88” (394 x 391 x 98 mm) |
| Shipping Weight | 13 lbs (5.9 kg) |
| Weight Capacity | 10 lbs (4.5 kg) |
| Width | 15.4 in (39.1 cm) |
| Accessory Type | In-WallPower |
| Application | In-Wall |
All other specifications 7
| Color | Black |
| Flange Color | White |
| Receptacle Type | Two Surge and Filter |
| Special Features | FlangesSurge and Filtering |
| TAA Compliant | Yes |
| UPC | 841872167091 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Questions about this part
Will this storage box fit my Chief wall mount?
The PAC526FWP2 is compatible with Chief PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, PDR, Thinstall™, and Fusion® wall mounts.
What are the power requirements and protection ratings?
The unit features a Type 3 Surge Protective Device (SPD) with a 600V L-N Voltage Protection Rating (VPR) and provides 15A, 1875 W continuous output.
How do I install this box into a wall?
The PAC526FWP2 includes flanges to facilitate a clean drywall mounting installation for a trimmed appearance.
Does this box include surge protection?
Yes, the integrated dual receptacle outlet provides non-sacrificial multi-stage filtration and surge protection to shield equipment from power disturbances.
Can I get a white cover for this unit?
Yes, the PAC526CVRW-KIT is available as a Proximity® White Cover Kit specifically for use with the PAC526 series.
