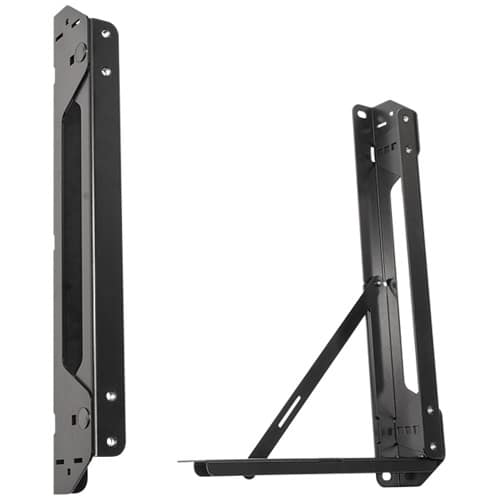

FCA113 Fusion® CPU Extender Accessory
Component storage shelf that adds 3" to 5" of depth behind Fusion mounts to accommodate larger CPUs
The Chief FCA113 Fusion® CPU Extender Accessory is designed for digital signage applications where the content-generating CPU or DMP must be mounted close to the display. Because Fusion® mounts often sit too close to the wall to accommodate larger hardware, this shelf extends the mounting distance from the wall by 3" to 5" (76 to 127 mm). This extension is adjustable in 1/4 inch increments to provide precise clearance. The 18.5" x 18.0" x 3.0" (470 x 457 x 76 mm) shelf can be positioned either on the outside of the Fusion® uprights or between them, maintaining the flexibility of independent upright mounting. It supports component weights up to 30 lbs (13.6 kg) and features tool-less removal of the CPU or shelf for efficient maintenance. To assist with secure installation, a 42-inch double-sided hook and loop strap is included for securing the CPU.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 3 in (7.6 cm) |
| Equipment Depth Range | 0 - 5" (0 - 127 mm) |
| Height | 18.5 in (47 cm) |
| Overall Dimensions | 18.5" x 18.0" x 3.0" (470 x 457 x 76 mm) |
| Shipping Weight | 10 lbs (4.5 kg) |
| Weight Capacity | 30 lbs (13.6 kg) |
| Width | 18 in (45.7 cm) |
| Accessory Type | Component Storage |
| Application | On-Display |
| Color | Black |
| TAA Compliant | No |
| UPC | 841872165660 |
Resources
Questions about this part
How much extra space does the FCA113 add behind my mount?
This accessory adds between 3" (76 mm) and 5" (127 mm) of depth, which can be adjusted in 1/4 inch increments.
Can I mount a CPU directly to the FCA113?
Yes, the shelf is designed to hold a CPU or other components with a weight capacity of up to 30 lbs (13.6 kg).
Does the FCA113 work with any Fusion mount?
The shelf maintains the flexibility of independent Fusion upright mounting and is designed to work with the Fusion series.
Is it difficult to access the CPU for maintenance?
No, the design allows for tool-less removal of both the shelf and the CPU to simplify servicing.
Where can the shelf be positioned on the mount?
The configurable shelf can be located either between the Fusion upright brackets or on the outside of the uprights.
