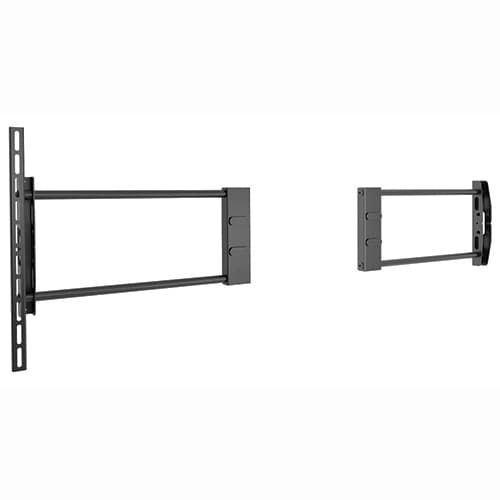

Fusion® Side Channel Speaker Adaptor
Speaker adaptor for Fusion Series mounts, supporting side-mounting for a variety of speaker brands
The Chief FCA831 Fusion Side Channel Speaker Adaptor allows installers to mount AV speakers directly to the side of a Fusion Series mount. This universal design is intended to accommodate most speaker brands without adding significant depth to the installation, maintaining a low profile. The adaptability of these side channels varies based on the specific mount being used. For large wall mounts, the extension range is 36.8"-66.8" (934.7mm-1696.7mm), while medium wall mounts provide a range of 34.4"-57.8" (873.8mm-1468.1mm). For ceiling or cart applications, the extension is 35.6"-65.6" (904.2mm-1666.2mm) for large mounts and 36.2"-57.6" (919.5mm-1463.0mm) for medium mounts. Each adaptor carries a weight capacity of 20 lbs (9.07 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2 in (5.1 cm) |
| Height | 16 in (40.6 cm) |
| Overall Dimensions | 16" x 37-67" x 2" (406 x 940-1702 x 51 mm) |
| Shipping Weight | 12.89 lbs (5.9 kg) |
| Typical Screen Size | 42" - 70" (1067mm - 1778mm) |
| Weight Capacity | 20 lbs (9.07 kg) |
| Width | 37-67 |
| Accessory Type | Speaker Accessories |
All other specifications 6
| Application | Side |
| Color | Black |
| Solution Type | Universal |
| TAA Compliant | Yes |
| UPC | 841872163840 |
| Certifications | TAA |
Resources
Questions about this part
Will the FCA831 work with my Fusion Series mount?
Yes, the FCA831 is compatible with all Fusion Series mounts, including wall, ceiling, and cart configurations.
What is the width range for the FCA831 speaker adaptor?
The width range depends on the mount type: 34.4"-57.8" (873.8mm-1468.1mm) for medium wall mounts and 36.8"-66.8" (934.7mm-1696.7mm) for large wall mounts.
How much weight can I mount to the side channel?
The FCA831 has a weight capacity of 20 lbs (9.07 kg) for the mounted speaker.
Does this adaptor add extra depth to my display installation?
The low-profile design is engineered so that it does not add depth to the installation.
Which documents are available for submittals?
Installers can access the FCA831 Technical Drawing (PDF), the CAD Drawing (dwg), or the Installation Manual (PDF) for submittal and planning.
