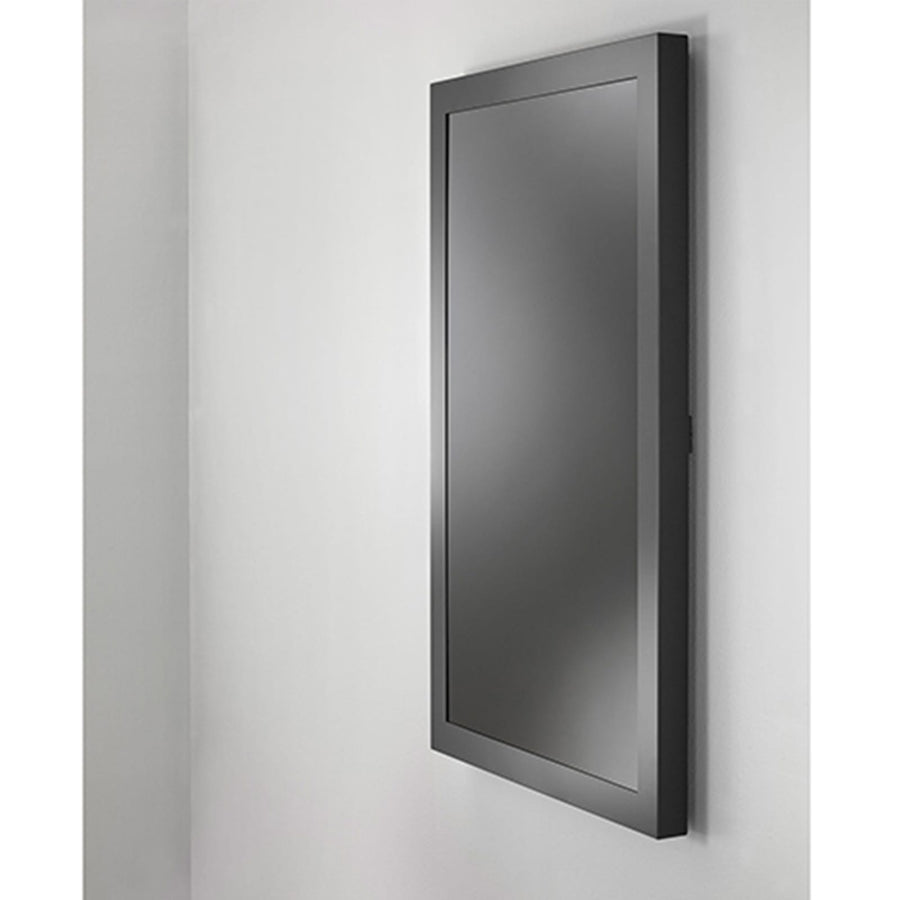

Impact™ On-Wall Kiosk with Protective Glass - Portrait 75 Inch Black
Portrait 75" On-Wall Kiosk featuring integrated 5/32" tempered glass and a depth-adjustable exterior frame in black
The LW75UBPG Impact™ On-Wall Kiosk provides a secure, sleek enclosure for 75" displays in portrait orientation. This kiosk is designed for professional digital signage environments where protection and aesthetics are critical. It features an integrated, factory-bonded 5/32" (8 mm) thick tempered glass that shields the LCD from impacts and sharp objects. The exterior frame is depth-adjustable from 3" to 5" (76–127 mm) and accommodates a maximum screen thickness of 3.75" (95.3 mm). For installation, the integrated wall reveal helps keep the frame plumb even on uneven walls and facilitates passive cooling. The enclosure includes a closure door and reversible hinges to simplify installation and service. The design allows the display to remain mounted to the frame even when the door is opened, ensuring easy maintenance access. This TAA compliant and UL Listed kiosk is ideal for high-traffic areas requiring a secure, professional appearance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | Depth range: 3-5" (76 - 127 mm) |
| Maximum Screen Thickness | 3.75 in (95.3 mm) |
| Shipping Dimensions | 75" x 44.5" x 10" (190.5 x 113 x 25.4 cm) |
| Shipping Weight | 190 lbs (86.2 kg) |
| Typical Screen Size | 75" (190.5cm) |
| Weight Capacity | Mount 135lbs_ Panel 5lbs |
| Accessory Type | Metal StudMounting BracketsProtective CoversThermal Management |
| Adjustability | FixedLateral Shift |
All other specifications 9
| Application | Floor-CartWall |
| Color | Black |
| Number of Displays | 1 |
| Orientation | Portrait |
| Protective Glass | Yes |
| Special Features | Closure Door |
| TAA Compliant | Yes |
| UPC | 841872174310 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
Impact™ Freestanding Single Sided Base Accessory, Black
PACLFB$688.00
FCA113 Fusion® CPU Extender Accessory
FCA113$239.20
Bracket for Outdoor Samsung 46 Inch Display
FHBO5169$956.00
Brackets for Outdoor 55 Inch Displays
FHBO5168$956.00
Fusion® and Thinstall™ Hardware Kits
FHB5104$273.60
PAC526, Large In-Wall Storage Box
PAC526$116.80
Universal Flat Panel Mount Hardware kit
FHB5147$16.00
CMS060, 60 Inch Fixed Extension Column, Pole
CMS060$101.60
PAC525, In-Wall Storage Box
PAC525$79.20
OFRBC-8 OFR Overfloor Raceway Base and Cover
OFRBC-8$87.21
Impact™ Series On-Wall Kiosk Fan Kit, 30 CFM
PACFAN1$342.40
Questions about this part
Will the LW75UBPG fit my 75 inch display?
The LW75UBPG is designed for 75" displays in portrait orientation. It supports a maximum screen thickness of 3.75" (95.3 mm) and features a depth-adjustable frame ranging from 3" to 5" (76–127 mm).
What do I need for the wall installation of this kiosk?
The enclosure features an integrated wall reveal to compensate for uneven walls and keep the unit plumb. It also includes a large empty center backing to facilitate use with in-wall boxes.
How is the display serviced once it is mounted?
The kiosk is designed for easy maintenance, allowing the display to remain mounted to the frame when the door is opened. The design includes reversible hinges and a closure door for access.
What accessories are compatible with the LW75UBPG?
Commonly used accessories include the Impact™ Series On-Wall Kiosk Fan Kit (PACFAN1) for thermal management and the PAC525 or PAC526 for in-wall storage options.
Is this kiosk TAA compliant?
Yes, the LW75UBPG is TAA compliant and is UL Listed, making it suitable for government and professional installations.
