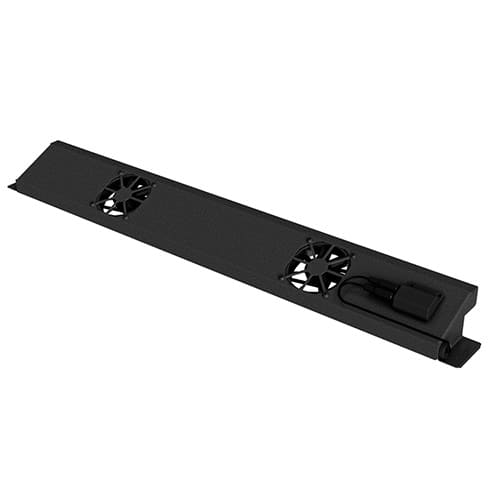

Impact™ Series On-Wall Kiosk Fan Kit, 30 CFM
Active thermal management kit for Impact Series On-Wall Kiosks, providing 30 CFM of cooling with thermostatic control
The Chief PACFAN1 is an active thermal management accessory specifically designed for the Impact™ Series On-Wall Kiosk. This kit delivers 30 CFM of airflow through the use of two 15 CFM fans to prevent overheating in enclosure environments. To maximize component longevity and reduce dust accumulation, the system is thermostatically controlled, activating only when necessary. The included 12V power supply supports both 110V and 220V inputs, making it suitable for various international electrical standards. For installers requiring precise environmental control, the inline fan control features three jumper settings. The system is designed for automatic operation, triggering the fans when temperatures reach 87°F (30.5°C) and deactivating once the temperature drops to 85°F (29°C). This unit is TAA compliant and designed for wall applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 1.71 in (4.3 cm) |
| Height | 2.7 in (6.9 cm) |
| Overall Dimensions | 2.7” x 23” x 1.71” (69 x 583 x 69mm) |
| Shipping Weight | 2.24 lbs (1 kg) |
| Width | 23 in (58.4 cm) |
| Accessory Type | Thermal Management |
| Adjustability | Fixed |
| Application | Wall |
| TAA Compliant | Yes |
| UPC | 841872173689 |
| Certifications | TAA |
Resources
Questions about this part
What is the purpose of the PACFAN1 fan kit?
The PACFAN1 provides active thermal management for the Impact™ Series On-Wall Kiosk by delivering 30 CFM of cooling using two 15 CFM fans.
How does the thermostatic control function?
The fans activate automatically when the temperature reaches 87°F (30.5°C) and turn off once the temperature reaches 85°F (29°C) to minimize dust and extend fan life.
What power requirements are needed for this fan kit?
The kit includes a 12V power supply that is compatible with both 110V and 220V inputs.
Can I adjust the fan control settings?
Yes, the inline fan control includes 3 jumper settings to allow for specific configuration requirements.
Is the PACFAN1 TAA compliant?
Yes, this fan kit is TAA compliant for use in projects requiring compliance.
