IDF Series Rack - IDF-TM-1224BK
12 RU overhead hanging rack with 150 lbs capacity, designed for mounting in warehouses and retail environments

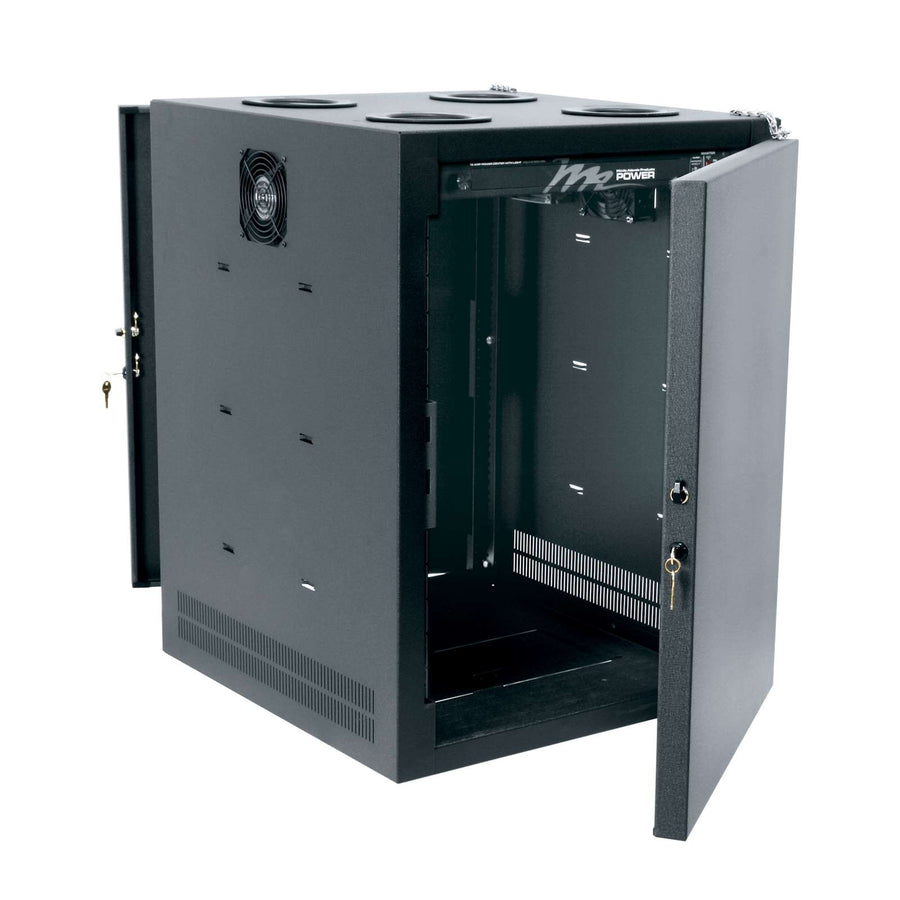

The Middle Atlantic IDF-TM-1224BK is a 12 RU hanging overhead rack designed for mounting network hubs, routers, and other critical equipment in warehouses, retail outlets, or large open-area environments. This enclosure provides a centralized solution for distributed systems, allowing hardware to be positioned overhead rather than floor-mounted. The unit features a textured black powder coat finish and is constructed with an aluminum bottom plate, which is ideal for mounting wireless antennae or dome cameras. For cable management, the top of the rack includes four integral glanded 4" cable pass-throughs, and the bottom includes multiple UHF/VHF antenna knockouts. The enclosure is secured with standard solid front and rear locking doors that feature safety chains. This specific model is TAA compliant and UL listed, making it suitable for government and commercial projects requiring high-standard hardware. The internal configuration includes adjustable 10-32 threaded rackrails with numbered spaces for precise equipment positioning.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| CFM | 110 |
| Depth | 28.73 in (73 cm) |
| Height | 24.13 in (61.3 cm) |
| Rack Units | 12 RU |
| Shipping Weight | 107 lbs (48.5 kg) |
| Usable Depth | 21 in (53.3 cm) |
| Usable Height | 21 in (53.3 cm) |
| Weight Capacity | 150 lbs (68 kg) |
All other specifications 8
| Width | 23.52 in (59.7 cm) |
| Component Type | Active |
| Federal Ops Country of Origin | USA |
| Finish | Textured Black Powder Coat |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747094408 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
USC Universal Sequencing Controller 1 Space Sequencing Controller
USC-6R$1,044.90
Select Series UPS Backup Power Systems - UPS-SRBP-500
UPS-SRBP-500$351.00
MPR Power Module 30A, L5-30R Twistlock
RLM30-L530-1$763.20
MPR Module 15A, Controlled Stand-Alone
RLM-15-1CA$288.00
MPR Power Module 20A, L5-20R Twistlock
RLM30-L520-1$716.40
MPR Module 20A, Controlled Stand-Alone
RLM-20-1CA$306.00
Rackmount Power, 6 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-6$462.60
Rackmount Power, 2 Outlet Control, 9 Outlet, 15A, & 2-Stage Surge Protection
PDC-915R-2$462.60
4 RU Flanged Blank Rack Panel, Wrinkled
WSB4$41.40
3 RU Flanged Blank Rack Panel, Wrinkled
WSB3$40.50

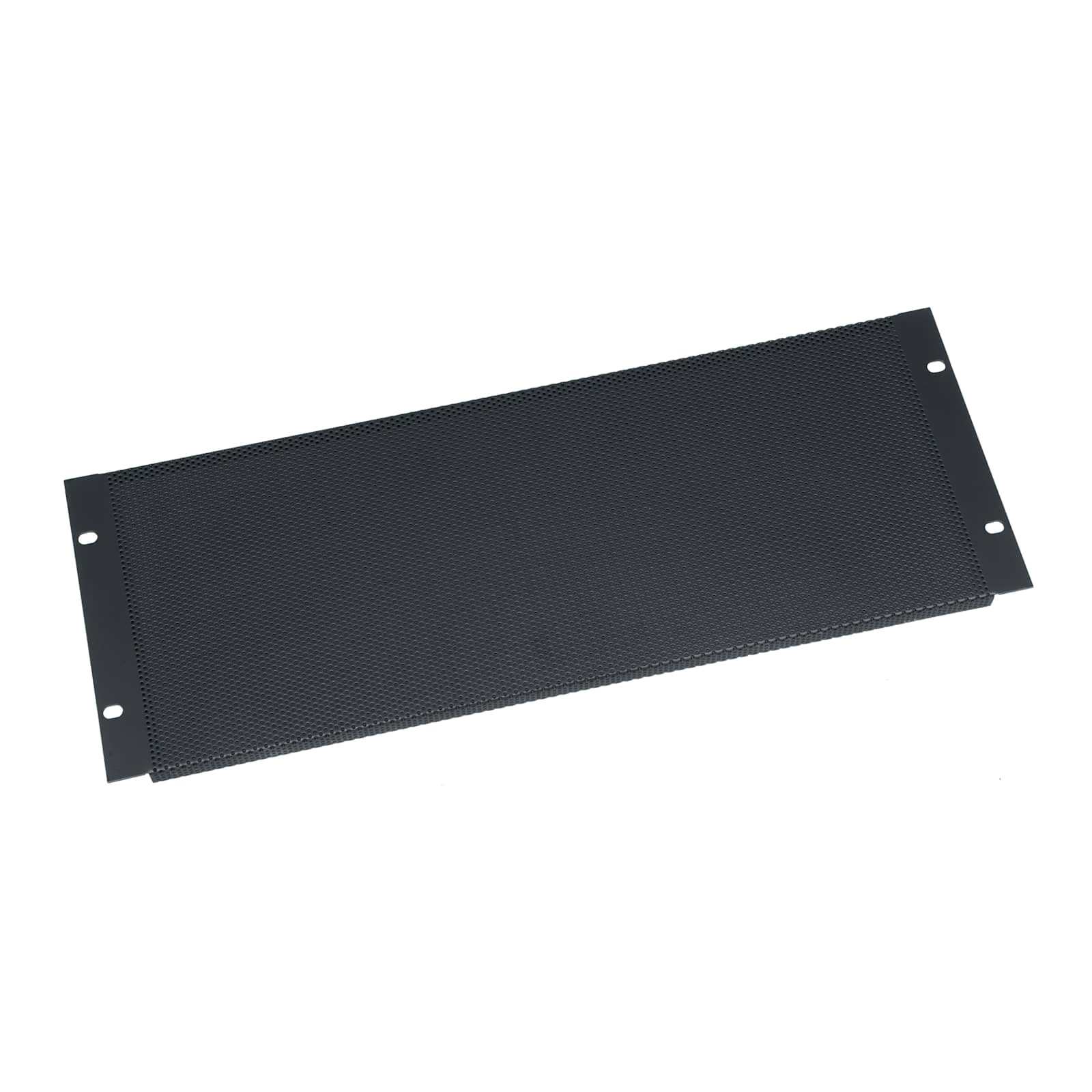

4 RU Rack Vent Panel, Perforated with 25% Open Area
VTF4$43.20
Questions about this part
What equipment is this rack compatible with?
This 12 RU rack is designed for mounting hubs, routers, and other active equipment. It is verified for use in distributed systems in warehouse and retail settings.
What is the weight capacity of the IDF-TM-1224BK?
The rack has a total weight capacity of 150 lbs (68 kg) and features a usable height and depth of 21 in (53.3 cm).
What mounting hardware is required for installation?
You can mount this rack directly to Unistrut® beams or to a building truss using 1/2” threaded rods, which are not included with the unit.
How is the power distribution configured in this SKU?
This unit ships with an included model # PD-915R rackmount power distribution unit.
Is this rack suitable for high-security or government installations?
Yes, this model is TAA compliant and is UL listed for safety and compliance standards.
