Extra-Large Universal Tool-Free Projector Mount
Extra-large universal ceiling mount for large venue laser projectors, supporting 50–150 lbs (22.7–68 kg) with micro-adjustability

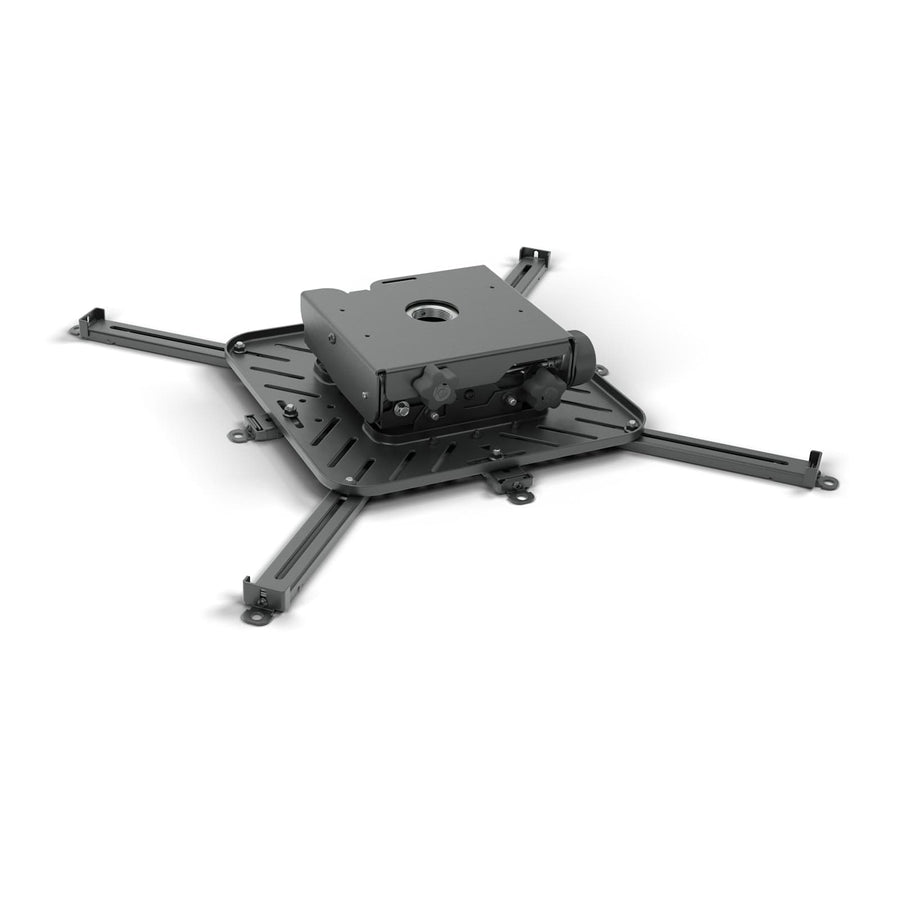

The Chief VCTUB is an extra-large universal tool-free projector mount designed for rapid installation in large venue environments. Specifically engineered to accommodate heavy laser projectors, this mount supports a weight capacity of 150 lbs (68 kg), making it a streamlined successor to the VCM series. The VCTUB features an HCUB Universal Interface included in the package, facilitating a cleaner and more efficient setup. To ensure precise image registration after installation, the mount utilizes tool-free MicroZone adjustments. This allows for micro roll of 5°, micro pitch of 20°, and micro yaw of 10°, alongside a macro yaw adjustment of 360°. This high degree of adjustability is critical when performing final alignment in complex large-scale installations. This UL Listed ceiling mount provides a slim aesthetic while maintaining the heavy-duty stability required for professional AV integration.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Shipping Dimensions | 20.89" x 19.09" x 7.09"(530.7 x 484.9 x 180.1 mm) |
| Shipping Weight | 31.38 lbs (14.2 kg) |
| Weight Capacity | 150 lbs (68 kg) |
| Adjustability | Independent Roll-Pitch-Yaw, Micro-Adjustable |
| Adjustments | Micro Roll 5°, Micro Pitch 20°, Micro Yaw 10° and Macro Yaw 360° |
| Application | Ceiling |
| Color | Black |
| Interface Type | Universal |
All other specifications 6
| Protective Glass | No |
| Solution Type | Universal |
| Special Features | Large Venue |
| TAA Compliant | No |
| UPC | 841872172460 |
| Certifications | UL Listed |
Resources
You'll need these with it
8 Inch (203 mm) Ceiling Plate
CMA110$75.20
CMA372, Offset Unistrut Adapter
CMA372$66.40
6 Inch (152 mm) Ceiling Plate with Adjustable Column in White
CMA700W$150.40
Architectural Spanning Adapter
CMA366$150.40
Electrical Storage Enclosure
CMA160$302.40
CMS0203, 2-3' Adjustable Extension Column, Pole
CMS0203$166.40
CMS0507, 5-7' Adjustable Extension Column, Pole
CMS0507$209.60
CMS006009, 6-9 Inch Adjustable Extension Column, Pole
CMS006009$78.40
Single Electric Outlet Coupler
CMA502$80.80
C-Clamp
CMA362$135.20
I-Beam Clamp
CMA360$318.40
Verified fitment
Questions about this part
Will the VCTUB fit my projector?
The VCTUB is verified against 1,159 device models from 28 manufacturers. Examples of compatible hardware include Panasonic PT-D12000U, Christie 4K1600-JS, Epson EB-L1060W, Digital Projection E-Vision 16000i WU, and Barco 3100LC.
What accessories do I need to mount this to a specific ceiling type?
Depending on your installation, you may require a CMA165 Internal Joist Ceiling Kit, a CMA372 Offset Unistrut Adapter, or a CMS380 Truss Clamp.
How much weight can this mount support?
The VCTUB has a weight capacity of 150 lbs (68 kg), making it suitable for heavy-duty laser projectors in the 50–150 lb range.
How can I adjust the projector position once it is mounted?
You can use the MicroZone tool-free adjustments to fine-tune the image, offering 5° of micro roll, 20° of micro pitch, and 10° of micro yaw.
Is there a document available for submittals?
You can use the VCTU Technical Drawing (PDF) or the VCTU Spec-Sheet (PDF) for submittal documentation and technical planning.
