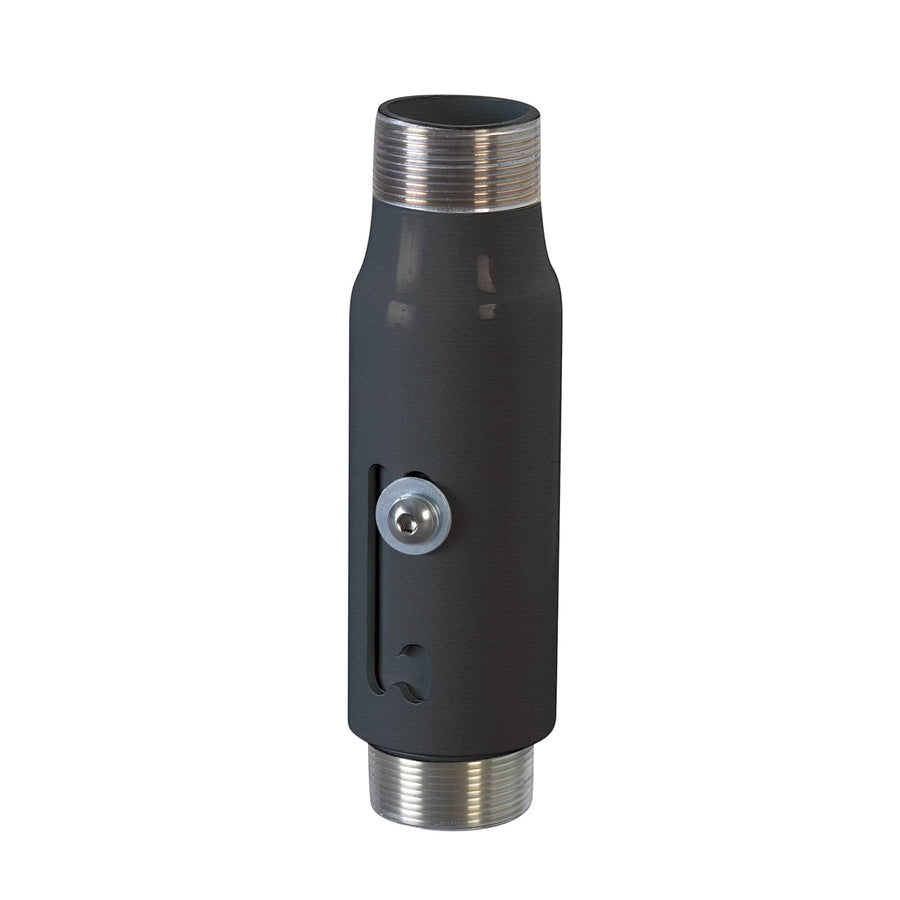

CMS006009, 6-9 Inch Adjustable Extension Column, Pole
Adjustable 6-9 in (15.24cm - 22.86cm) extension column for 1.5" NPT ceiling plates, featuring notched design for easy adjustment
The Chief CMS006009 is a 6-9 in (15.24cm - 22.86cm) adjustable extension column designed for use with any Chief 1.5" NPT ceiling plate or compatible accessory. This black, TAA-compliant pole provides height adjustment in 1-inch increments using a notched design, allowing installers to make adjustments without requiring full disassembly of the mounting system. The column consists of a 1.5" NPT column that is threaded on both ends, and it includes a set screw to ensure added stability once the desired height is reached. This accessory supports a weight capacity of 500 lbs (226.8 kg) and is UL Listed. For professional installations requiring specific transitions, this column is compatible with items such as the CMA151 1.5 Inch to 1 Inch NPT Adapter and the CMA270 Threaded Pipe Coupler.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2.3 in (5.8 cm) |
| Extension | 6" - 9" (15.24cm - 22.86cm) |
| Height | 9 in (22.9 cm) |
| Overall Dimensions | 9.0" x 2.3" x 2.3" (229 x 59 x 59 mm) |
| Shipping Weight | 1.48 lbs (0.7 kg) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Width | 2.3 in (5.8 cm) |
| Accessory Type | Extension |
All other specifications 5
| Application | Pole |
| Color | Black |
| TAA Compliant | Yes |
| UPC | 841872092614 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Dual Electric Outlet Coupler
CMA504$106.40
Electrical Storage Enclosure
CMA160$302.40
CMA270 Threaded Pipe Coupler
CMA270$31.20
CMA347, Vibration Isolating Coupler
CMA347$416.00
CMA270W Threaded Pipe Coupler
CMA270W$31.20
CMS261W Column Cut-Off Adapter
CMS261W$42.40
CMS261 Column Cut-Off Adapter
CMS261$42.40
CMA152, Threaded Pipe Coupler
CMA152$45.60
Decorative Ring, 1.9 Inch ID, CMS/CPA Fixed/Inner Adjustable Column
CMA640$17.60
Questions about this part
Will the CMS006009 work with my existing Chief ceiling plate?
Yes, this column is designed to work in combination with any Chief 1.5" NPT ceiling plate or other compatible accessory.
How do I adjust the height of this extension column?
The column features a notched design that allows you to adjust the height in 1-inch increments without having to disassemble the entire mount.
What is the maximum weight capacity of the CMS006009?
This extension column has a weight capacity of 500 lbs (226.8 kg) when properly installed.
What other parts are compatible with this extension column?
You can use this with the CMA151 1.5 Inch to 1 Inch NPT Adapter, the CMA270 Threaded Pipe Coupler, or the CMA351 Heavy Duty Swivel Adapter.
Is this product TAA compliant?
Yes, the CMS006009 is TAA compliant and is also UL Listed.
