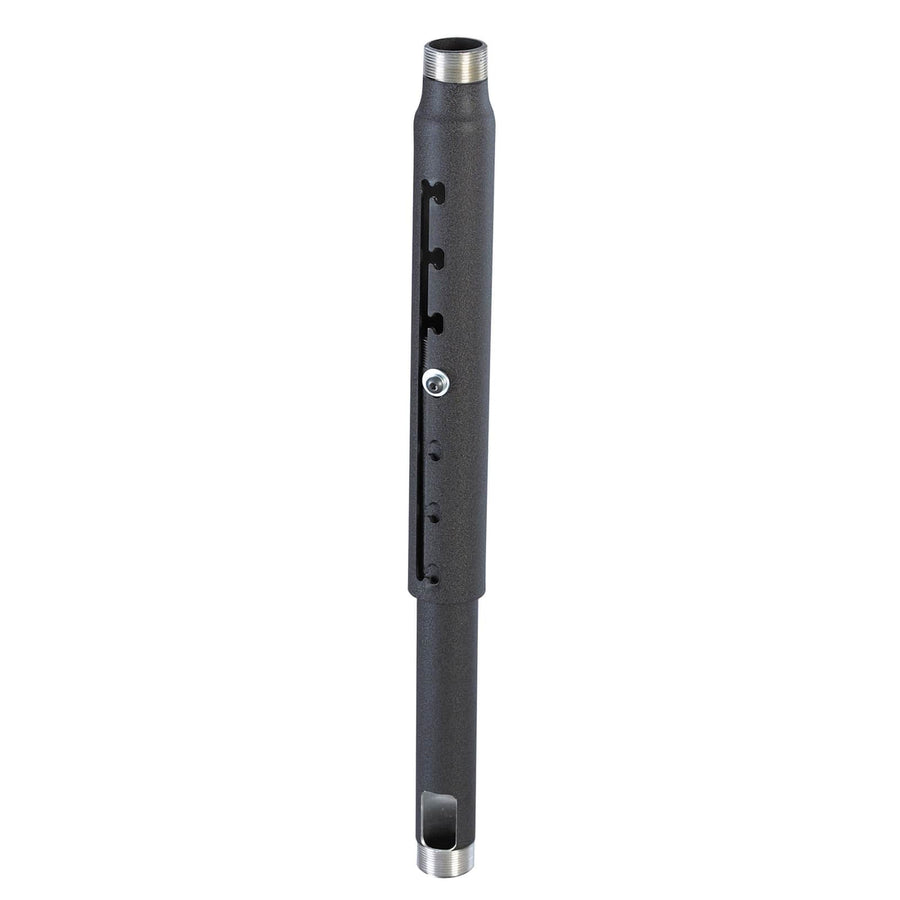

CMS0507, 5-7' Adjustable Extension Column, Pole
5'-7' adjustable extension column for pole applications, featuring 1 inch height increments and a 500 lbs weight capacity
The Chief CMS0507 is a 5' - 7' (1.52m - 2.13m) adjustable extension column designed for pole applications. This extension column features a notched design that allows for height adjustments in 1" increments without requiring complete disassembly, significantly reducing installation time. The column is 84 in (213.4 cm) in total height and has a 2.3 in (5.8 cm) width and depth. It includes a set screw to ensure added stability once the desired height is reached. This 1.5" NPT column is threaded on both ends, making it compatible for use with any Chief 1.5" NPT ceiling plate or other compatible accessories. This TAA compliant and UL listed component supports a weight capacity of 500 lbs (226.8 kg). For a complete installation, this column can be paired with various accessories like the CMA151 1.5 Inch to 1 Inch NPT Adapter or the CMA274 Quick-Snap Cable Covers.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 2.3 in (5.8 cm) |
| Extension | 5' - 7' (1.52m - 2.13m) |
| Height | 84 in (213.4 cm) |
| Overall Dimensions | 84.0" x 2.3" x 2.3" (2134 x 59 x 59 mm) |
| Shipping Weight | 9.23 lbs (4.2 kg) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Width | 2.3 in (5.8 cm) |
| Accessory Type | Extension |
All other specifications 5
| Application | Pole |
| Color | Black |
| TAA Compliant | Yes |
| UPC | 841872076430 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Decorative Ceiling Tile Ring - CPA640
CPA640$17.60
Single Electric Outlet Coupler
CMA502$80.80
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Dual Electric Outlet Coupler
CMA504$106.40
Electrical Storage Enclosure
CMA160$302.40
CMA270 Threaded Pipe Coupler
CMA270$31.20
CMA347, Vibration Isolating Coupler
CMA347$416.00
CMA270W Threaded Pipe Coupler
CMA270W$31.20
CMS261W Column Cut-Off Adapter
CMS261W$42.40
CMS261 Column Cut-Off Adapter
CMS261$42.40
Questions about this part
Will the CMS0507 work with my existing ceiling plate?
Yes, this column is designed to be used in combination with any Chief 1.5" NPT ceiling plate or other compatible accessory.
How do I adjust the height of the CMS0507 column?
The column features a notched design that allows you to make adjustments in 1" increments without needing to disassemble the entire assembly.
What is the maximum weight capacity for this extension column?
The CMS0507 has a rated weight capacity of 500 lbs (226.8 kg).
What accessories are needed to complete the installation?
You may need various accessories such as the CMA351 Heavy Duty Swivel Adapter or the CMA151 1.5 Inch to 1 Inch NPT Adapter depending on your specific setup.
Is the CMS0507 TAA compliant for government contracts?
Yes, the CMS0507 is TAA compliant and is also UL Listed.
