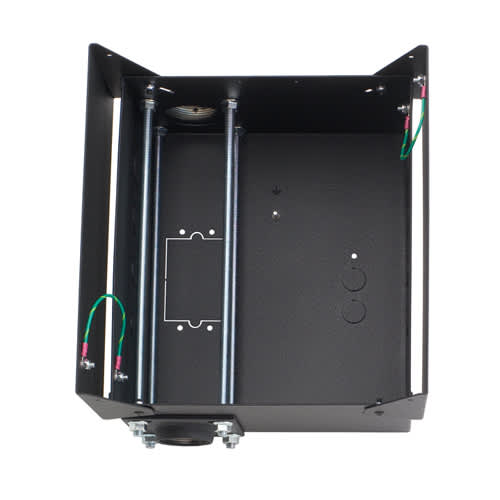

Electrical Storage Enclosure
Ceiling-mounted electrical storage enclosure for hiding cables and equipment, featuring a 250 lbs capacity and outlet knockouts
The Chief CMA160 is an electrical storage enclosure designed to create a cleaner installation by providing a centralized, compact location for equipment, cables, and electrical hook-ups. This enclosure is intended for ceiling applications, allowing installers to keep hardware and wiring hidden from view. It functions as an extension between two columns, serving as a dedicated hub for managing connections. The unit features built-in outlet knockouts to facilitate easier electrical integration. This TAA compliant and UL Listed component is built to handle significant loads, offering a weight capacity of 250 lbs (113.4 kg). Its compact profile measures 13.1" x 10.3" x 6.1" (333 x 261 x 155 mm), making it an efficient solution for professional AV system integrators requiring organized, out-of-sight electrical management.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 6.1 in (15.5 cm) |
| Height | 13.1 in (33.3 cm) |
| Overall Dimensions | 13.1" x 10.3" x 6.1" (333 x 261 x 155 mm) |
| Shipping Weight | 13 lbs (5.9 kg) |
| Weight Capacity | 250 lbs (113.4 kg) |
| Width | 10.3 in (26.2 cm) |
| Accessory Type | Extension |
| Application | Ceiling |
| Color | Black |
| TAA Compliant | Yes |
| UPC | 841872002545 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
CMS0305, 3-5' Adjustable Extension Column, Pole
CMS0305$185.60
CMS018024W, 18-24 Inch Adjustable Extension Column, Pole
CMS018024W$153.60
CMS0305W, 3-5' Adjustable Extension Column, Pole
CMS0305W$185.60
CMS0203W, 2-3' Adjustable Extension Column, Pole
CMS0203W$166.40
CMS0203, 2-3' Adjustable Extension Column, Pole
CMS0203$166.40
CMS003W, 3 Inch Fixed Extension Column, Pole
CMS003W$22.40
CMS009W, 9 Inch Fixed Extension Column, Pole
CMS009W$41.60
CMS009, 9 Inch Fixed Extension Column, Pole
CMS009$41.60
CMS006W, 6 Inch Fixed Extension Column, Pole
CMS006W$22.40
CMS006, 6 Inch Fixed Extension Column, Pole
CMS006$22.40
CMS018024, 18-24 Inch Adjustable Extension Column, Pole
CMS018024$153.60
CMS060W, 60 Inch Fixed Extension Column, Pole
CMS060W$101.60
Questions about this part
What is the weight capacity of the Chief CMA160?
The CMA160 has a weight capacity of 250 lbs (113.4 kg) for equipment and cables.
Can I use the CMA160 with existing extension columns?
Yes, the CMA160 connects two extension columns, such as the CMS0305 or CMS012018, providing a central storage area.
Is the CMA160 suitable for TAA compliant projects?
Yes, this enclosure is TAA compliant and UL Listed, making it suitable for various professional AV deployments.
How is the electrical access managed in this enclosure?
The enclosure features built-in outlet knockouts to facilitate easy electrical hook-ups and cable management.
Where should this enclosure be installed?
The CMA160 is specifically designed for ceiling applications to help keep equipment and wiring hidden.
