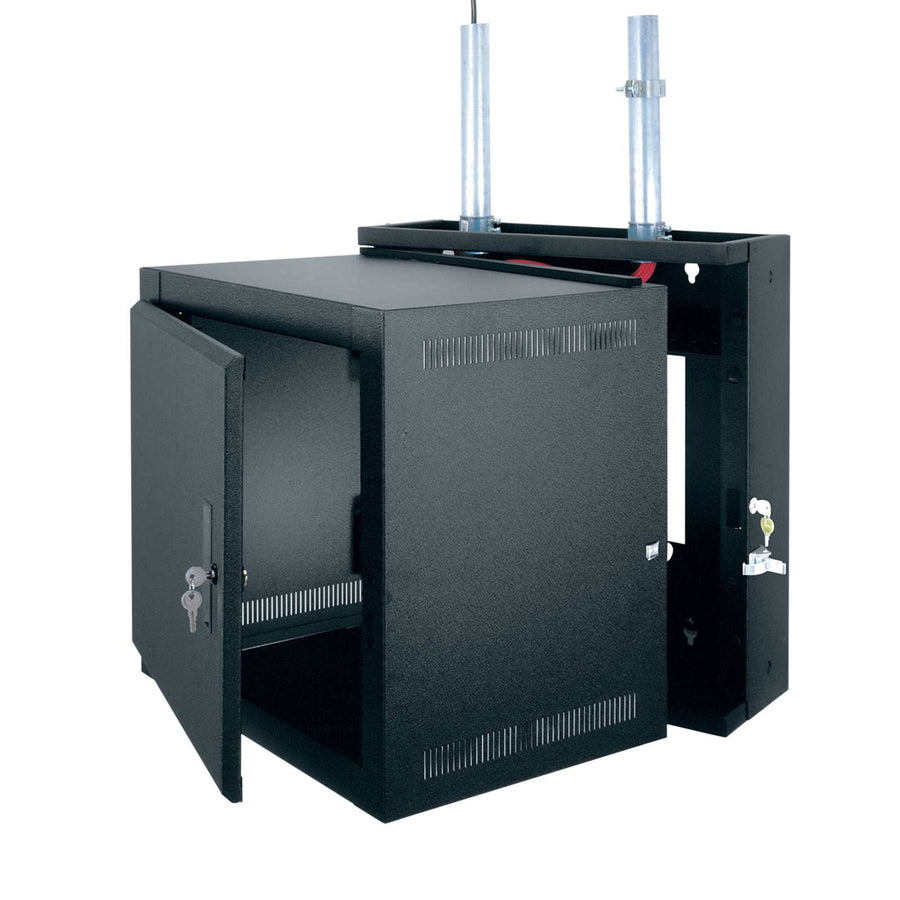

EWR Series Pivoting Wall Rack - EWR-10-22SD
10RU pivoting wall rack, 22" deep, 150 lbs UL load capacity, with a solid front door
The Middle Atlantic EWR-10-22SD is a 10RU pivoting wall rack designed as an economical solution for smaller systems in both secured and unsecured environments. This sectional wall cabinet features fully welded construction for maximum structural strength and arrives fully assembled with a solid front door. It utilizes the patented Tool Free Quick-Mount™ system for efficient center section mounting. The center section is reversible and can be secured via a padlock or key, with the center section key being different from the optional front door key to provide enhanced security. This rack is optimized for passive thermal management to keep components cool. For equipment mounting, it includes standard front adjustable 10-32 threaded rackrails. This TAA compliant unit is UL Listed in the US and Canada with a 150 lbs (68 kg) load capacity. The chassis measures 23.38" x 24.5" x 22" (59.4 cm x 62.2 cm x 55.9 cm) and has a usable depth of 20 in (50.8 cm) and a usable height of 17.5 in (44.5 cm).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 22 in (55.9 cm) |
| Height | 24.5 in (62.2 cm) |
| Product Weight | 75 lbs (34 kg) |
| Rack Units | 10 RU |
| Shipping Weight | 72 lbs (32.7 kg) |
| UL Load Capacity | 150 lbs (68 kg) |
| Usable Depth | 20 in (50.8 cm) |
| Usable Height | 17.5 in (44.5 cm) |
All other specifications 8
| Width | 23.38 in (59.4 cm) |
| Federal Ops Country of Origin | Mexico |
| Finish | Black Wrinkle Powder Coat |
| Front Door | Yes |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747057168 |
| Certifications | CSA StandardTAAUL Listed |
Resources
You'll need these with it
Lace Bar L-Shaped - 10 Pieces
LBP-1A$63.00
1 RU BlowerPanel, 100 CFM, 32dB
QBP-2$581.40
2 RU Select Series UPS Backup Power, 2200VA
UPS-S2200R$1,935.00
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
2 RU Select Series UPS Backup Power, 1500VA
UPS-S1500R$1,598.40
100 CFM Fan Panel, Anodized
QFP-2$252.90
10 RU Rackrail 10-32 for DWR/EWR Series
DWR-RR10$76.50
100 CFM Fan Panel, Textured & 220 - 240VAC
QTFP-2-119$243.00
3 RU Utility Rack Drawer
UD3$234.00
PDW Power Strip, 24 Outlet, 20A & 12 Circuit with J-Box
PDW-12X220J$1,318.50
NEXSYS™ 9 Outlet, 20 Amp Rackmount Power with Multi-Stage Surge Protection
PDX-920R$433.80
Questions about this part
How much weight can the EWR-10-22SD actually support?
This rack is UL Listed with a load capacity of 150 lbs (68 kg).
Will the EWR-10-22SD fit my equipment's depth?
The unit has a 22 in (55.9 cm) total depth and provides a usable depth of 20 in (50.8 cm).
What is the difference between the front door and the center section lock?
The center section can be secured with a padlock or key and is keyed differently from the optional front door for added security.
Is the EWR-10-22SD TAA compliant for government contracts?
Yes, this product is TAA compliant and is manufactured in Mexico.
Which document should I use for submittals?
You can refer to the EWR Series Wall Mount Rack A&E Specification Sheet (PDF) or the EWR Series 3 Part Specification (docx) for technical details.
