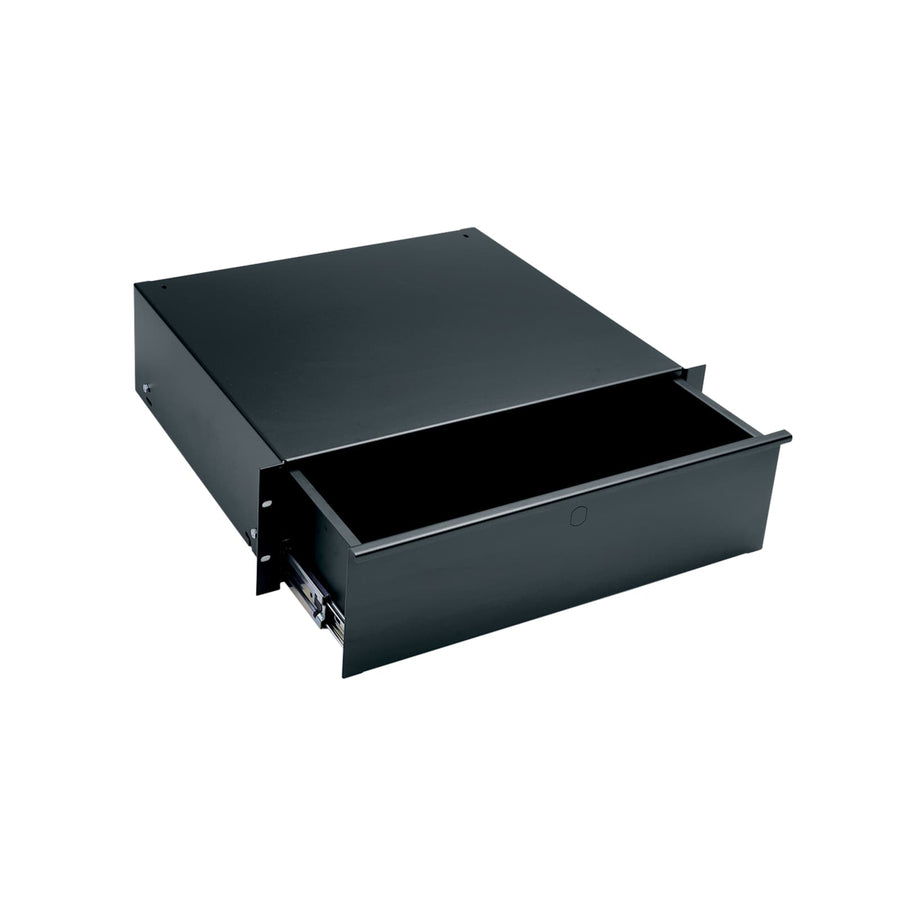

3 RU Utility Rack Drawer
3 RU rack storage drawer with full-extension ball bearing slides and 50 lbs weight capacity
The UD3 is a 3 RU utility rack drawer from Middle Atlantic designed to provide an economical and secure storage solution within a rack system. Constructed from steel with a black powder coat finish, this drawer features a fully enclosed design to keep rack contents secure. It utilizes full-extension ball bearing slides that extend 14 in (355.6 mm) to allow access to the interior, which measures 15-7/8 in (403.2 mm) wide by 14-1/2 in (368.3 mm) deep. This unit ships fully assembled and ready for immediate installation. For increased security, installers can choose to add a user-installed KYLK keylock or LATCH option. This model is TAA compliant and UL Listed.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 15.85 in (40.3 cm) |
| Height | 5.25 in (13.3 cm) |
| Rack Units | 3 RU |
| Shipping Weight | 18.5 lbs (8.4 kg) |
| UL Load Capacity | 50 lbs (22.7 kg) |
| Weight Capacity | 50 lbs (22.7 kg) |
| Width | 19 in (48.3 cm) |
| Mounting Points | 2 |
| UPC | 656747023002 |
| Certifications | UL Listed |
Resources
You'll need these with it
Questions about this part
What is the usable interior space of the UD3 drawer?
The drawer interior measures 15-7/8 in wide by 14-1/2 in deep, with the ball bearing slides providing 14 in of extension.
Can I secure the UD3 drawer with a key or latch?
Yes, this drawer accepts a user-installed KYLK keylock or a LATCH for added security.
What accessories are compatible with the UD3?
You can use the FI-3 3 RU Foam Drawer Insert, the DM series drawer mat, or the ACC-KEY for additional keys.
Is the UD3 drawer TAA compliant?
Yes, the UD3 is TAA compliant and is UL Listed with a 50 lbs (22.7 kg) weight capacity.
How do I find the technical drawings for this drawer?
Technical specification drawings and 3D CAD files are available in the Resources tab for submittals.
