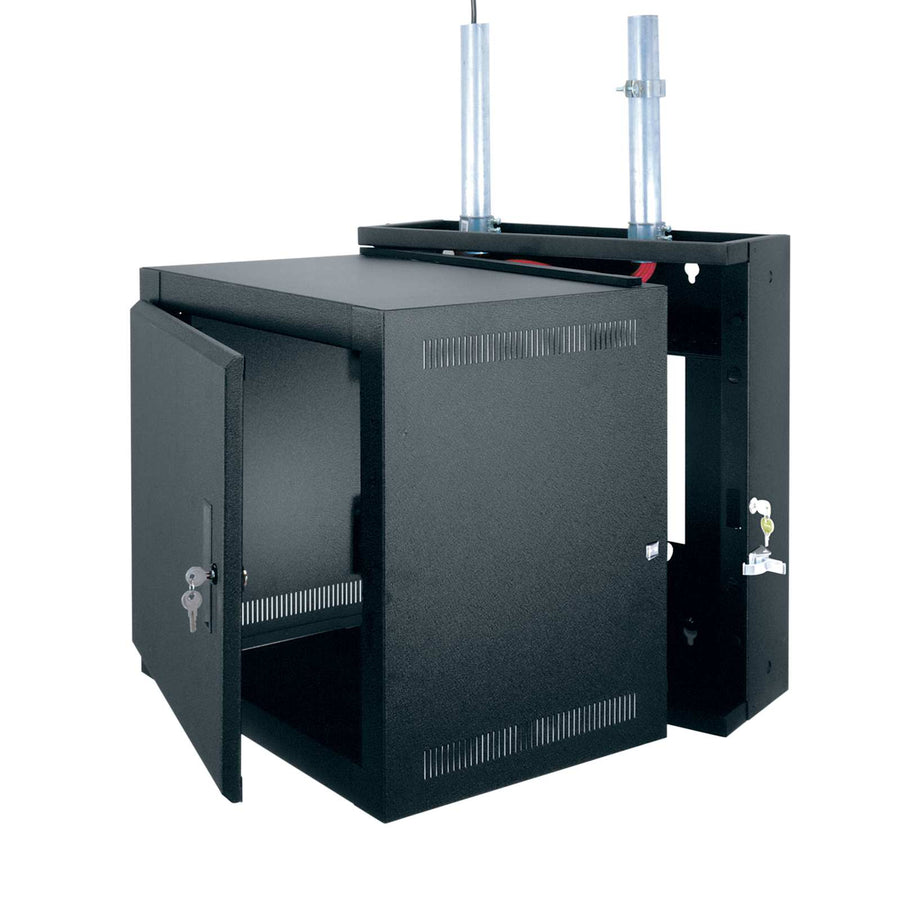

EWR Series Pivoting Wall Rack - EWR-10-17SD
10 RU pivoting wall rack with 17-inch depth, 150 lbs UL load capacity, and reversible center section
The Middle Atlantic EWR-10-17SD is a 10 RU pivoting wall rack designed for smaller systems requiring easy access in secured or unsecured environments. This 17 in (43.2 cm) deep cabinet features a fully welded construction to ensure long-term strength and stability. It utilizes a patented Tool Free Quick-Mount™ system for efficient center section mounting. The center section is reversible and can be secured with either a key or a padlock, while the center section is keyed differently from the optional front door for enhanced security. For thermal management, the enclosure is optimized for passive airflow. This unit ships fully assembled with a solid front door and includes standard adjustable 10-32 threaded rackrails. It is TAA compliant and UL Listed in the US and Canada with a 150 lbs (68 kg) weight capacity.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 17 in (43.2 cm) |
| Height | 24.5 in (62.2 cm) |
| Product Weight | 69 lbs (31.3 kg) |
| Rack Units | 10 RU |
| Shipping Weight | 66 lbs (29.9 kg) |
| UL Load Capacity | 150 lbs (68 kg) |
| Usable Depth | 15 in (38.1 cm) |
| Usable Height | 17.5 in (44.5 cm) |
All other specifications 8
| Width | 23.38 in (59.4 cm) |
| Federal Ops Country of Origin | Mexico |
| Finish | Black Wrinkle Powder Coat |
| Front Door | Yes |
| Rack Rail Type | 10-32 |
| TAA Compliant | Yes |
| UPC | 656747057144 |
| Certifications | CSA StandardTAAUL Listed |
Resources
You'll need these with it
1 RU Mounting Rackshelf
UTR1$58.50
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
10 RU Rackrail 10-32 for DWR/EWR Series
DWR-RR10$76.50
1 RU BlowerPanel, 100 CFM, 32dB & Anodized
QBP-2A$640.80
8 RU Fixed Security Cover With Hinged Plexi Door
SECL-8$171.00

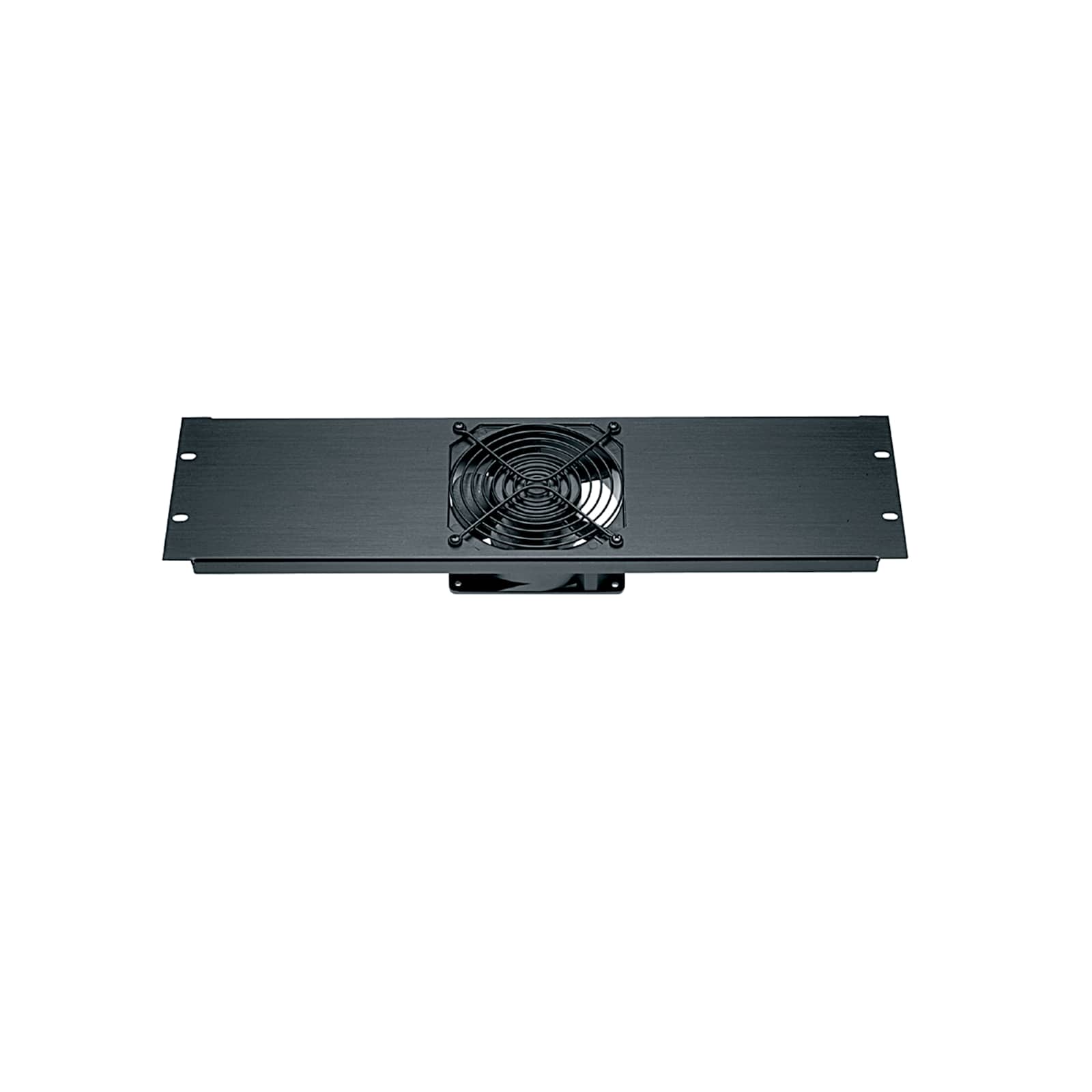

50 CFM Fan Panel, Anodized
QFP-1$214.20

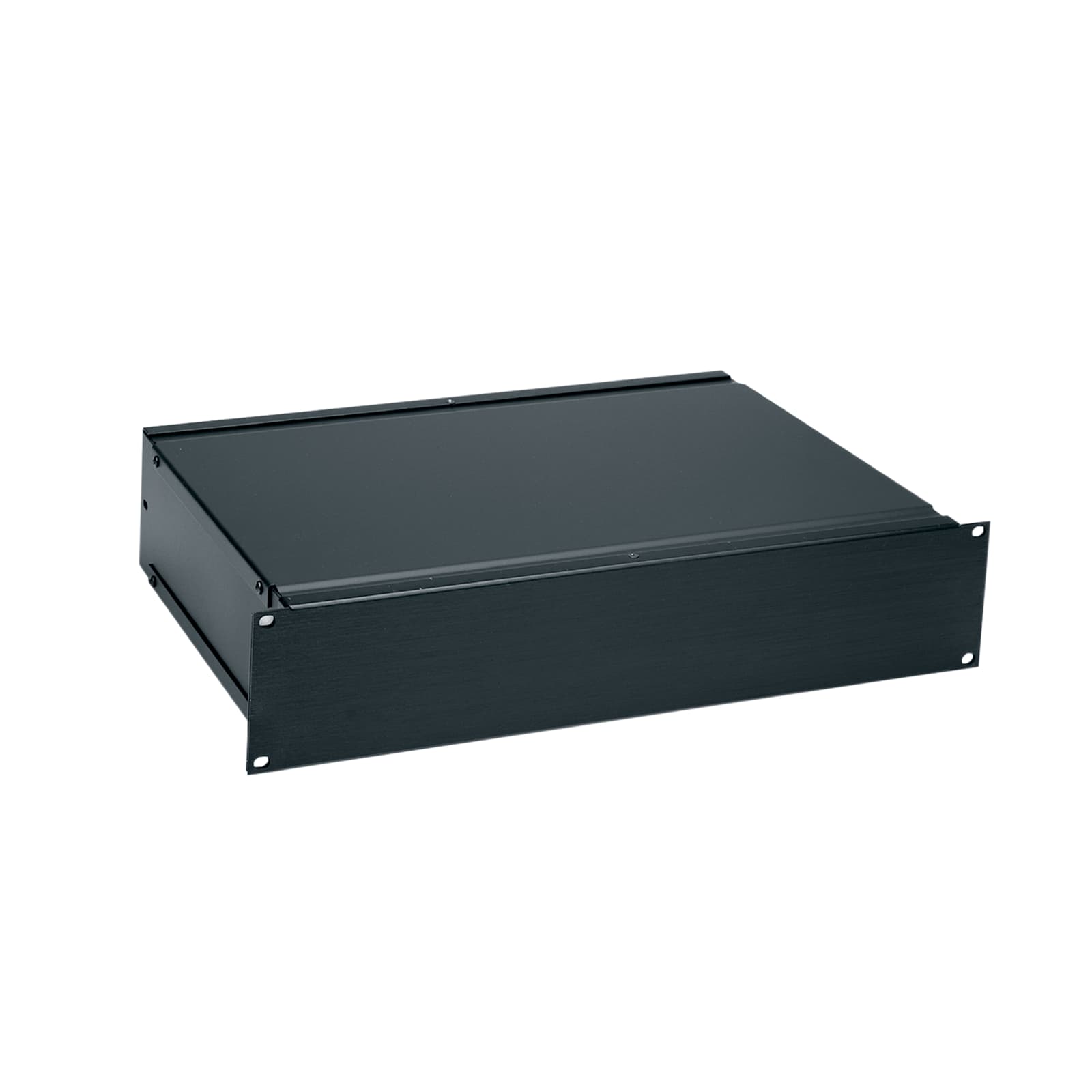

2 RU Rackmount Storage Chassis, 10 Inches Deep
CH2$198.00
PDW Power Strip, 24 Outlet, 20A & 12 Circuit with J-Box
PDW-12X220J$1,318.50
NEXSYS™ 9 Outlet, 20 Amp Rackmount Power with Multi-Stage Surge Protection
PDX-920R$433.80
3 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-3$69.30
2 RU Rack Vent Panel, Slotted with 20% Open Area
VTP-2$50.40
Questions about this part
Can I secure the center section of the EWR-10-17SD?
Yes, the center section swing is reversible and can be secured using either a key or a padlock. Note that the center section is keyed differently from the optional front door for added security.
What is the weight capacity for this wall rack?
The EWR-10-17SD is UL Listed in the US and Canada with a 150 lbs (68 kg) load capacity.
What tools are required for installation?
This unit features a patented Tool Free Quick-Mount™ system for mounting the center section, reducing the need for specialized hand tools during setup.
What is the usable space inside the cabinet?
The enclosure provides a usable height of 17.5 in (44.5 cm) and a usable depth of 15 in (38.1 cm).
Does this rack support standard rackrails?
Yes, the cabinet includes standard front adjustable 10-32 threaded rackrails for mounting equipment.
