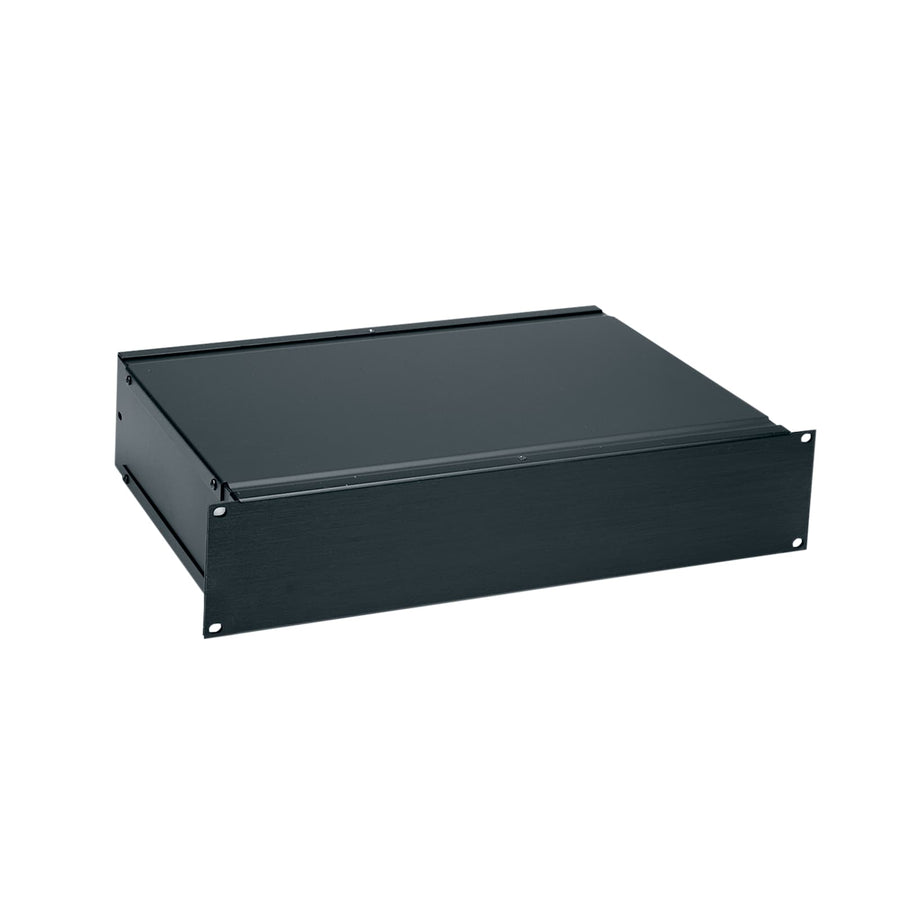

2 RU Rackmount Storage Chassis, 10 Inches Deep
2 RU rackmount chassis with 10 in depth and a brushed and anodized finish for custom component housing
The Middle Atlantic CH2 provides a professional enclosure for housing custom-built hardware within a standard 19 in (48.3 cm) rack. This 2 RU chassis is constructed with a robust 16-gauge all-steel body featuring a black powder coat on the main structure. To facilitate easy machining and provide improved interior access, the front and rear panels are made from aluminum. The front faceplate is finished with a black brushed and anodized texture, while the rear panel utilizes a black powder coat. This chassis is designed to be easily disassembled, making it an ideal solution for integrators who need to build, machine, or service custom electronics within a secure rack environment.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 10 in (25.4 cm) |
| Height | 3.5 in (8.9 cm) |
| Rack Units | 2 RU |
| Width | 19 in (48.3 cm) |
| Finish | Brushed and Anodized |
| Mounting Points | 2 |
| UPC | 656747003608 |
Resources
Questions about this part
What are the dimensions of the CH2 chassis?
The CH2 is 19 in (48.3 cm) wide, 3.5 in (8.9 cm) high, and has a 10 in (25.4 cm) depth.
Is this chassis suitable for custom component fabrication?
Yes, the aluminum front and rear panels are designed to be disassembled easily for machining and provide access to the interior.
What materials are used in the construction of the CH2?
The chassis features a 16-gauge all-steel body with aluminum front and rear panels.
How is the exterior of the CH2 finished?
The front faceplate features a black brushed and anodized finish, while the rear panel is finished in a black powder coat.
Can I find technical drawings for the CH2 for submittals?
Yes, technical specifications, 2D CAD drawings, and 3D CAD drawings (dwg) are available in the resources section.
