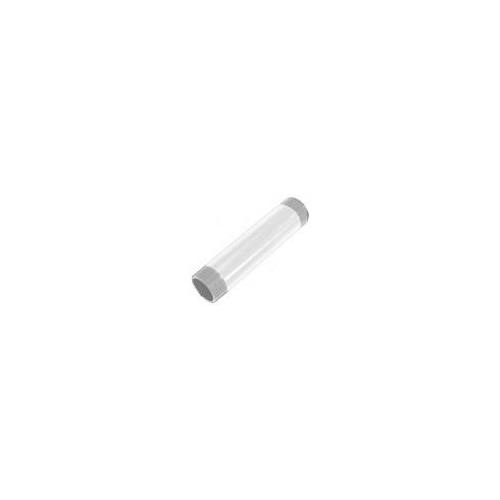

CMS006W, 6 Inch Fixed Extension Column, Pole
White 6 in (15.2 cm) fixed extension column for lowering projectors, featuring a 500 lbs weight capacity and TAA compliance
The Chief CMS006W is a 6 in (15.2 cm) fixed extension column designed to lower projectors to a specific required height. This Speed-Connect Fixed Extension Column features an aluminum construction for maximum strength and ease of installation. It consists of a 1.5" NPT column that is threaded on both ends for secure connectivity. To complete the assembly, this column can be used in combination with any Chief 1.5" NPT ceiling plate or other compatible accessories. This white finish model is TAA compliant and UL listed, making it suitable for various professional installation environments. The column provides a rigid, fixed 6 in (15.2 cm) extension to achieve precise projector positioning.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 1.9 in (4.8 cm) |
| Extension | 6 in (15.2 cm) |
| Height | 6 in (15.2 cm) |
| Overall Dimensions | 6.0" x 1.9" x 1.9" (152 x 48 x 48 mm) |
| Shipping Weight | 0.83 lbs (0.4 kg) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Width | 1.9 in (4.8 cm) |
| Accessory Type | Extension |
All other specifications 5
| Application | Pole |
| Color | White |
| TAA Compliant | Yes |
| UPC | 841872092638 |
| Certifications | TAAUL Listed |
Resources
You'll need these with it
Single Electric Outlet Coupler
CMA502$80.80
1.5 Inch to 1 Inch NPT Adapter
CMA151$29.60
Heavy Duty Swivel Adapter
CMA351$164.00
Dual Electric Outlet Coupler
CMA504$106.40
Electrical Storage Enclosure
CMA160$302.40
CMA270 Threaded Pipe Coupler
CMA270$31.20
CMA347, Vibration Isolating Coupler
CMA347$416.00
CMA270W Threaded Pipe Coupler
CMA270W$31.20
CMS261W Column Cut-Off Adapter
CMS261W$42.40
CMS261 Column Cut-Off Adapter
CMS261$42.40
CMA152, Threaded Pipe Coupler
CMA152$45.60
Decorative Ring, 1.9 Inch ID, CMS/CPA Fixed/Inner Adjustable Column
CMA640$17.60
Questions about this part
What do I need to buy to use this extension column?
This column must be used in combination with a Chief 1.5" NPT ceiling plate or other compatible accessories like the CMA151 adapter.
Will this extension column work with my existing Chief ceiling plate?
Yes, this 1.5" NPT column is designed for use with any Chief 1.5" NPT ceiling plate to lower your projector to the desired height.
Is the CMS006W suitable for government contracts?
Yes, this specific white model is TAA compliant and is UL listed.
Can I change the length of this column?
No, this is a fixed 6 in (15.2 cm) extension column; however, other lengths in the CMS series are available.
What documentation is available for submittals?
You can access the CMS Series Extension Column installation manual or the Revit Model for this product in the resources tab.
