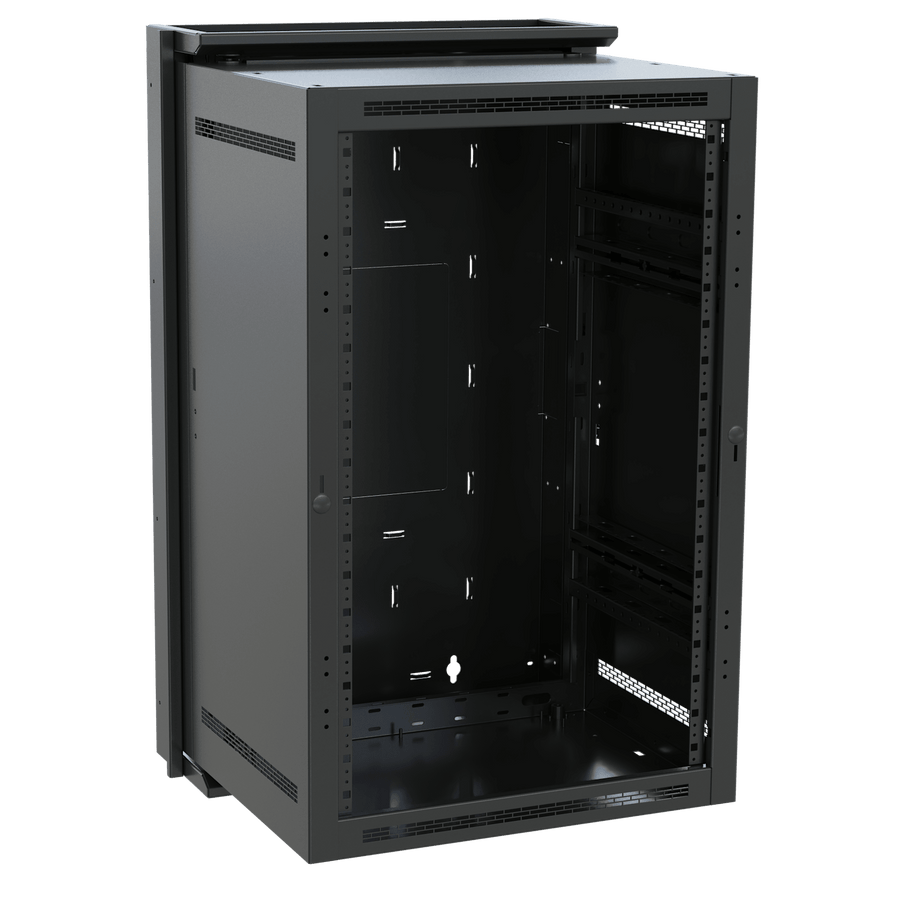

DWR Series Pivoting Wall Rack - DWR-18-17
18 RU pivoting wall rack, 17" depth, with reversible center section and seismic rating capability
The DWR-18-17 is an 18 RU pivoting wall rack designed to simplify servicing in tight installation environments. This 17 in (43.2 cm) deep unit features a robust welded steel construction with a black wrinkle powder coat finish. The center section is reversible and can be secured via key-lock or padlock, providing versatile security for sensitive equipment. To improve installation speed, the center section utilizes a Tool-Free Quick-Mount™ system for one-person mounting to the backpan on-site. The center section rear channel is designed to accommodate optional PDT and PD Slim PDUs to maximize usable space. This rack supports both active and passive cooling configurations. While the standard unit is non-vented, it is compatible with various front door options including plexi, solid, or vented styles. This model is TAA compliant and is manufactured in the USA.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 17 in (43.2 cm) |
| Height | 38.56 in (97.9 cm) |
| Product Weight | 59.15 lbs (26.8 kg) |
| Rack Units | 18 RU |
| Shipping Weight | 95.65 lbs (43.4 kg) |
| UL Load Capacity | 250 lbs (113.4 kg) |
| Usable Depth | 15 in (38.1 cm) |
| Usable Height | 31.5 in (80 cm) |
All other specifications 15
| Width | 23.4 in (59.4 cm) |
| Available Internationally | Yes |
| Color | Black |
| Federal Ops Country of Origin | USA |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Front Door | No |
| Material | Steel |
| Rack Rail Type | Forward Rackrail |
| Seismic Rated | Yes |
| TAA Compliant | Yes |
| UPC | 656747005374 |
| Certifications | CSA StandardTAAUL Listed |
| Patent Number | 7278183 |
| Seismic Load Capacity | 155 lbs (70.3 kg) |
Resources
You'll need these with it
18 RU Plexi Front Door for DWR and ERK Racks
PFD-18$486.90
18 RU Vented Front Door for DWR and ERK Racks, 64% Open
LVFD-18$501.30
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
18 RU Solid Front Door for DWR and ERK Racks
FD-18$281.70
18 RU Vented Front Door for DWR and ERK Racks
VFD-18$443.70
Vent Blocker Kit for DWR 17 Inch Deep
VBK-D17$38.70
NEXSYS™ 6 Outlet, 20 Amp Compact Power with Series Surge Protection
PDX-620C-SP$766.80
NEXSYS™ 6 Outlet, 20 Amp Compact Power with Multi-Stage Surge Protection
PDX-620C$443.70
NEXSYS™ 6 Outlet, 15 Amp Compact Power with Series Surge Protection
PDX-615C-SP$666.00
NEXSYS™ 6 Outlet, 15 Amp Compact Power with Multi-Stage Surge Protection
PDX-615C$403.20
NEXSYS™ 2 Outlet, 20 Amp Compact Power with Series Surge Protection
PDX-220C-SP$484.20

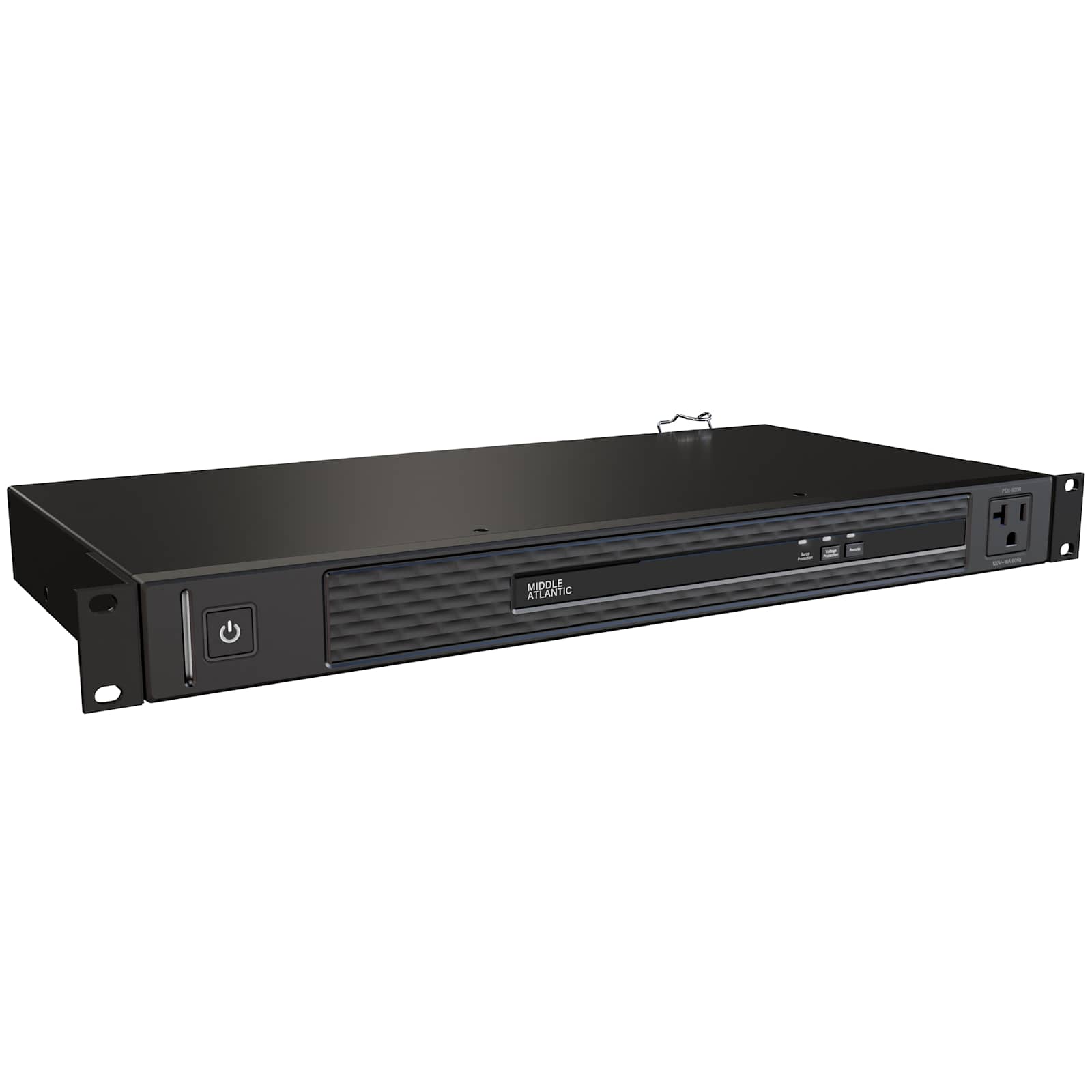

NEXSYS™ 9 Outlet, 20 Amp Rackmount Power with Multi-Stage Surge Protection
PDX-920R$433.80
Questions about this part
Will this rack fit my equipment depth requirements?
The DWR-18-17 has a 17 in (43.2 cm) total depth with a 15 in (38.1 cm) usable depth for your hardware.
Can I add a front door to the DWR-18-17?
Yes, you can add a 18 RU Plexi front door (PFD-18), a solid front door (FD-18), or various vented front door options like the VFD-18 or LVFD-18.
What is the weight capacity of the DWR-18-17?
This rack has a UL load capacity of 250 lbs (113.4 kg) and a seismic load capacity of 155 lbs (70.3 kg) when used with the DWRSR-ZL latch.
Does this rack require additional accessories for PDU installation?
The center section rear channel is designed to accommodate PD Slim PDUs or PDT models to help save space within the 18 RU frame.
Is the DWR-18-17 TAA compliant for government contracts?
Yes, this product is TAA compliant and is manufactured in the USA.
