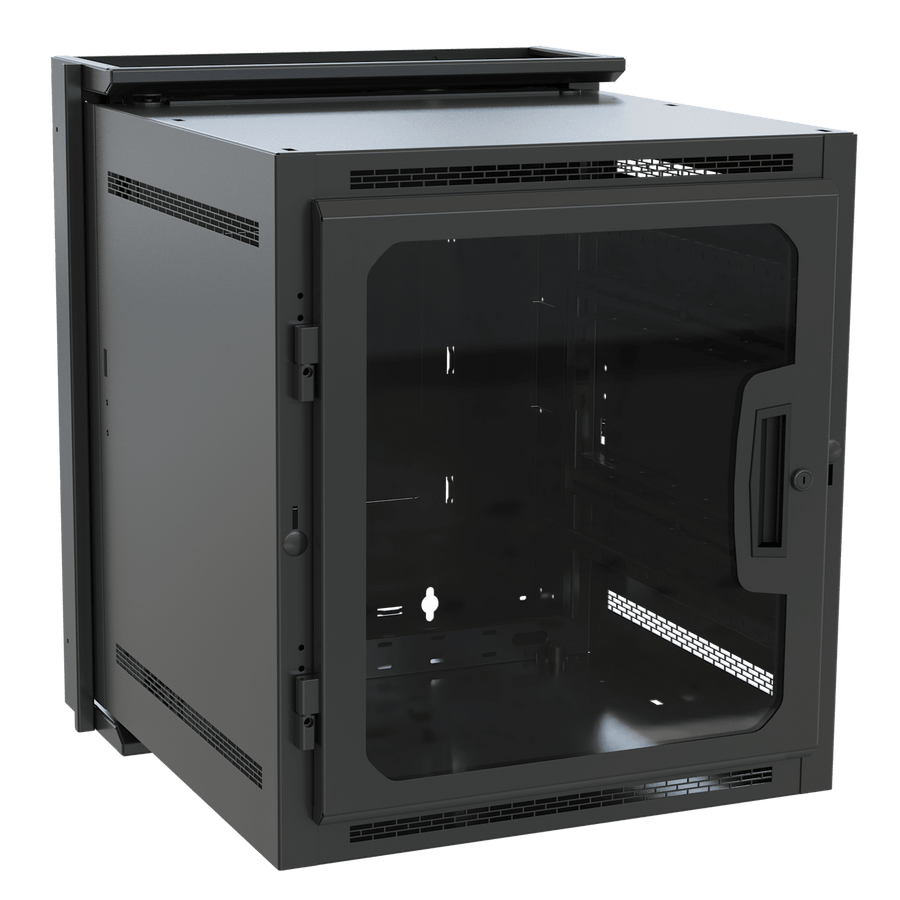

DWR Series Pivoting Wall Rack - DWR-12-26PD
12 RU pivoting wall rack, 26" deep, with plexi door and seismic rating capability
The Middle Atlantic DWR-12-26PD is a 12 RU pivoting wall rack designed for high-density equipment installations that require easier access for servicing. This 26 in (66 cm) deep rack provides a usable depth of 24 in (61 cm) and a usable height of 21 in (53.3 cm) within its steel construction. The center section features a reversible swing and can be secured with either a key or a padlock, while the front plexi door is keyed differently for an added layer of security. This unit is TAA compliant and features a black wrinkle powder coat finish. For seismic applications, this rack is seismic rated when used with the DWRSR-ZL latch, offering a seismic load capacity of 155 lbs (70.3 kg) and a UL load capacity of 200 lbs (90.7 kg). The design supports both active and passive cooling to manage thermal loads in various environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 26 in (66 cm) |
| Height | 28.06 in (71.3 cm) |
| Product Weight | 54.55 lbs (24.7 kg) |
| Rack Units | 12 RU |
| Shipping Weight | 91.05 lbs (41.3 kg) |
| UL Load Capacity | 200 lbs (90.7 kg) |
| Usable Depth | 24 in (61 cm) |
| Usable Height | 21 in (53.3 cm) |
All other specifications 16
| Width | 23.4 in (59.4 cm) |
| Available Internationally | Yes |
| Color | Black |
| Door Type | Plexi |
| Federal Ops Country of Origin | Mexico |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Front Door | Yes |
| Material | Steel |
| Rack Rail Type | Forward Rackrail |
| Seismic Rated | Yes |
| TAA Compliant | Yes |
| UPC | 656747060076 |
| Certifications | CSA StandardTAA |
| Patent Number | 7278183 |
| Seismic Load Capacity | 155 lbs (70.3 kg) |
Resources
You'll need these with it
440 CFM Fan Kit for DWR or SR Rack, 26 or 32 Inches Deep
DWRSR-6-FK$357.30
138 CFM Fan Kit for SR and DWR Racks
DWRSR-138FT-K-EU$342.90
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A
PD-815SC-NS$188.10
1 RU BlowerPanel, 100 CFM, 32dB
QBP-2$581.40
2 RU Select Series UPS Backup Power, 1500VA
UPS-S1500R$1,598.40
2 RU Utility Rackshelf, 14.55 Inches Deep
U2$95.40
1 RU Select Series UPS Backup Power, 1000VA
UPS-S1000R$1,377.00
12 RU Rackrail 10-32 for DWR/EWR Series
DWR-RR12$81.00
120V Fan 6 Inch, 220 CFM
FAN-6$172.80
NEXSYS™ 6 Outlet, 20 Amp Compact Power with Series Surge Protection
PDX-620C-SP$766.80
NEXSYS™ 6 Outlet, 20 Amp Compact Power with Multi-Stage Surge Protection
PDX-620C$443.70
Questions about this part
Will the DWR-12-26PD fit my equipment depth?
This rack has a total depth of 26 in (66 cm) and provides a usable depth of 24 in (61 cm) for your equipment.
What is required to make this rack seismic rated?
To achieve its seismic rating and a seismic load capacity of 155 lbs (70.3 kg), you must use the DWRSR-ZL latch.
Can I add cooling to this rack?
Yes, the DWR-12-26PD is designed to support both active and passive cooling; compatible fan kits include the DWRSR-6-FK and DWRSR-138FT-K-EU.
What are the load capacities for this rack?
The rack has a UL load capacity of 200 lbs (90.7 kg) and a seismic load capacity of 155 lbs (70.3 kg) when properly latched.
Is the center section of the DWR-12-26PD secure?
The center section swing is reversible and can be secured with either a key or a padlock, with keying distinct from the front door.
