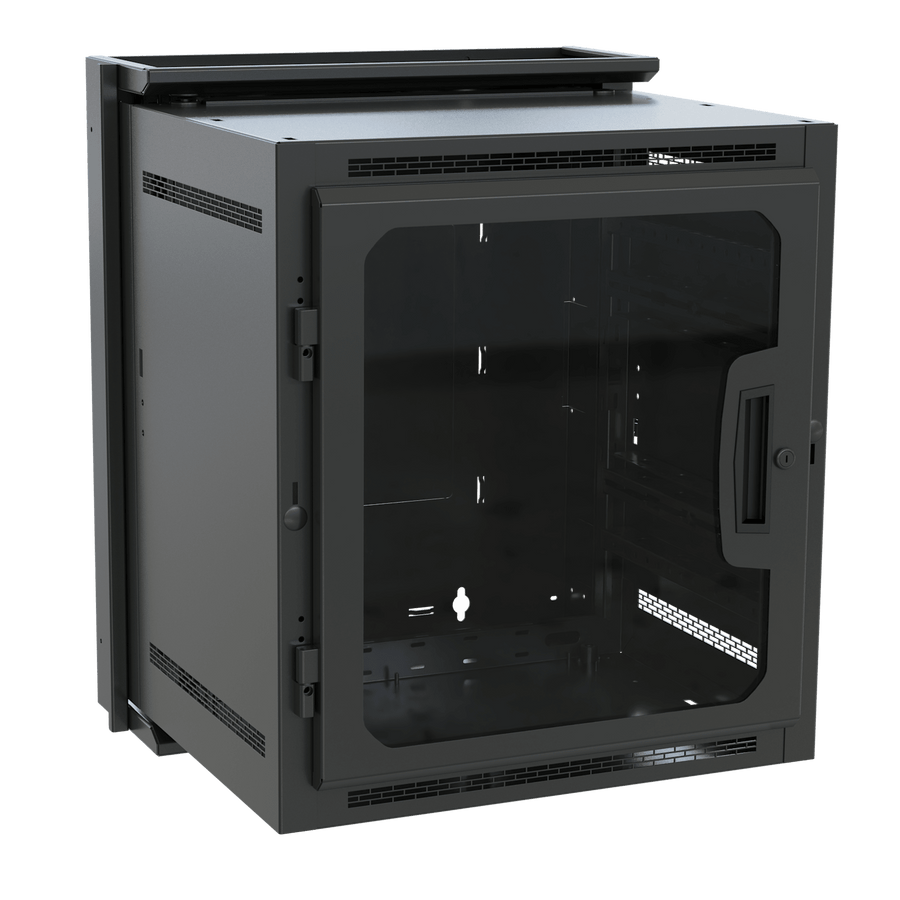

DWR Series Pivoting Wall Rack - DWR-12-22PD
12RU pivoting wall rack with 22" depth, black wrinkle finish, and factory-installed plexi door
The Middle Atlantic DWR-12-22PD is a 12RU pivoting wall rack designed for high-density equipment integration in space-constrained environments. This 22 in (55.9 cm) deep rack features a black wrinkle powder coat finish and a factory-installed plexi door. For installers requiring rapid setup, the Quick-Mount™ system allows for a one-person installation of the center section to the backpan on-site. This unit is designed for both active and passive cooling to support diverse hardware configurations. For enhanced security, the center section swing is reversible and can be secured with a key or a padlock, with the center section keyed differently from the optional front door. The DWR-12-22PD is TAA compliant and features a robust welded steel construction. When utilized with a DWRSR-ZL latch, the rack is seismic rated. For cable management, this series is Lever Lock™ compatible, accepting patented tool-free accessories in the backpan when used with the LL-DWR/SR-BP accessory.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 22 in (55.9 cm) |
| Height | 28.06 in (71.3 cm) |
| Product Weight | 53.5 lbs (24.3 kg) |
| Rack Units | 12 RU |
| Shipping Weight | 90 lbs (40.8 kg) |
| UL Load Capacity | 200 lbs (90.7 kg) |
| Usable Depth | 20 in (50.8 cm) |
| Usable Height | 21 in (53.3 cm) |
All other specifications 16
| Width | 23.4 in (59.4 cm) |
| Available Internationally | Yes |
| Color | Black |
| Door Type | Plexi |
| Federal Ops Country of Origin | Mexico |
| Finish | Black Wrinkle Powder Coat |
| Forward Compatible | Yes |
| Front Door | Yes |
| Material | Steel |
| Rack Rail Type | Forward Rackrail |
| Seismic Rated | Yes |
| TAA Compliant | Yes |
| UPC | 656747105234 |
| Certifications | CSA StandardTAA |
| Patent Number | 7278183 |
| Seismic Load Capacity | 155 lbs (70.3 kg) |
Resources
You'll need these with it
1 RU Mounting Rackshelf
UTR1$58.50
138 CFM Fan Kit for SR and DWR Racks
DWRSR-138FT-K-EU$342.90
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30
190 CFM Fan Kit for DWR or SR Rack, 17 or 22 Inches Deep
DWRSR-4-FK$262.80
100 CFM Fan Panel, Textured
QTFP-2$243.00
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A
PD-815SC-NS$188.10
4 1/2 Inch DC Fan Kit, 138 CFM with Thermo Controller
FAN2-DC-FC$350.10
PD Slim High Density Vertical Power Strip, 8 Outlet, 15A, Basic Surge Protection - 10 ft Cord
PD-815SC$210.60
Rackmount Power, 9 Outlet, 15A, Basic Surge Protection
PD-915R-PL$264.60
1 RU BlowerPanel, 100 CFM, 32dB, Anodized & 220-240VAC
IQBP-2A$620.10
115V Fan 4 1/2 Inch, 50 CFM at 30dBA
QFAN$136.80
NEXSYS™ 6 Outlet, 20 Amp Compact Power with Series Surge Protection
PDX-620C-SP$766.80
Questions about this part
Will the DWR-12-22PD fit my equipment depth requirements?
This rack has a total depth of 22 in (55.9 cm) and provides 20 in (50.8 cm) of usable depth for your hardware.
What accessories do I need to use the Lever Lock system with this rack?
To use the patented Lever Lock™ tool-free internal device and cable management system, you must use the LL-DWR/SR-BP accessory in the backpan.
Is the DWR-12-22PD seismic rated for installation?
Yes, the rack is seismic rated and provides a seismic load capacity of 155 lbs (70.3 kg) when used with the DWRSR-ZL latch.
How can I increase the cooling efficiency of this rack?
The rack is designed for both active and passive cooling; you can add fan kits like the DWRSR-4-FK or the 138 CFM DWRSR-138FT-K-EU.
Can this rack be mounted in a corner or side-by-side?
Yes, an optional minimum-clearance latch is available that allows for interior corner mounting or side-by-side installation to save space.
