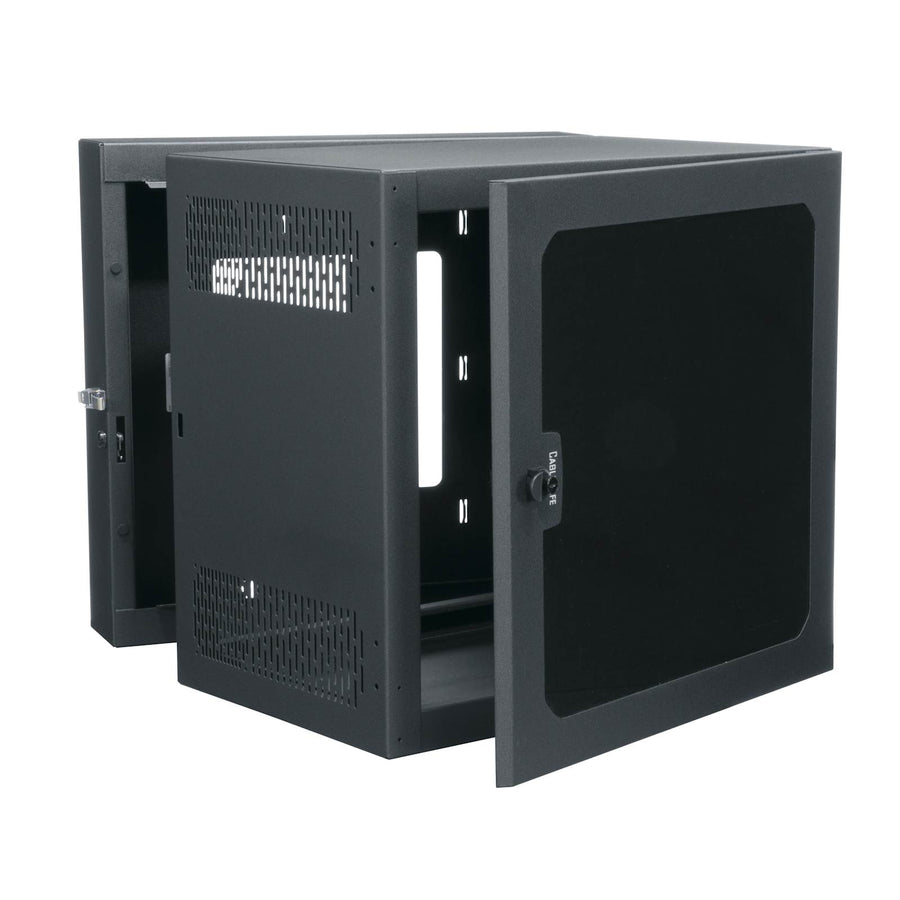

CWR Series Data Swing Wall Rack CWR-12-32PD
12 RU data swing wall rack with 32 in depth, locking plexiglass door, and 26 in width for structured cabling
The Middle Atlantic CWR-12-32PD is a 12 RU data swing wall rack specifically designed to support structured cabling and voice/data equipment in environments where floor or wall space is limited. This welded steel enclosure provides a 26 in width, offering additional space to manage cabling and patching. It features a locking/latching plexiglass front door for security, and the door can be easily reversed to accommodate either left or right-hand swing requirements during installation. A standout feature is the locking swing-open center section, which allows installers to access both the front and rear of the equipment without removing the unit from the wall. The rack utilizes 12-24 threaded rackrails and includes an adjustable wide-face rackrail. For thermal management, the design is engineered for passive cooling, though a CWR-FKIT 95 CFM fan kit is available for active airflow. This TAA compliant, UL listed, and CSA standard rack has a usable height of 21 in (53.3 cm) and a usable depth of 30 in (76.2 cm). It has a UL load capacity of 200 lbs (90.7 kg).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Depth | 32 in (81.3 cm) |
| Height | 24.88 in (63.2 cm) |
| Panel Width | 19 in (48.3 cm) |
| Product Weight | 95 lbs (43.1 kg) |
| Rack Units | 12 RU |
| Shipping Weight | 136 lbs (61.7 kg) |
| UL Load Capacity | 200 lbs (90.7 kg) |
| Usable Depth | 30 in (76.2 cm) |
All other specifications 11
| Usable Height | 21 in (53.3 cm) |
| Width | 26 in (66 cm) |
| Available Internationally | Yes |
| Door Type | Plexi Door |
| Federal Ops Country of Origin | Mexico |
| Material | Steel |
| Rack Rail Type | 12-24 |
| Rack Type | Wall |
| TAA Compliant | Yes |
| UPC | 656747112911 |
| Certifications | CSA StandardGREENGUARDTAAUL Listed |
Resources
You'll need these with it
2 RU Utility Rackshelf, 15.4 Inches Deep, Vented
U2V$96.30
Select Series PDU with RackLink™, 2 Outlet
RLNK-215$429.30

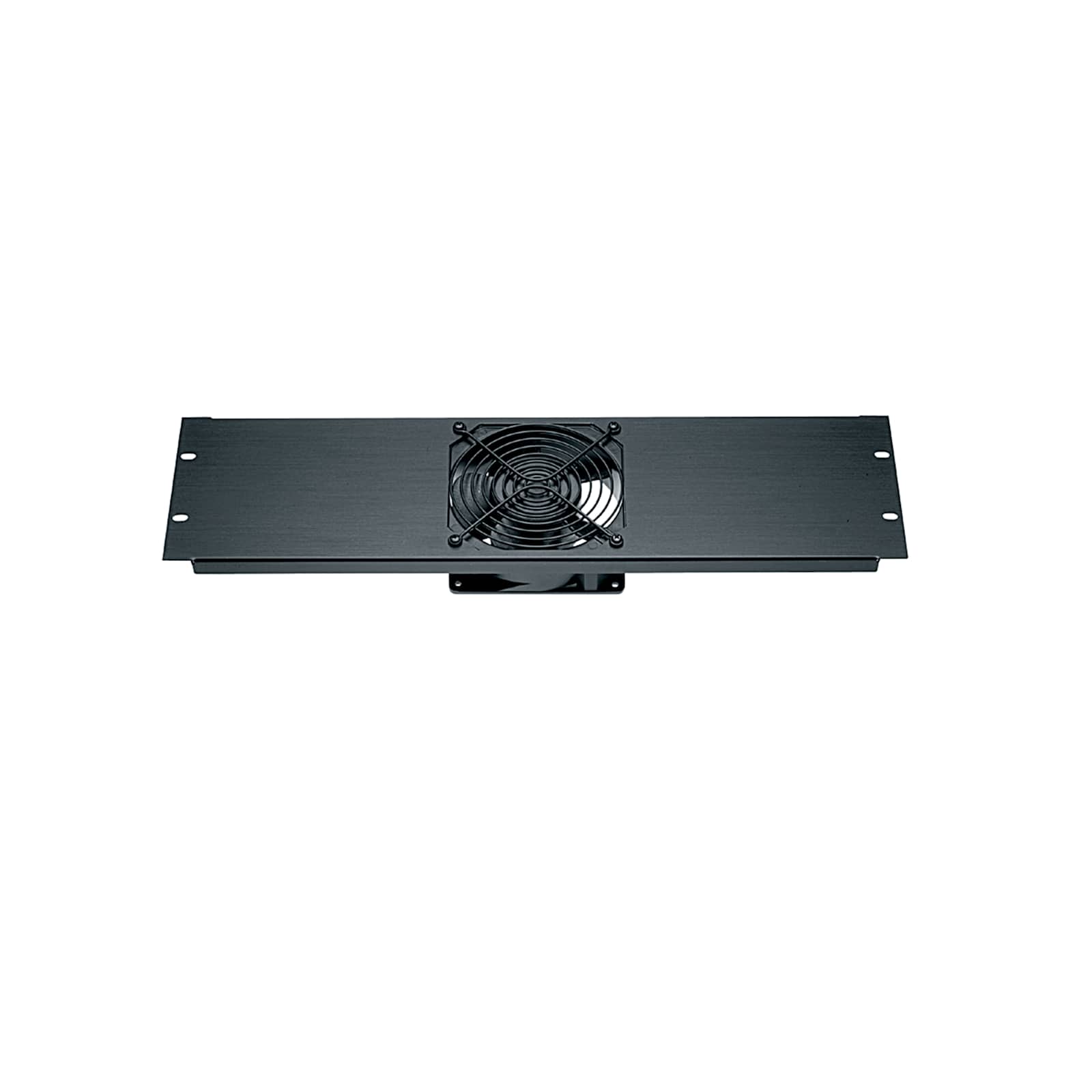

50 CFM Fan Panel, Textured
QTFP-1$201.60

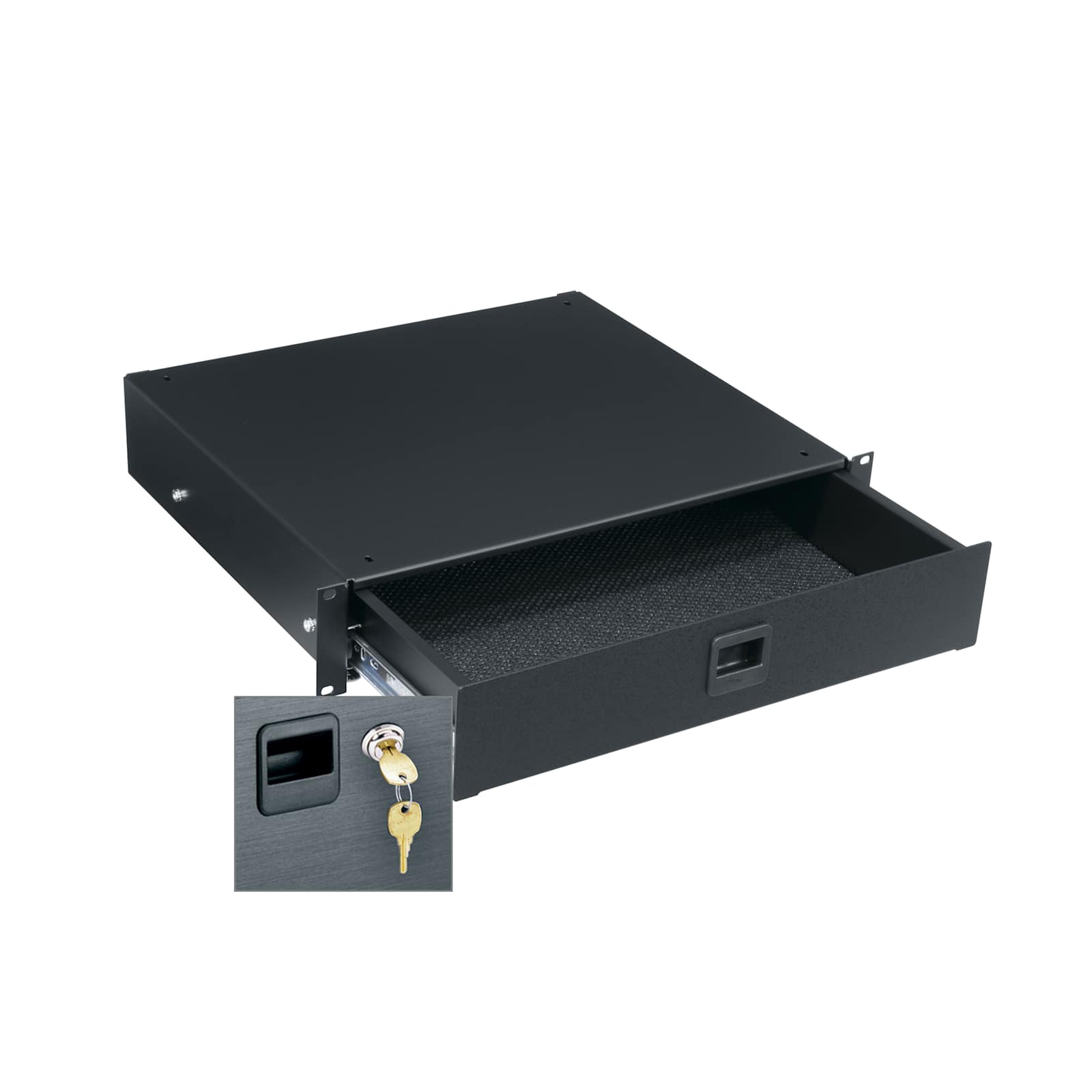

2 RU Rackmount Drawer, Textured Face with Lock
TD2LK$332.10
12 RU Rackrail 12-24 for CWR Series
CWR-RR12$103.50
Filter Kit for CWR and VWM Series
FILTER-R-4-2K$154.56

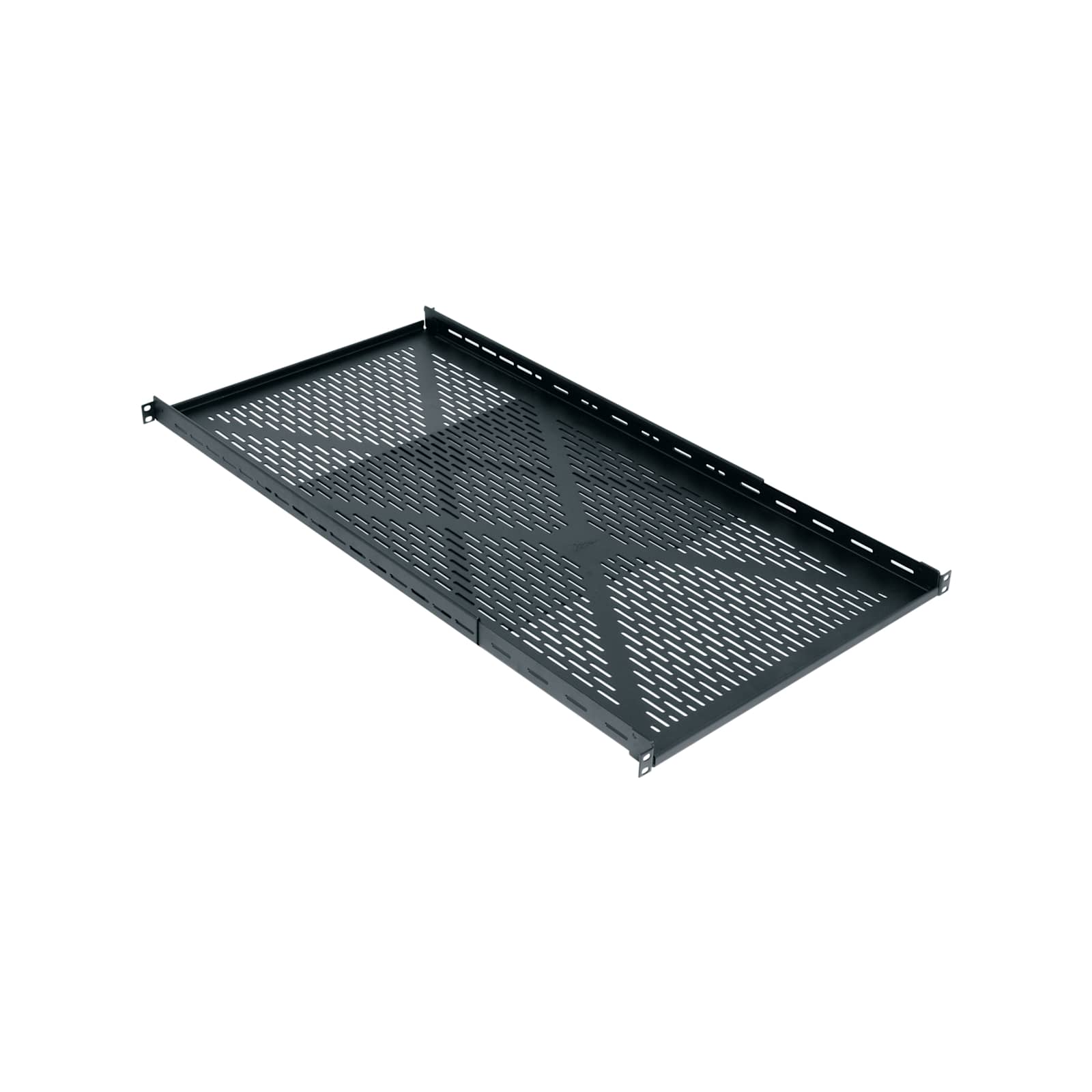

1 RU Adjustable Rackshelf 27 Inches to 44 Inches Deep
VSA-2744$256.50
2 RU Sliding Rackshelf, 28 Inches Deep
SSHD-28$450.90
High Definition Rackmount Consoles with KVM
RM-KB-LCD17KVMHD$5,247.00
High Definition Rackmount Console
RM-KB-LCD17HD$4,437.90
2 RU Universal Mounting Drawer, 28 Inches Deep
D2-UMS-28$817.20
95 CFM Fan Kit for CWR Series Rack
CWR-FKIT$286.20
Questions about this part
Will the CWR-12-32PD fit my 12 RU equipment?
Yes, this 12 RU rack provides a usable height of 21 in (53.3 cm) and a usable depth of 30 in (76.2 cm) for your hardware.
What accessories are needed for cable management or cooling?
You can add a CWR-FKIT fan kit for active cooling or use HCM-1DV horizontal cable managers with D-Rings for organized patching.
How much weight can this wall rack support?
The CWR-12-32PD has a UL load capacity of 200 lbs (90.7 kg) for secure installation.
Can I access the back of the equipment once it is mounted?
Yes, the locking swing-open center section allows for full front and rear access to the mounted components.
What is the difference between this and other CWR series models?
This specific SKU is a 12 RU model; other models in the CWR series offer different rack unit heights such as 18 RU or 26 RU.
