95 CFM Fan Kit for CWR Series Rack
Active thermal management kit for CWR Series Wall Racks, displacing 95 CFM of free air with 2 fans

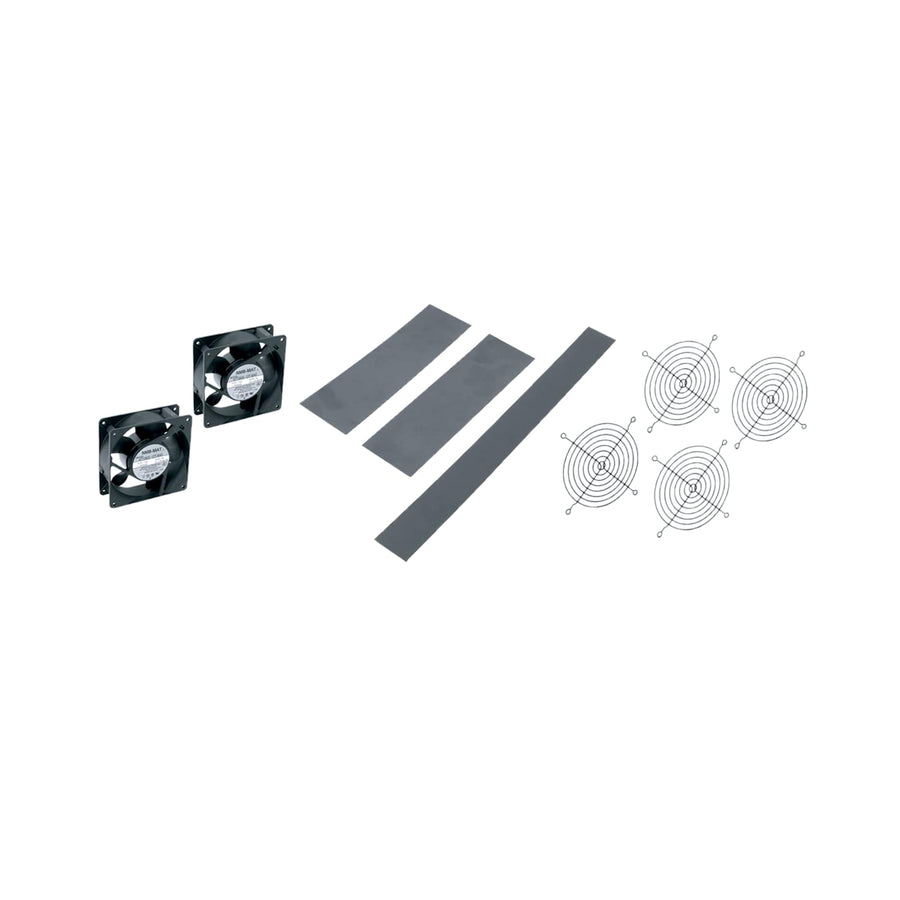

The Middle Atlantic CWR-FKIT is an active component kit designed specifically for CWR Series Wall Racks to manage heat buildup within the enclosure. This kit includes 2 fans, each measuring 4.5", which together displace 95 CFM of free air. To ensure a complete installation, the kit provides the necessary mounting hardware and vent blockers alongside a power cord. The fans operate on 120 VAC. For automated thermal management, this kit is compatible with the FC-2-215-1CA Stand Alone Thermostatic Fan Controller, or the FC-4-1CA Thermostatic Fan Controller for 4-fan configurations. Installers can also utilize the FANCORD-2X1 Multiple Fan Power Cord if additional power distribution is required. The physical dimensions of the kit are 4.68 in (11.9 cm) in both height and width, with a depth of 1.5 in (3.8 cm).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| CFM | 95 |
| Depth | 1.5 in (3.8 cm) |
| Height | 4.68 in (11.9 cm) |
| Shipping Weight | 4.9 lbs (2.2 kg) |
| Volts AC | 120 VAC |
| Width | 4.68 in (11.9 cm) |
| Available Internationally | No |
| Base Series | CWR |
| Component Type | Active |
| Manufacturer | Middle Atlantic |
| Power Type | AC |
| UPC | 656747113277 |
Resources
You'll need these with it
Questions about this part
What is required to control these fans automatically?
You can integrate the CWR-FKIT with the FC-2-215-1CA Stand Alone Thermostatic Fan Controller or the FC-4-1CA Thermostatic Fan Controller.
Will this kit fit into my CWR Series Wall Rack?
Yes, this kit is specifically designed as a fan kit for the CWR Series of Middle Atlantic Wall Racks.
What is included in the CWR-FKIT package?
The kit comes with two 4.5" fans, vent blockers, the required mounting hardware, and a power cord.
How much airflow does this kit provide?
The two fans included in this kit displace a total of 95 CFM of free air.
Which power cord is used for the fan assembly?
The kit includes a power cord and is also compatible with the FANCORD-2X1 Multiple Fan Power Cord.
