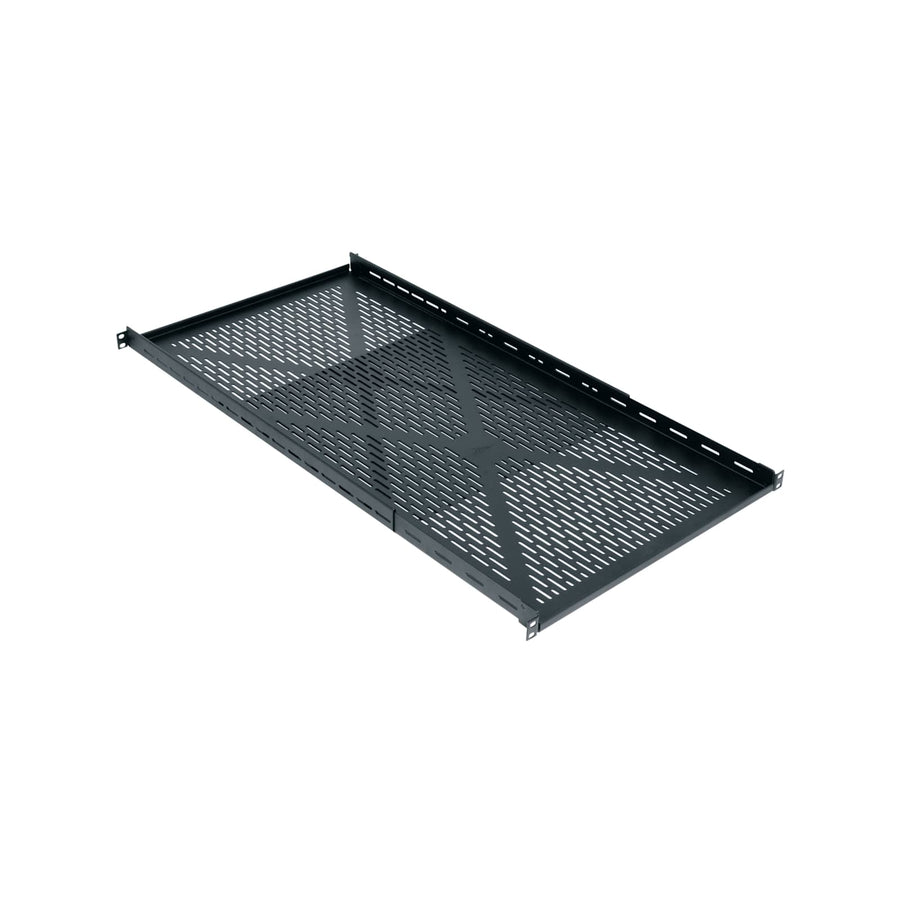

1 RU Adjustable Rackshelf 27 Inches to 44 Inches Deep
Heavy-duty 1 RU telescoping rackshelf for deep components, featuring a 400 lbs capacity and 27" to 44" adjustable depth
The VSA-2744 is a heavy-duty 1 RU telescoping rackshelf designed to accommodate exceptionally deep components. Unlike standard adjustable shelves, this entire VSA series shelf telescopes to reach the rear rail, providing a usable depth range from 27" to 44". Constructed from hemmed 16-gauge steel with a durable black powder coat finish, this 19" wide shelf is built for stability and longevity. It features a fully vented design to ensure superior cooling for heat-sensitive gear and includes multiple tie points to assist with organized cable management. With a massive 400 lbs (181.4 kg) weight capacity, it is an ideal solution for heavy, deep-chassis equipment in professional rack environments. The 4-point mounting system allows for precise depth adjustment to meet specific installation requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 27.3 in (69.3 cm) |
| Height | 1.5 in (3.8 cm) |
| Mounting Depth Max | 44 in (111.8 cm) |
| Mounting Depth Min | 27 in |
| Rack Units | 1 RU |
| Shipping Weight | 20.7 lbs (9.4 kg) |
| Weight Capacity | 400 lbs (181.4 kg) |
| Width | 19 in (48.3 cm) |
| Mounting Points | 4 |
| TAA Compliant | No |
| UPC | 656747094958 |
Resources
You'll need these with it
50 CFM Component Cooler with Platform
COMP-COOL50P$474.30
50 CFM Component Cooler, 220 - 240VAC
ICOMP-COOL50$379.80
50 CFM Component Cooler
COMP-COOL50$351.90
50 CFM Component Cooler with Platform, 220 - 240VAC
ICOMP-COOL50PDiscontinued
8 CFM Component Cooler, 220 - 240VAC - 3 Piece
ICOMP-COOL-3Discontinued
8 CFM Component Cooler, 220 - 240VAC
ICOMP-COOLDiscontinued
8 CFM Component Cooler - 3 Piece
COMP-COOL-3Discontinued
Questions about this part
What is the depth range for the VSA-2744?
The VSA-2744 is a telescoping shelf with a mounting depth range of 27" to 44" (685.8 to 1118 mm).
How much weight can this VSA-2744 shelf support?
This heavy-duty 1 RU shelf has a rated weight capacity of 400 lbs (181.4 kg).
What are the dimensions of the VSA-2744?
The shelf is 19" (48.3 cm) wide, 1.5" (3.8 cm) high, and has a depth of 27.3" (69.3 cm).
Can I add active cooling to this shelf?
Yes, the VSA-2744 is compatible with various Middle Atlantic cooling solutions, including the COMP-COOL50 and ICOMP-COOL50 series.
Which document should I use for submittals?
For technical submittals, you can refer to the VSA Series Adjustable Telescoping Rackshelf CAD Technical Specification Drawings.
